SFI System - Service Specifications
>>
SFI System
>>
Torque Specification
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Torque Specification

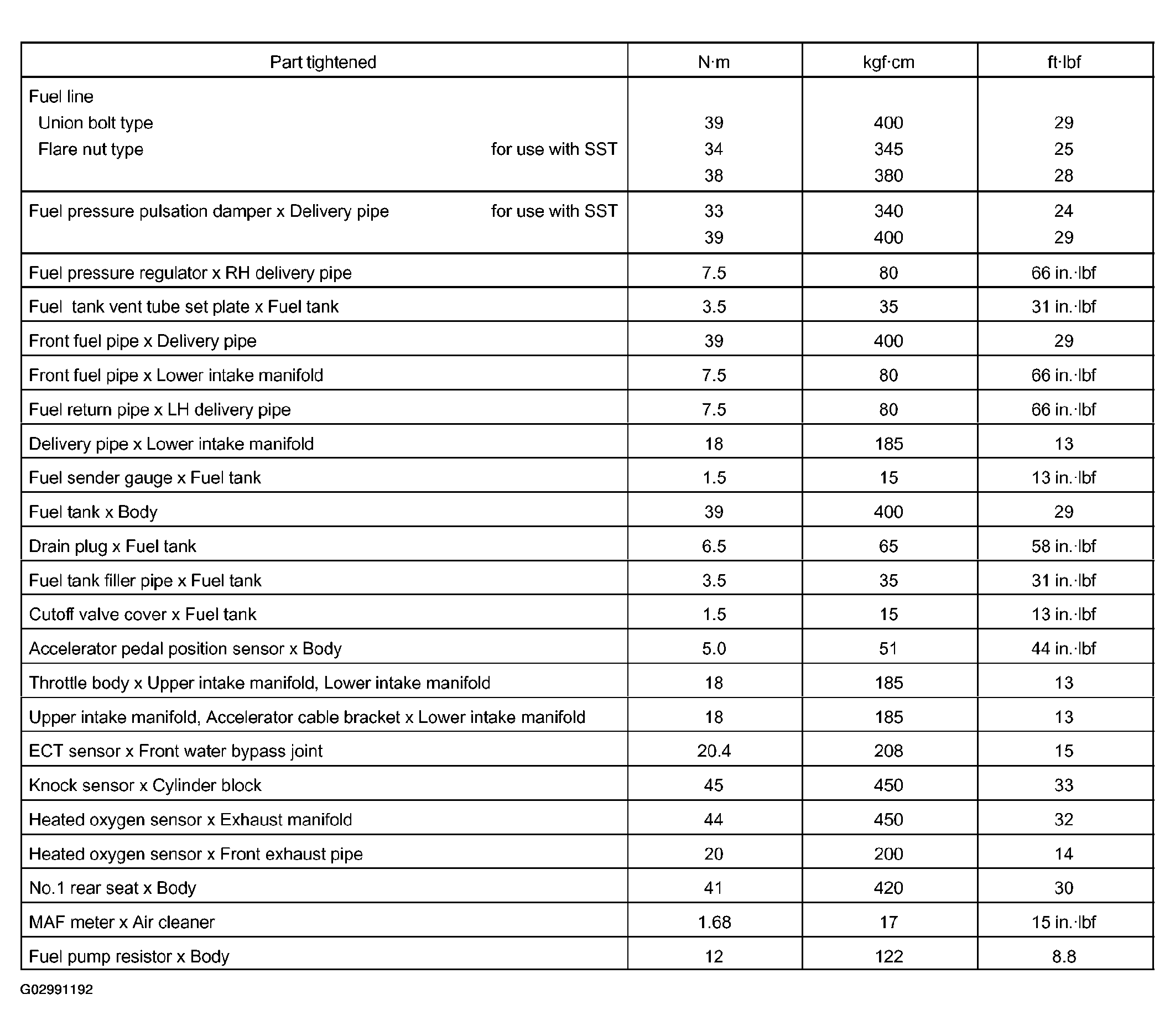

Fig 1: TORQUE SPECIFICATION
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
