Diagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODE CHART

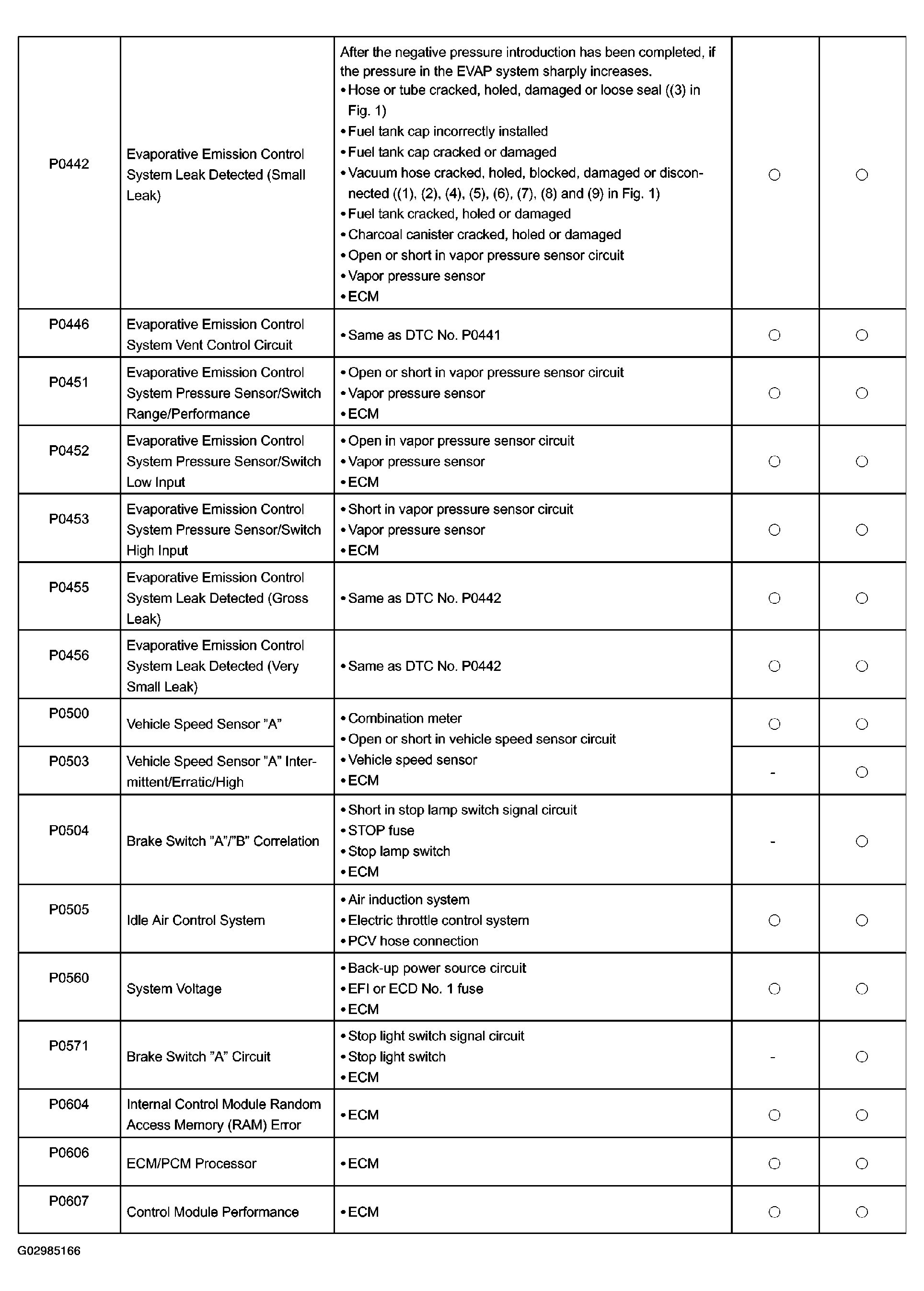

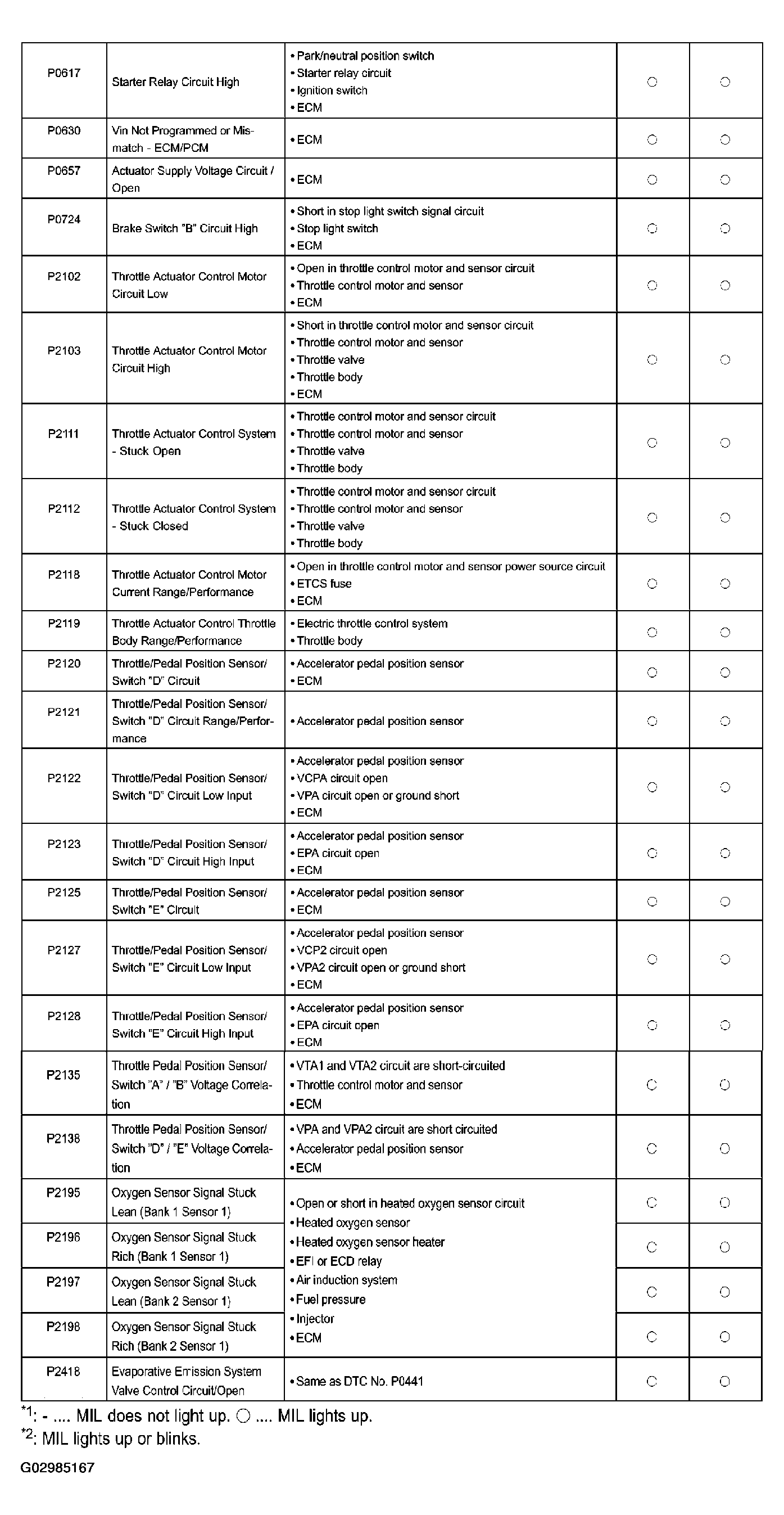

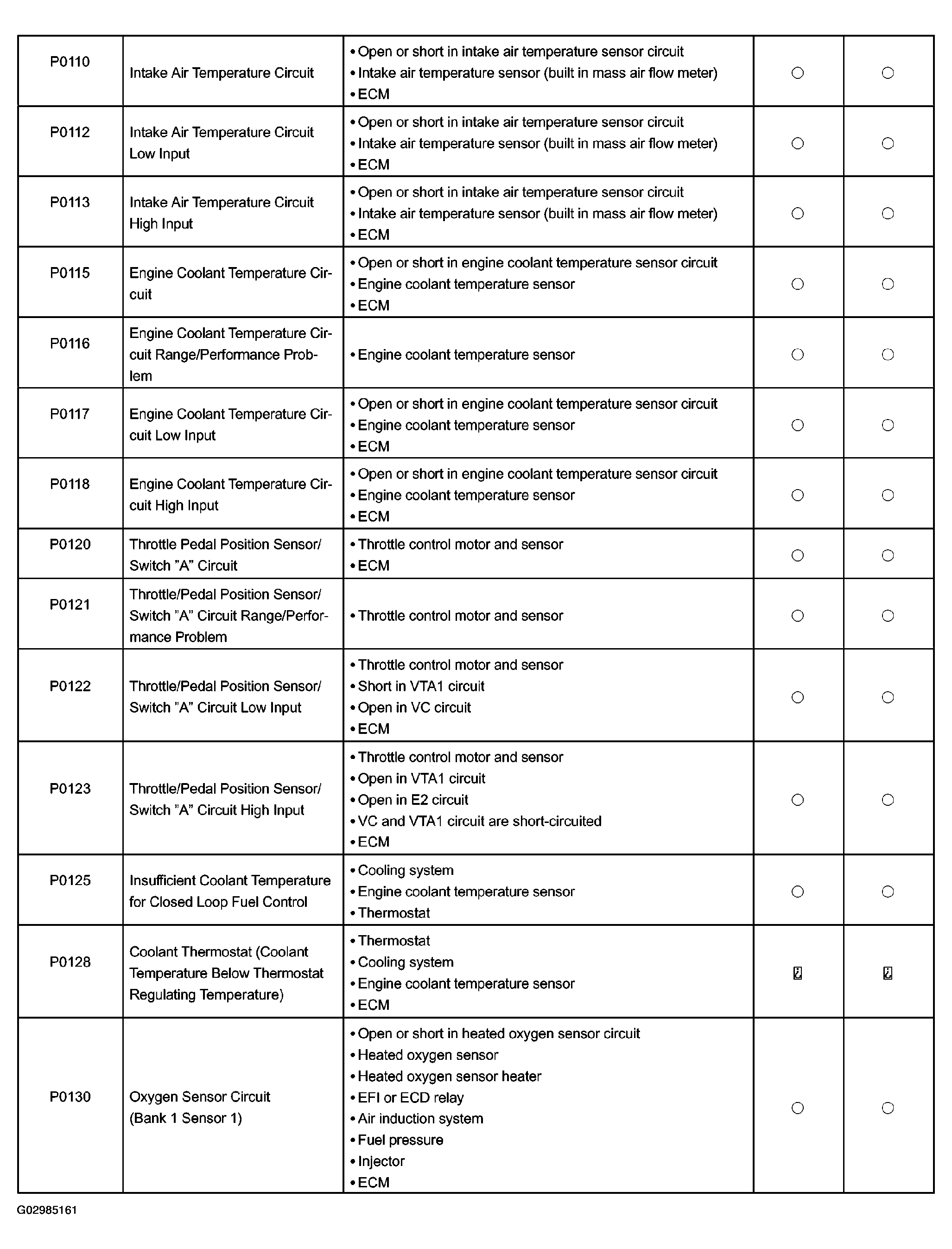

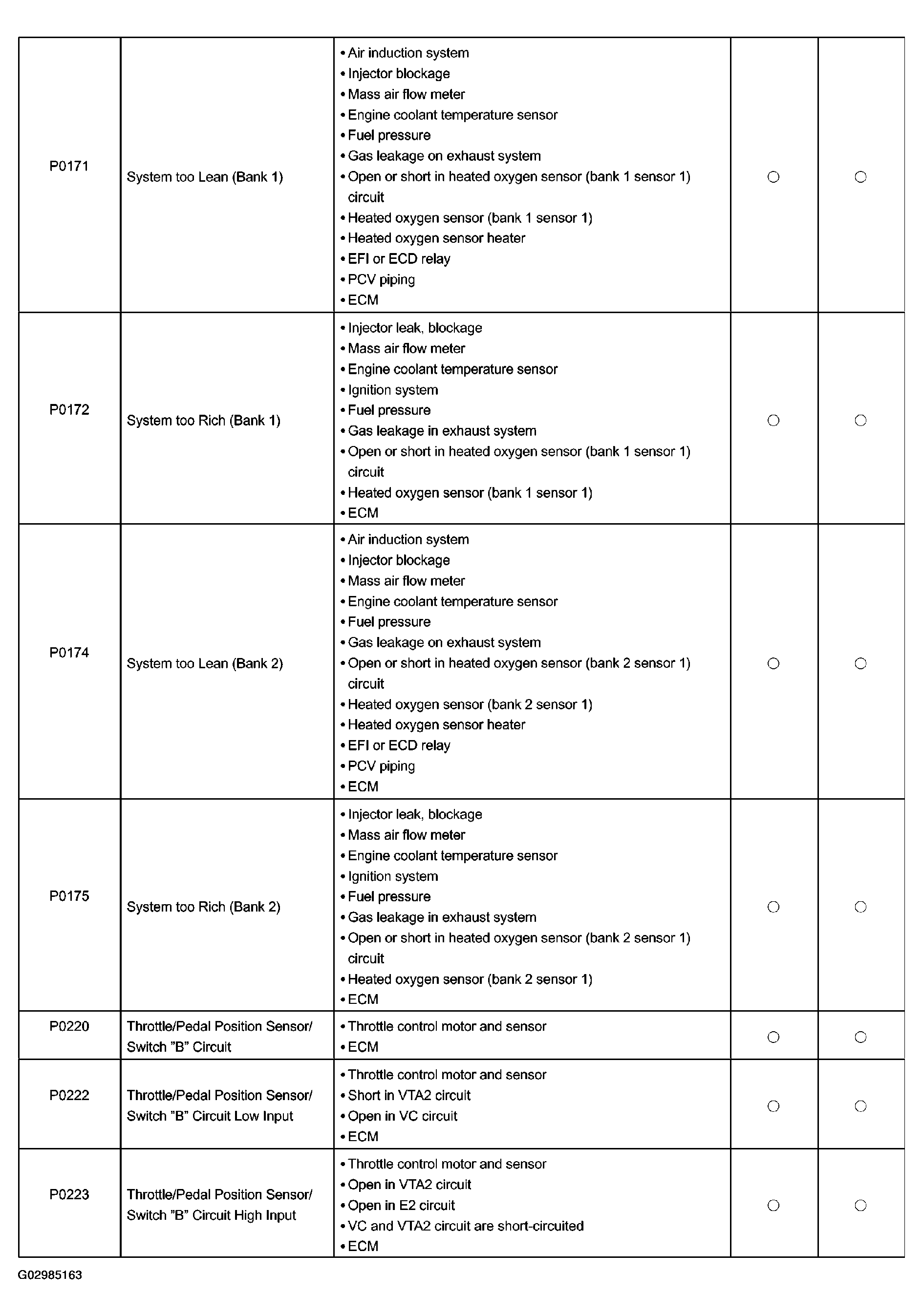

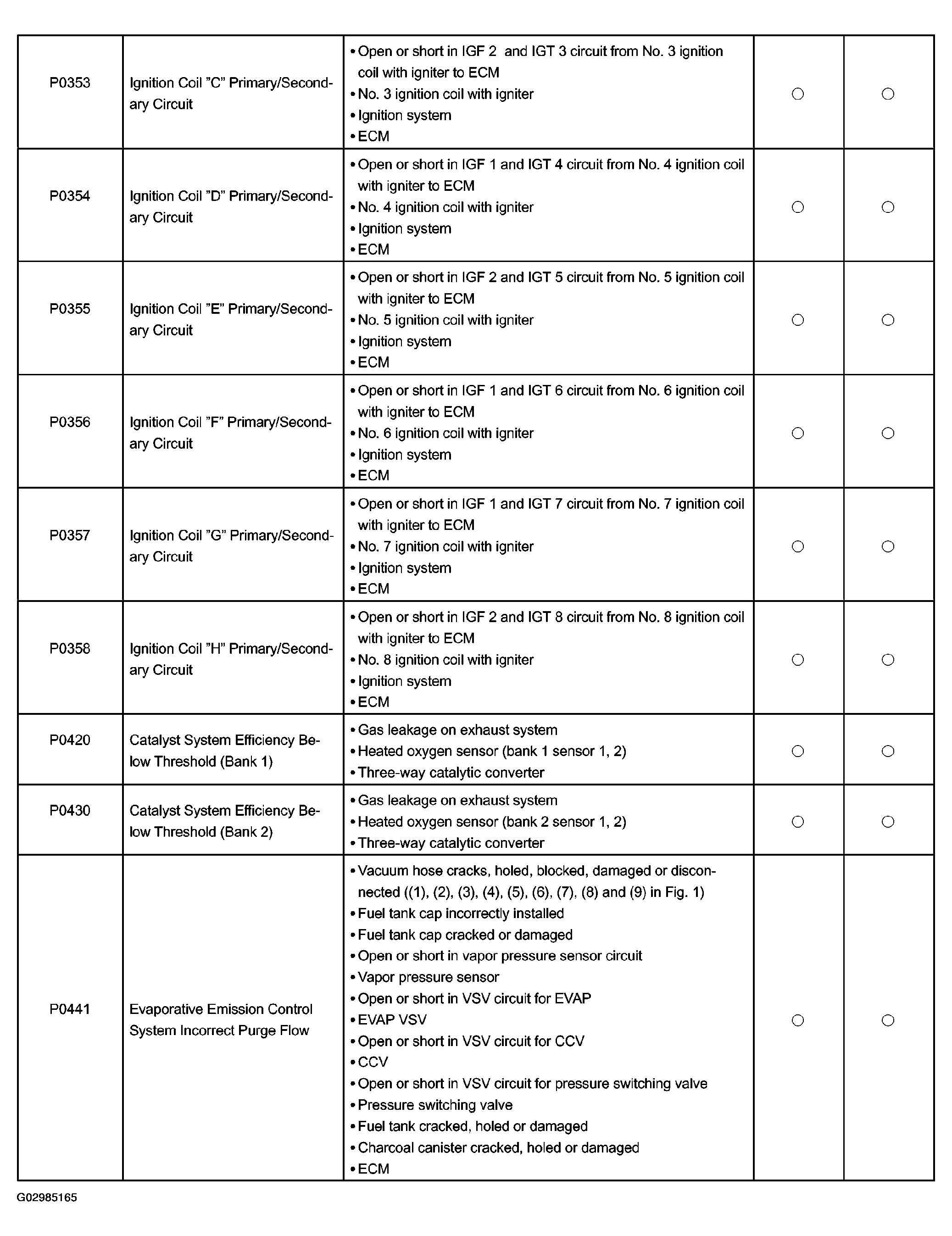

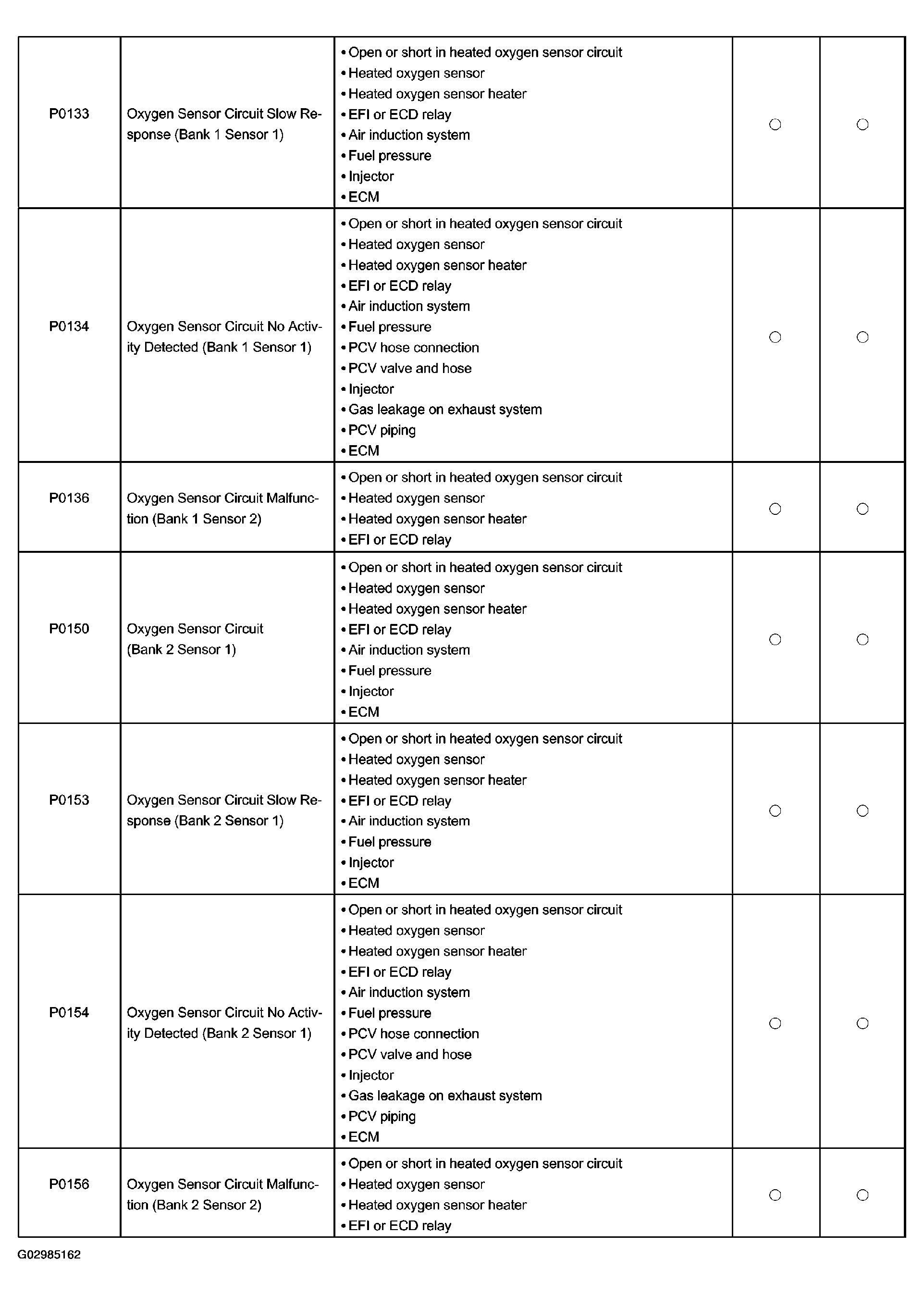

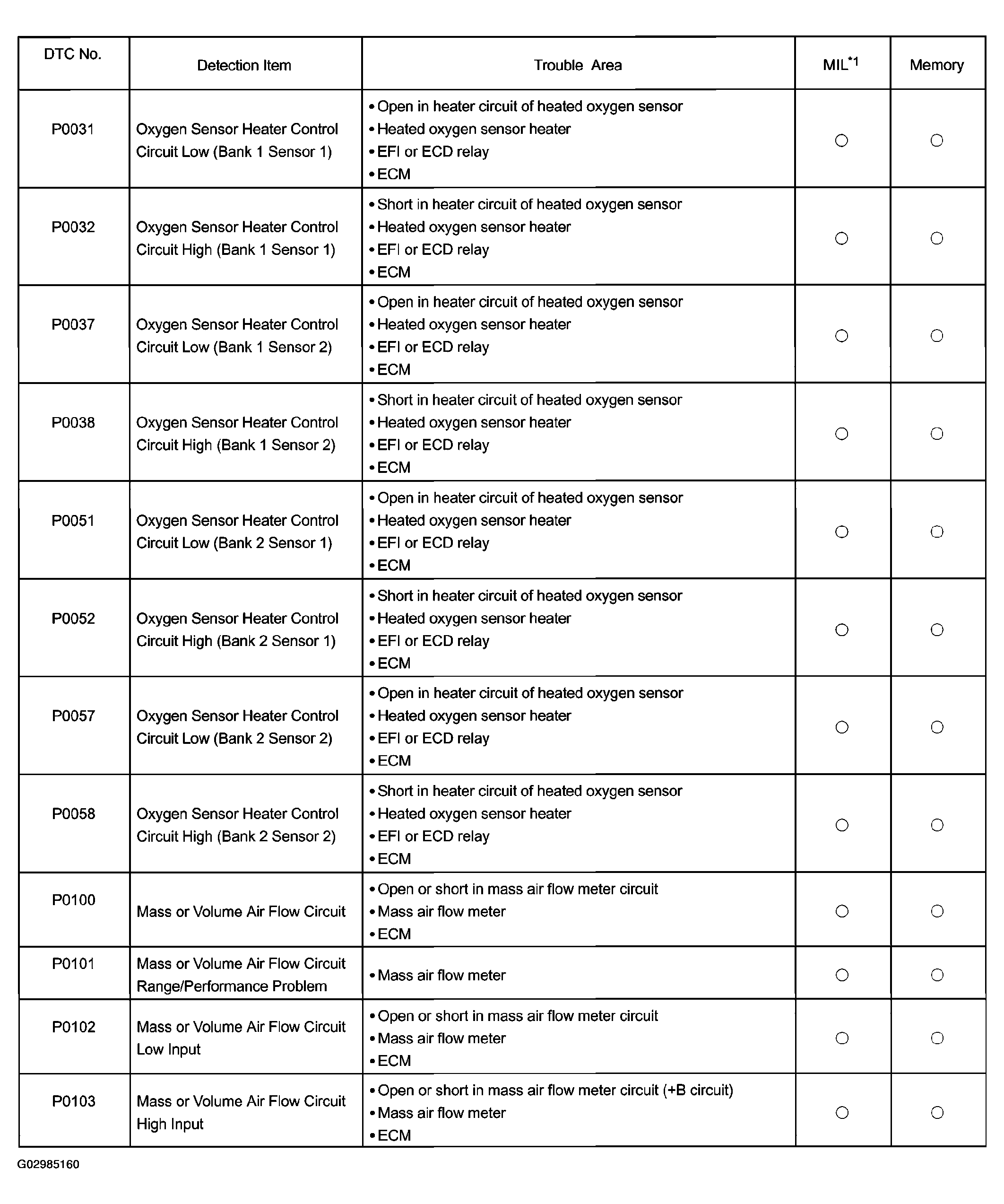

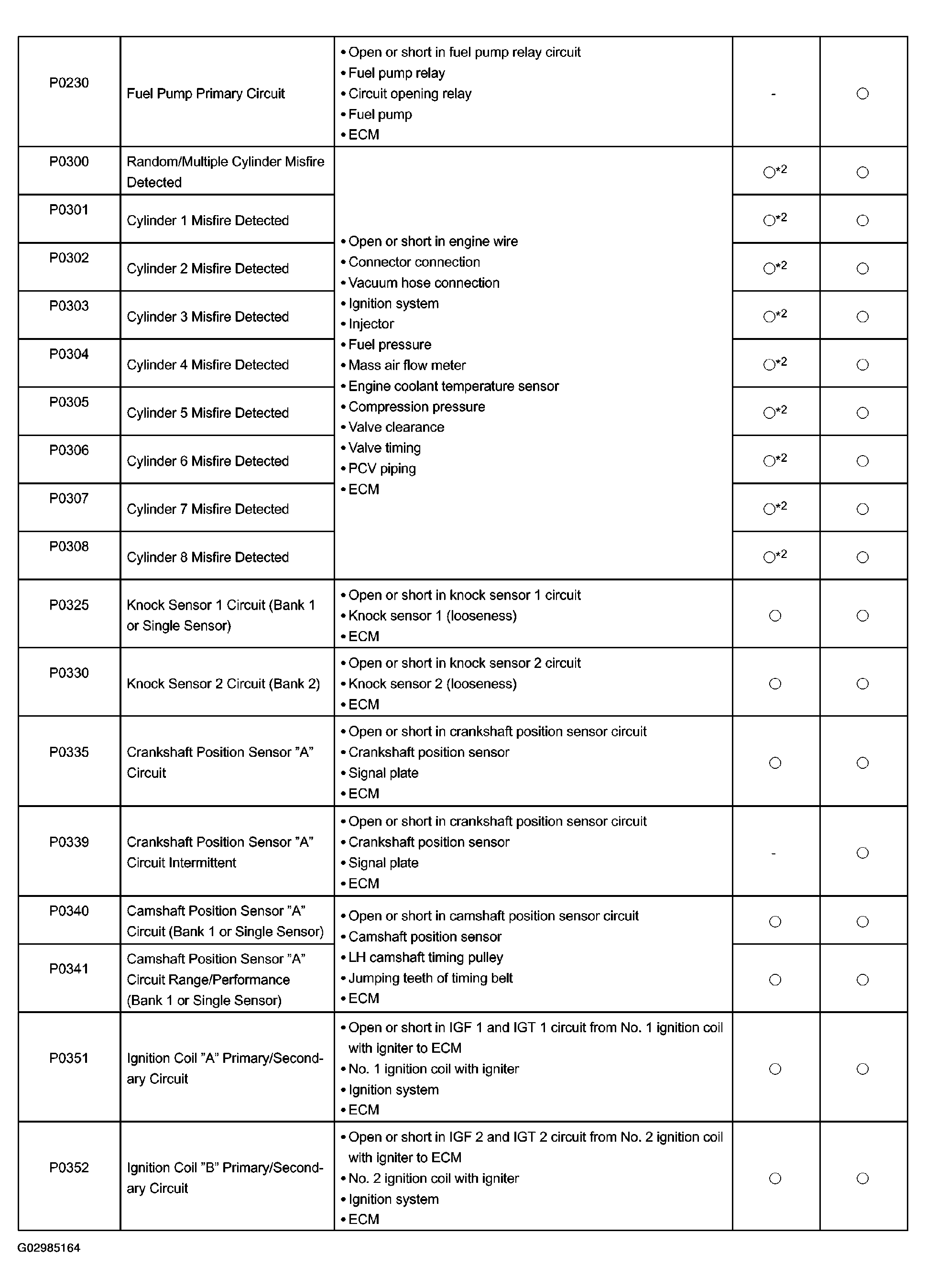

| DTC | Description |
|---|---|
| DTC P0031, P0032, P0037, P0038, P0051, P0052, P0057, P0058 | Oxygen Sensor Heater Control Circuit Low/High (Bank 1 Sensor 1), Oxygen Sensor Heater Control Circuit Low/High (Bank 1 Sensor 2), Oxygen Sensor Heater Control Circuit Low/High (Bank 2 Sensor 1), Oxygen Sensor Heater Control Circuit Low/High (Bank 2 Sensor 2) |
| DTC P0100, P0102, P0103 | Mass or Volume Air Flow Circuit, Mass or Volume Air Flow Circuit Low/High Input |
| DTC P0101 | Mass or Volume Air Flow Circuit Range/Performance Problem |
| DTC P0110, P0112, P0113 | Intake Air Temperature Circuit, Intake Air Temperature Circuit Low/High Input |
| DTC P0115, P0117, P0118 | Engine Coolant Temperature Circuit, Engine Coolant Temperature Circuit Low/High Input |
| DTC P0116 | Engine Coolant Temperature Circuit Range/Performance Problem |
| DTC P0120, P0122, P0123, P0220, P0222, P0223, P2135 | Throttle/Pedal Position Sensor/Switch "A" Circuit, Throttle/Pedal Position Sensor/Switch "A" Circuit Low/High Input, Throttle/Pedal Position Sensor/Switch "B" Circuit, Throttle/Pedal Position Sensor/Switch "B" Circuit Low/High Input, Throttle/Pedal Position Sensor/Switch "A"/"B" Voltage Correction |
| DTC P0121 | Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance Problem |
| DTC P0125 | Insufficient Coolant Temperature for Closed Loop Fuel Control |
| DTC P0128 | Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature) |
| DTC P0130, P0150, P2195, P2196, P2197, P2198 | Oxygen Sensor Circuit (Bank 1 Sensor 1)/(Bank 2 Sensor 1), Oxygen Sensor Signal Stack Lean/Rich (Bank 1 Sensor 1), Oxygen Sensor Signal Stack Lean/Rich (Bank 2 Sensor 1) |
| DTC P0133, P0153 | Oxygen Sensor Circuit Slow Response (Bank 1 Sensor 1)/(Bank 2 Sensor 1) |
| DTC P0134, P0154 | Oxygen Sensor Circuit No Activity Detected (Bank 1 Sensor 1)/(Bank 2 Sensor 1) |
| DTC P0136, P0156 | Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2)/(Bank 2 Sensor 2) |
| DTC P0171, P0172, P0174, P0175 | System too Lean/Rich (Bank 1)/(Bank 2) |
| DTC P0230 | Fuel Pump Primary Circuit |
| DTC P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307, P0308 | Random/Multiple Cylinder Misfire Detected, Cylinder 1/2/3/4/5/6/7/8 Misfire Detected |
| DTC P0325, P0330 | Knock Sensor 1 Circuit (Bank 1 or Single Sensor), Knock Sensor 2 Circuit (Bank 2) |
| DTC P0335, P0339 | Crankshaft Position Sensor "A" Circuit, Crankshaft Position Sensor "A" Circuit Intermittent |
| DTC P0340, P0341 | Camshaft Position Sensor "A" Circuit (Bank 1 or Single Sensor), Camshaft Position Sensor "A" Circuit Range/Performance (Single Sensor) |
| DTC P0351, P0352, P0353, P0354, P0355, P0356, P0357, P0358 | Igniter Coil "A"/"B"/"C"/"D"/"E"/"F"/"G"/"H" Primary/Secondary Circuit |
| DTC P0420, P0430 | Catalyst System Efficiency Below Threshold (Bank 1)/(Bank 2) |
| DTC P0441, P0446, P2418 | Evaporative Emission Control System Incorrect Purge Flow/Vent Control Circuit/Valve Control Circuit/Open |
| DTC P0442, P0455, P0456 | Evaporative Emission Control System Leak Detected (Small Leak)/(Gross Leak)/(Very Small Leak) |
| DTC P0451, P0452, P0453 | Evaporative Emission Control System Pressure Sensor/Switch Range/Performance/Switch Low Input/Switch High Input |
| DTC P0500, P0503 | Vehicle Speed Sensor "A", Vehicle Speed Sensor "A" Intermittent/Erratic/High |
| DTC P0504 | Brake Switch "A"/"B" Correlation |
| DTC P0505 | Idle Air Control System |
| DTC P0560 | System Voltage |
| DTC P0604, P0606, P0607, P0657 | Internal Control Module Random Access Memory (RAM) Error, ECM/PCM Processor, Control Module Performance, Actuator Supply Voltage Circuit/Open |
| DTC P0617 | Starter Relay Circuit High |
| DTC P0630 | Vin Not Programmed or Mismatch - ECM/PCM |
| DTC P2102, P2103 | Throttle Actuator Control Motor Circuit Low/High |
| DTC P2111, P2112 | Throttle Actuator Control System-Stuck Open/Closed |
| DTC P2118 | Throttle Actuator Control Motor Current Range/Performance |
| DTC P2119 | Throttle Actuator Control Throttle Body Range/Performance |
| DTC P2120, P2122, P2123, P2125, P2127, P2128, P2138 | Throttle/Pedal Position Sensor/Switch "D" Circuit, Throttle/Pedal Position Sensor/Switch "D" Circuit Low/High Input, Throttle/Pedal Position Sensor/Switch "E" Circuit, Throttle/Pedal Position Sensor/Switch "E" Circuit Low/High Input, Throttle/Pedal Position Sensor/Switch "D"/"E" Voltage Correlation |
| DTC P2121 | Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance |
HINT:
Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in the table below. For details of each code, refer to the "See page" under the respective "DTC No." in the DIAGNOSTIC TROUBLE CODE CHART .
