How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure on the following page.

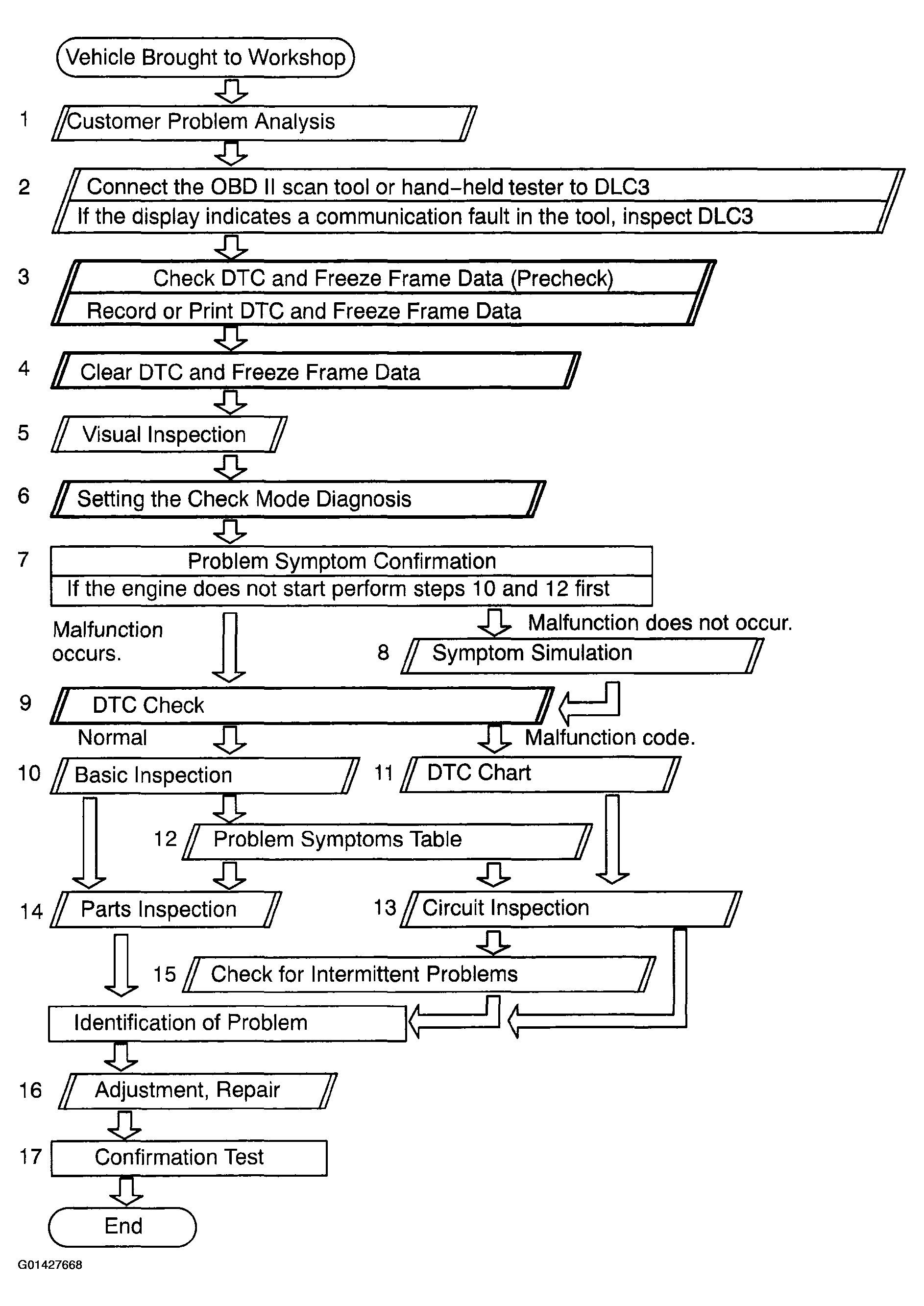

Fig 1: Flow Chart - Troubleshooting
G01427668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
