Problem Symptoms Table

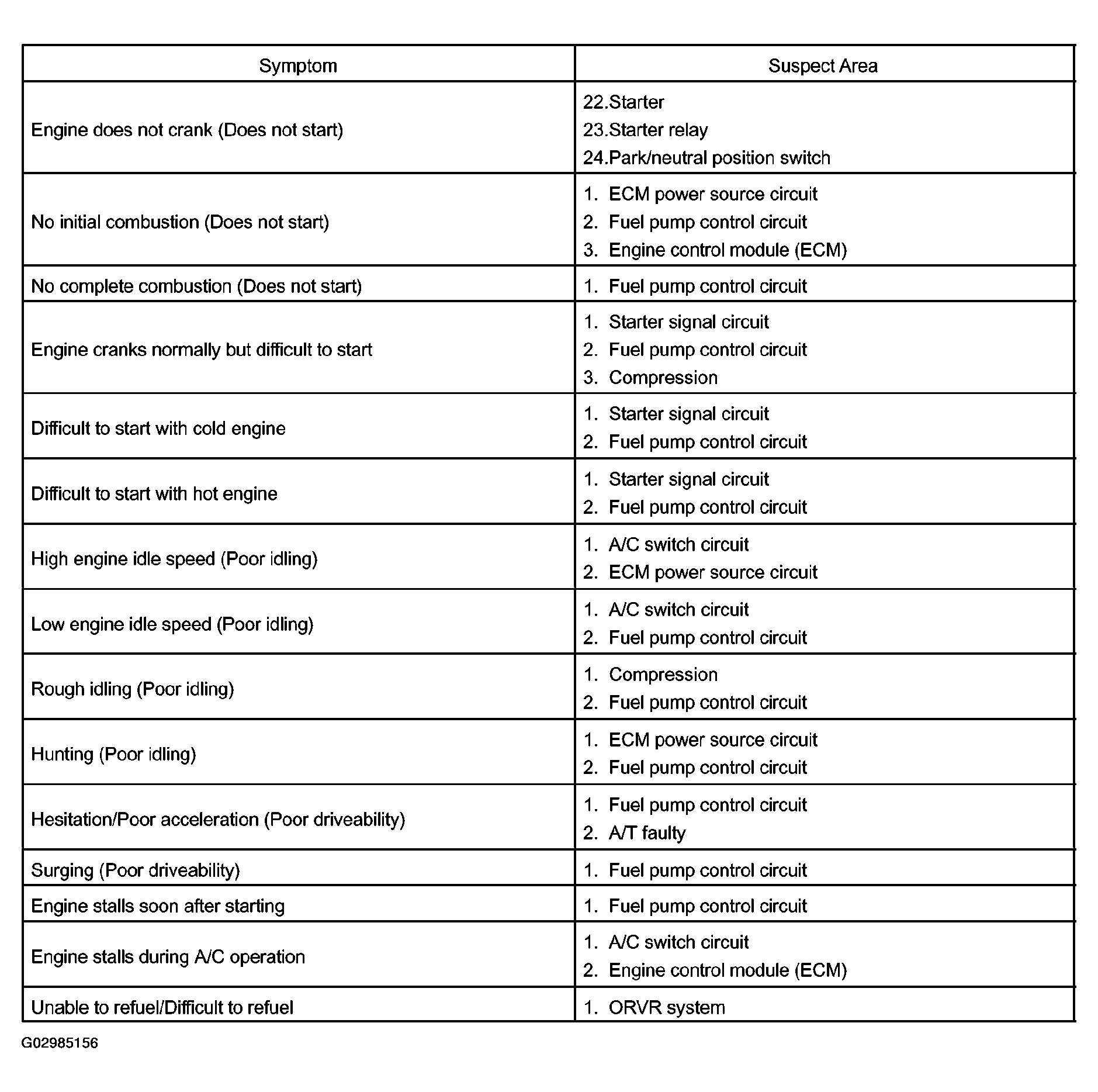

Fig 1: Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
