Center Differential: Components

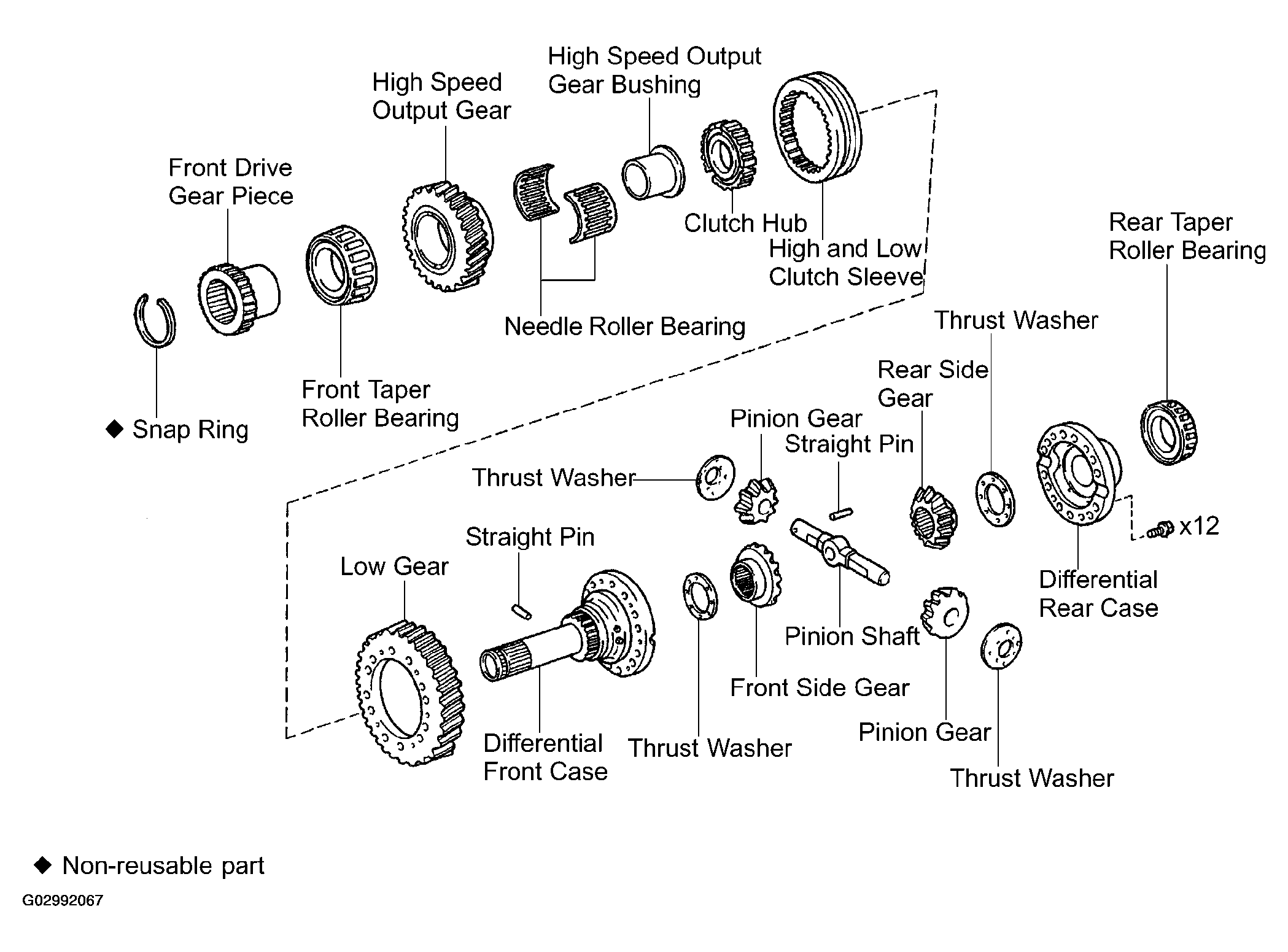

Fig 1: Identifying Components Center Differential
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
