Accelerator Pedal Rod ASSY (3MZ-FE): Replacement

1. Disconnect the accelerator position sensor connector.
2. Remove the 2 bolts, and then remove the accelerator pedal rod.

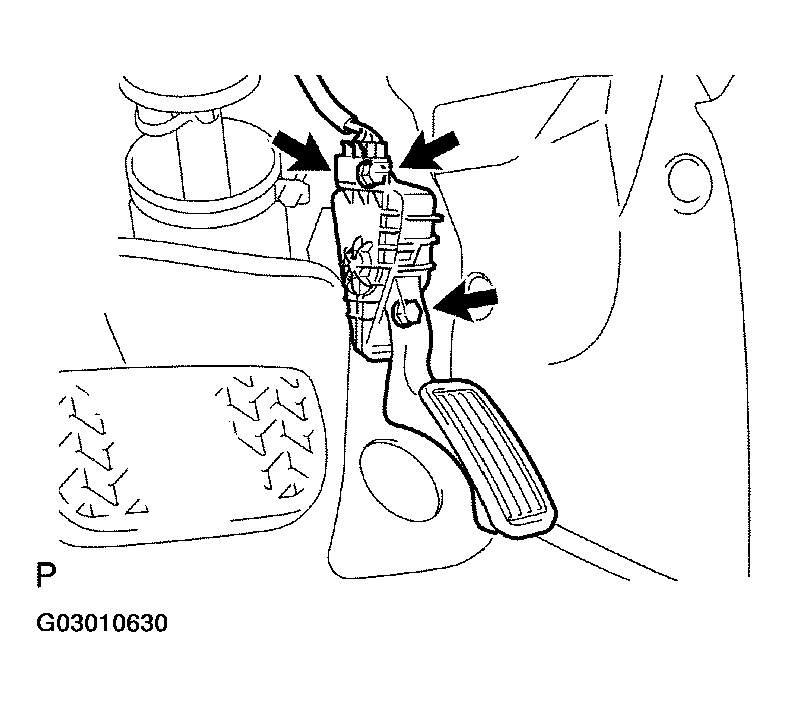

   Fig 1: Removing Accelerator Pedal Rod Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)
