Knock Sensor (3MZ-FE): Components

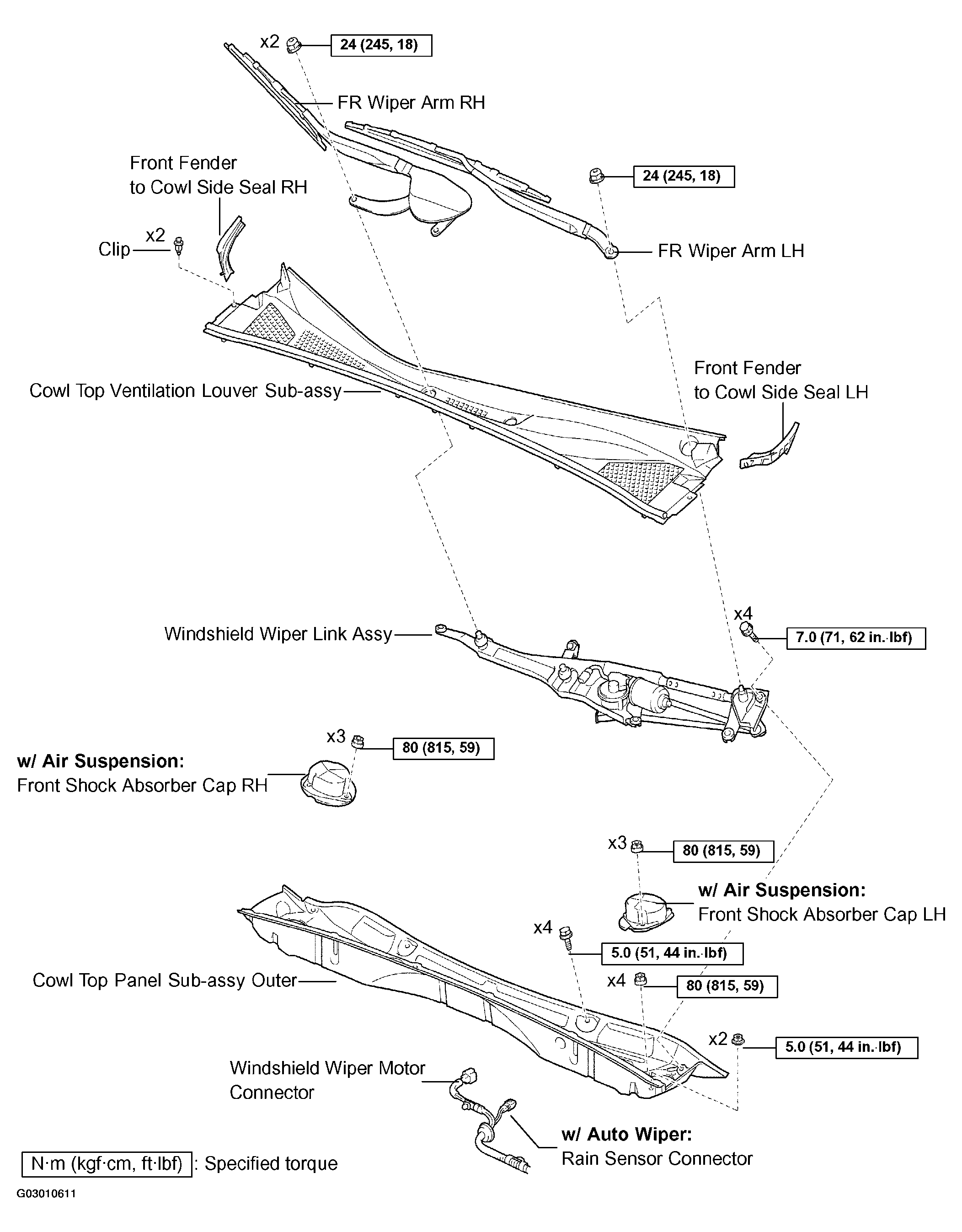

Fig 1: Identifying Knock Sensor Components And Replacements (1 Of 4)
G03010611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

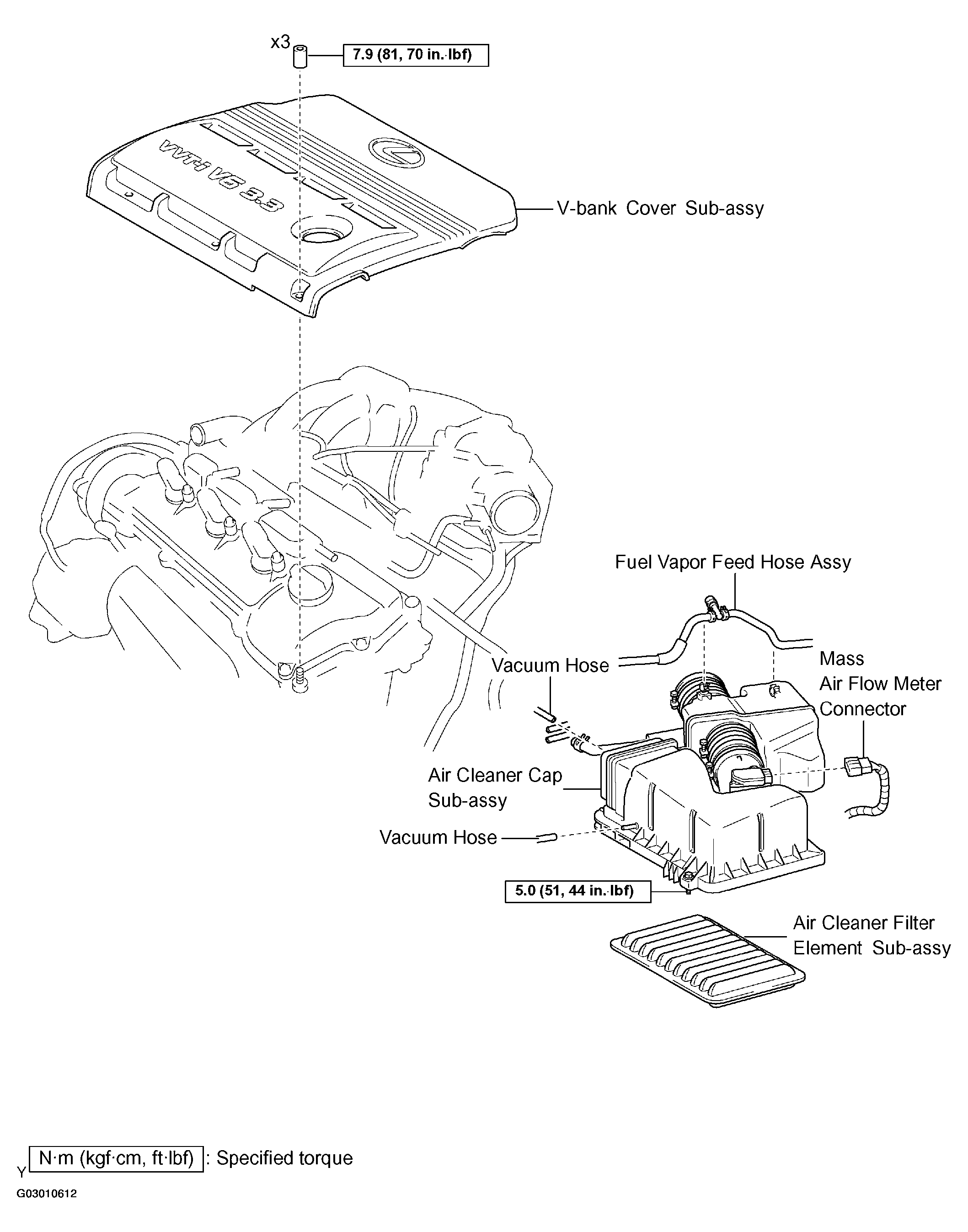

Fig 2: Identifying Knock Sensor Components And Replacements (2 Of 4)
G03010612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

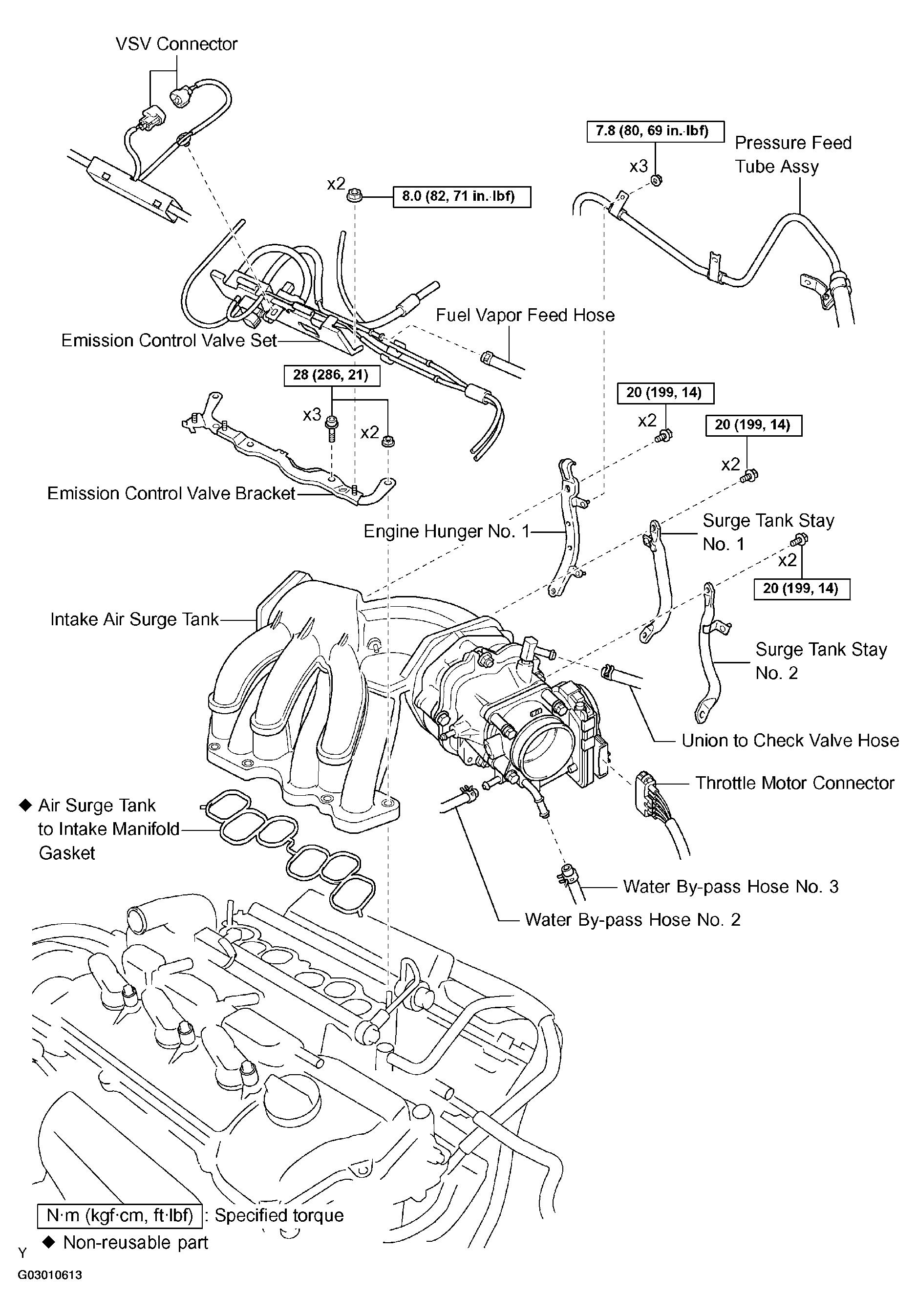

Fig 3: Identifying Knock Sensor Components And Replacements (3 Of 4)
G03010613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

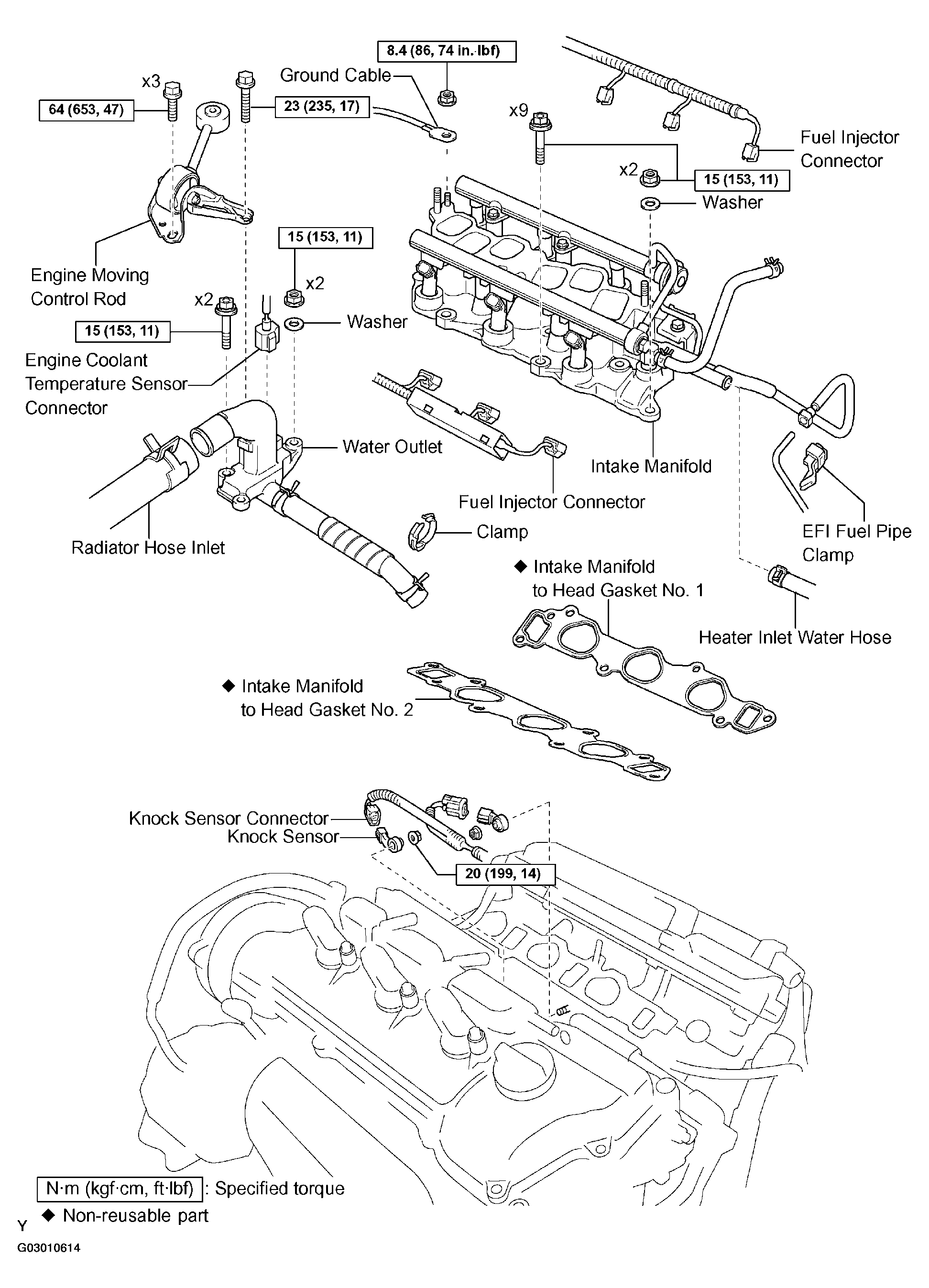

Fig 4: Identifying Knock Sensor Components And Replacements (4 Of 4)
G03010614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
