Throttle Body ASSY (3MZ-FE): Components

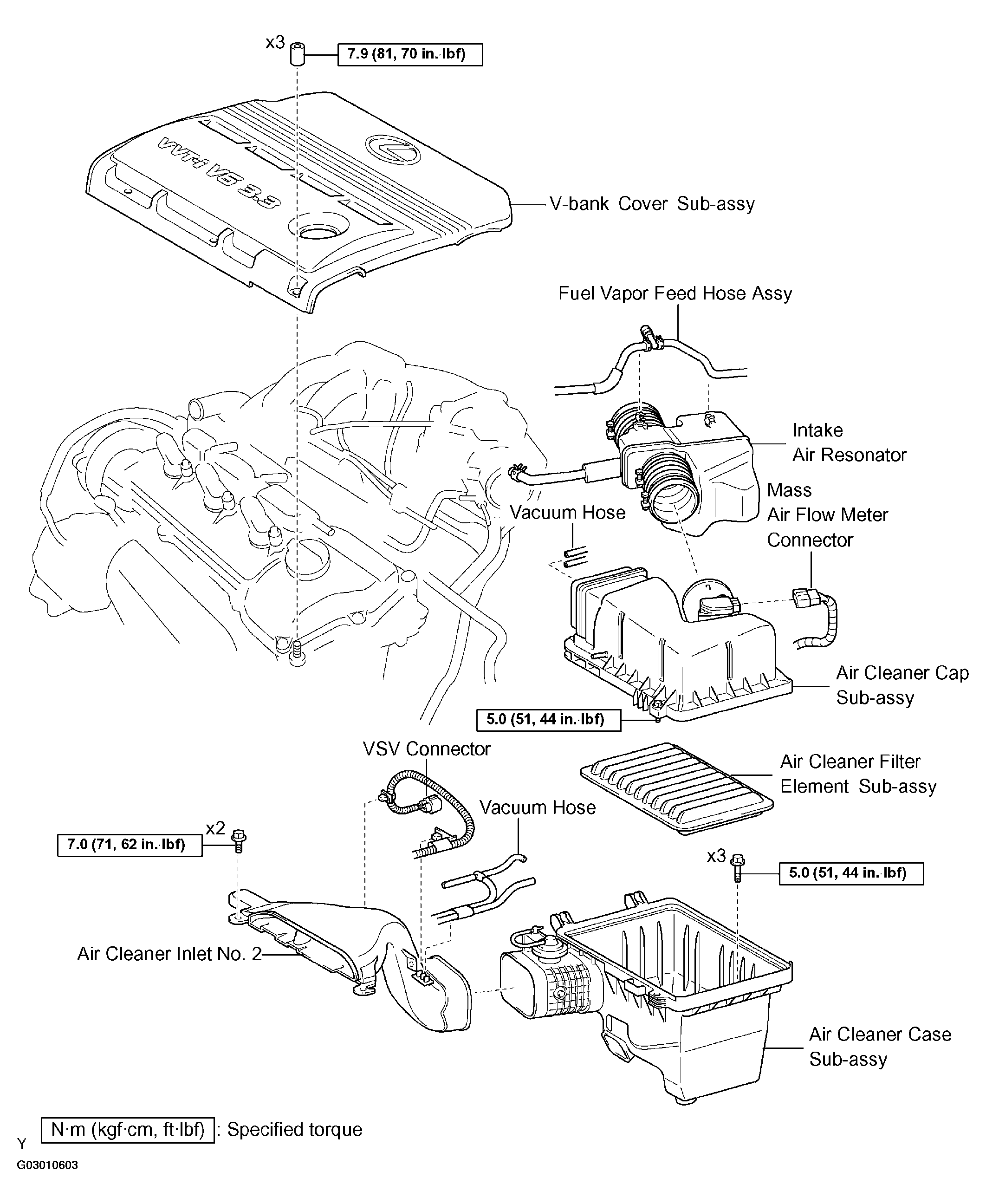

Fig 1: Identifying Throttle Body Assy Components And Replacements
G03010603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

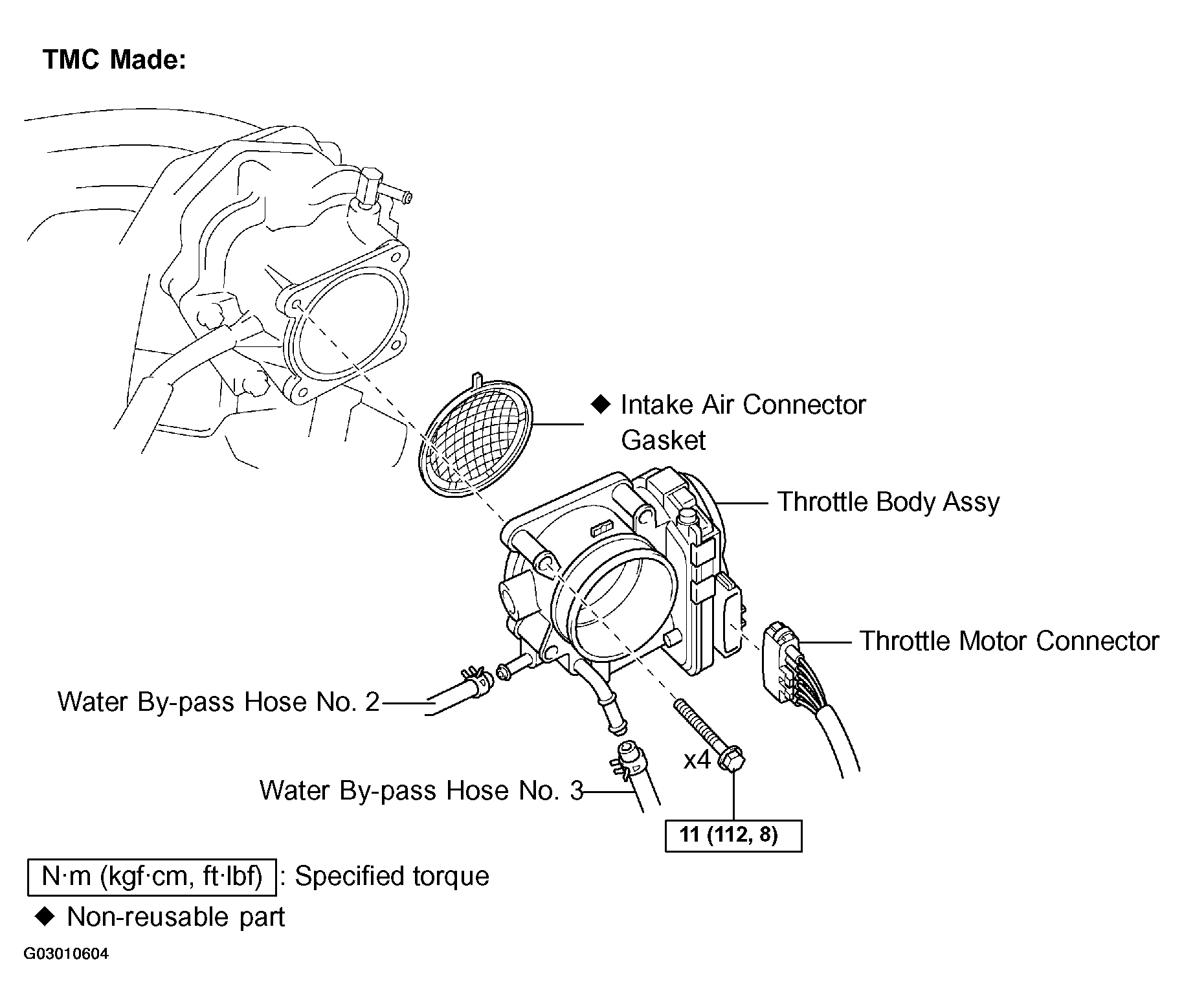

Fig 2: Identifying Throttle Body Assy Components And Replacements (TMC Made)
G03010604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

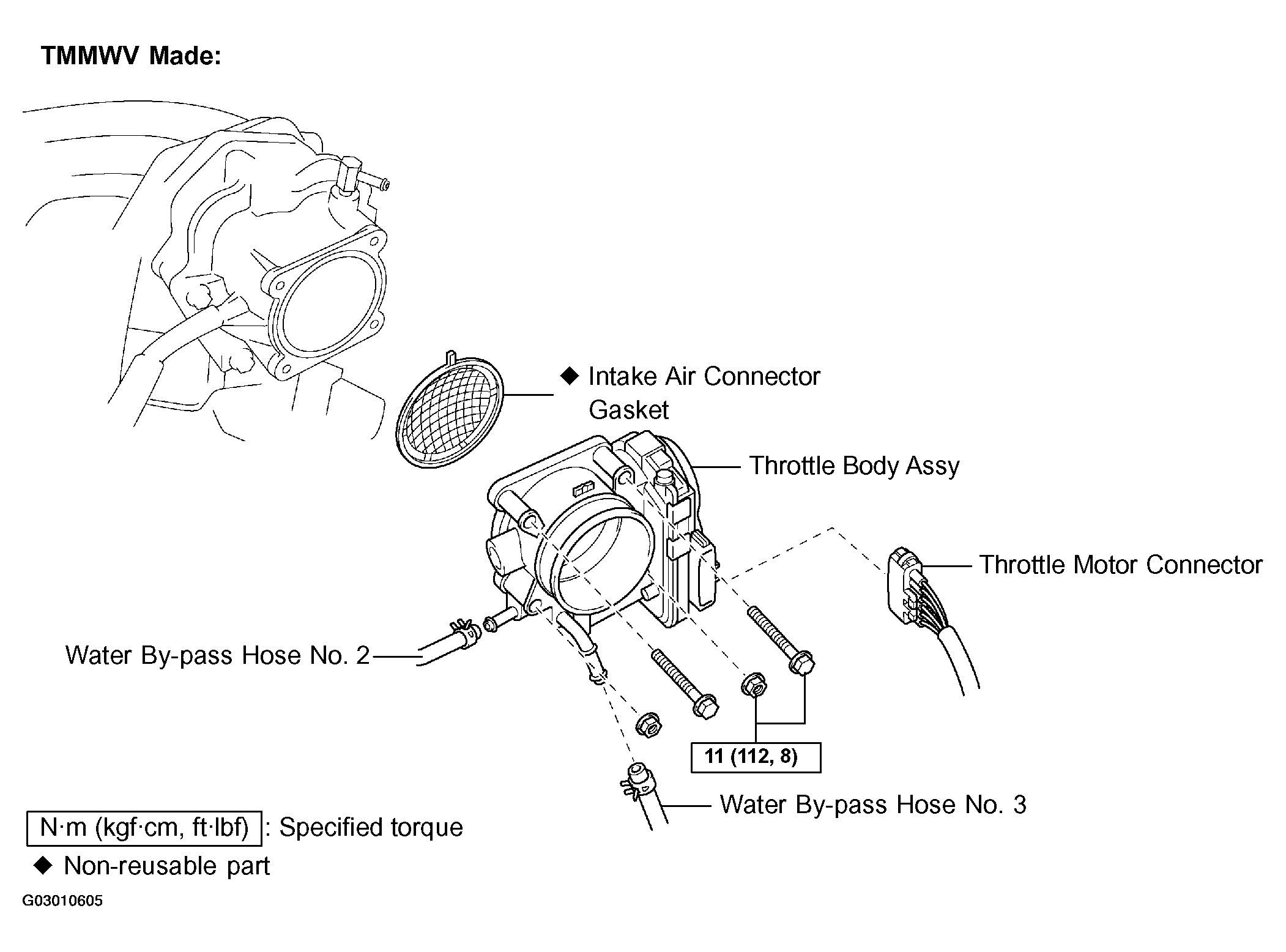

Fig 3: Identifying Throttle Body Assy Components And Replacements (TMMWV Made)
G03010605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
