Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER AND FRAME NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in the illustration. The frame number is stamped on the front floor pan under the driver's seat.
  A: Vehicle Identification Number Plate

  B: Certification Label

  C: Frame Number

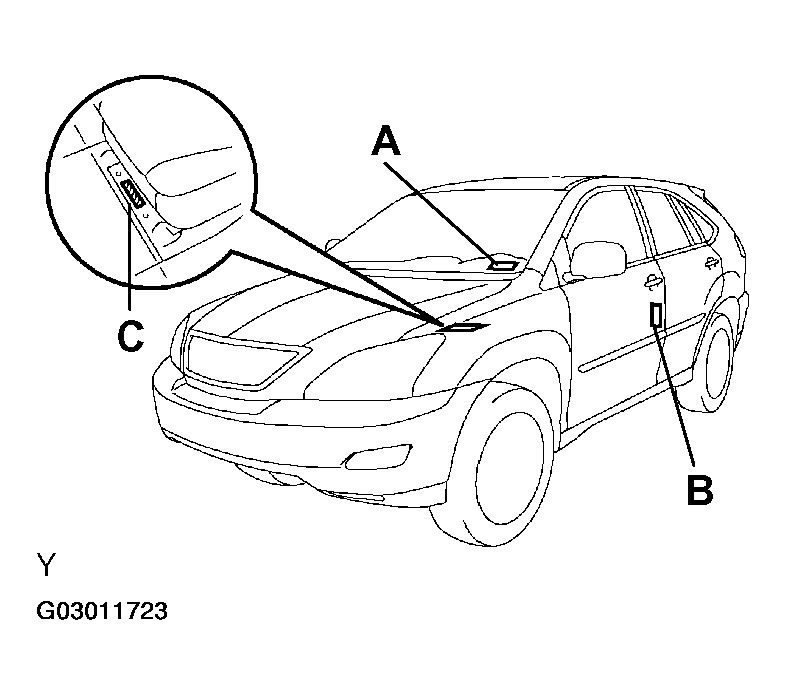

  Fig 1: Locating Vehicle Identification Number Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustration.
  A: Engine Serial Number

  B: Transaxle Serial Number

  Fig 2: Identifying Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
