Windshield Glass: Components

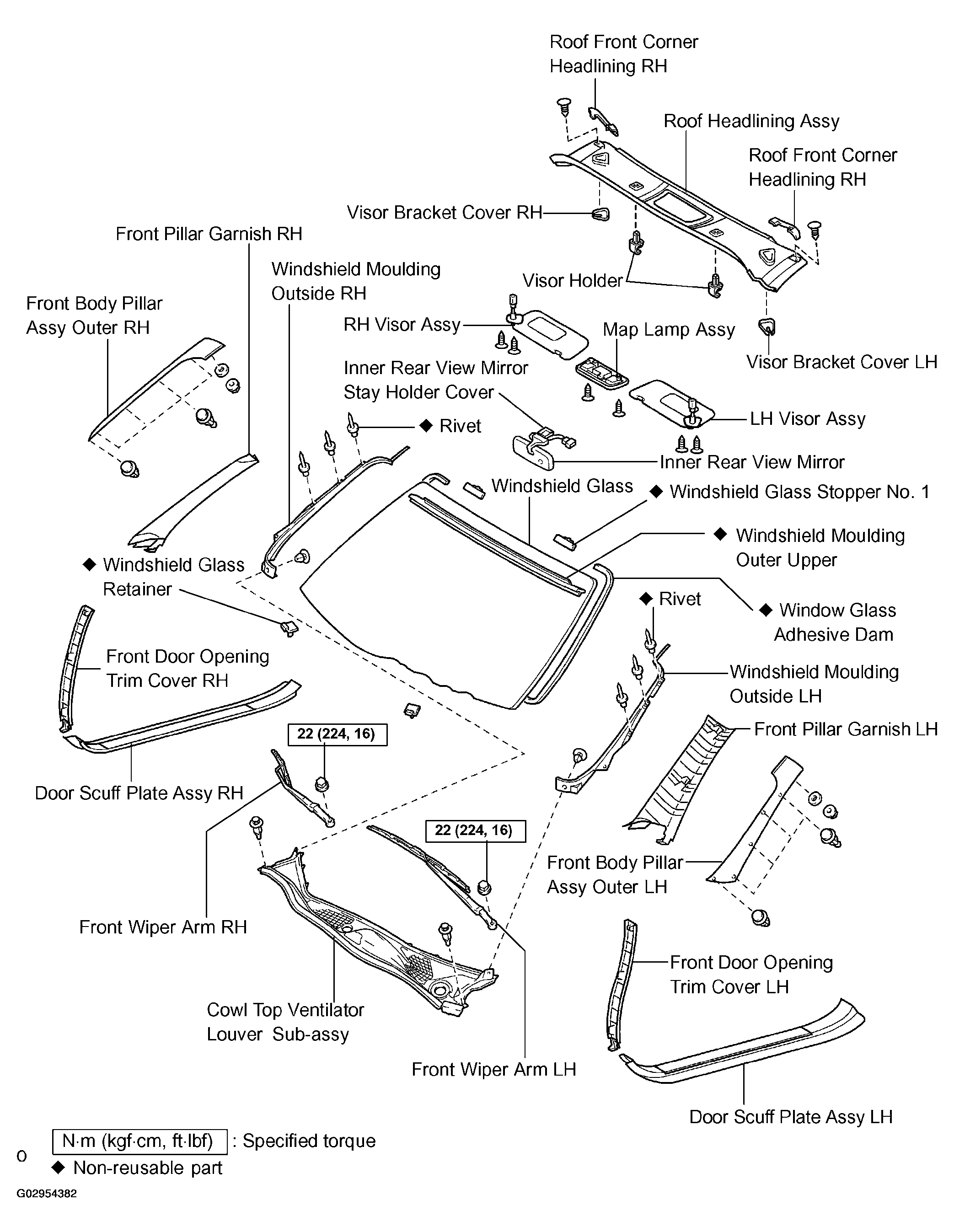

Fig 1: Exploded View Of Windshield Glass Components & Replacements
G02954382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
