Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Airbag Squib (Front Passenger Airbag Assembly) | Right side of dash. See Figure. |
| Airbag Squib (Steering Wheel Pad) | Center of steering wheel. See Figure. |
| Data Link Connector (DLC) No. 3 | Behind left side of dash. See Figure. |
| Fuel Pump Resistor | At left rear of engine compartment. See Figure. |
| Generator | Right front of engine. See Figure. |
| Horn (Left) | Behind grille. See Figure. |
| Horn (Right) | Behind grille. See Figure. |
| Ignition Coil And Igniter No. 1 | Top left side of engine. See Figure. |
| Ignition Coil And Igniter No. 2 | Top right side of engine. See Figure. |
| Ignition Coil And Igniter No. 3 | Top left side of engine. See Figure. |
| Ignition Coil And Igniter No. 4 | Top right side of engine. See Figure. |
| Ignition Coil And Igniter No. 5 | Top left side of engine. See Figure. |
| Ignition Coil And Igniter No. 6 | Top right side of engine. See Figure. |
| Ignition Coil And Igniter No. 7 | Top left side of engine. See Figure. |
| Ignition Coil And Igniter No. 8 | Top right side of engine. See Figure. |
| Junction Connector No. 8 | Behind left end of dash. See Figure. |
| Junction Connector No. 11 | Behind center of dash, below radio. See Figure. |
| Junction Connector No. 17 | Left rear of luggage compartment. See Figure. |
| Junction Connector No. 18 | Right rear of luggage compartment. See Figure. |
| Junction Connector No. 19 | Below left front seat. See Figure. |
| Junction Connector No. 20 | Below left front seat. See Figure. |
| Junction Connector No. 21 | Below right front seat. See Figure. |
| Junction Connector No. 22 | Below right front seat. See Figure. |
| Junction Connectors No. 1, 2 & 3 | In engine room No. 2 R/B. See Figure. |
| Junction Connectors No. 4, 5, 6 & 7 | In ECU box. See Figure. |
| Junction Connectors No. 9 & 10 | Behind top left end of dash. See Figure. |
| Junction Connectors No. 12, 13 & 14 | Behind right side of dash. See Figure. |
| Junction Connector No. 15 | Above right rear wheel.Figure. |
| Navigation Amplifier | At right rear corner of luggage compartment. See Figure. |
| Noise Filter (Ignition, Left Bank) | At top left rear of engine. See Figure. |
| Noise Filter (Ignition, Right Bank) | On top right side of engine. See Figure. |
| Noise Filter (Rear Window Defogger) | At left front corner of luggage compartment. See Figure. |
| Pretensioner (Left/Right) | At base of respective "B" pillar. See Figure. |
| Rear Window Defogger | In rear window. See Figure. |
| Short Connector | At rear center of luggage compartment. See Figure. |
| Short Pin No. 1 | Engine room No. 2 R/B. See Figure. |
| Short Pin No. 2 | Engine room No. 2 R/B. See Figure. |
| Short Pin No. 3 | Engine room No. 2 R/B. See Figure. |
| Side Airbag Squib (Left) | Left side of driver's seat. See Figure. |
| Side Airbag Squib (Right) | Right side of passenger's seat. See Figure. |
| Starter | At rear of engine. See Figure. |

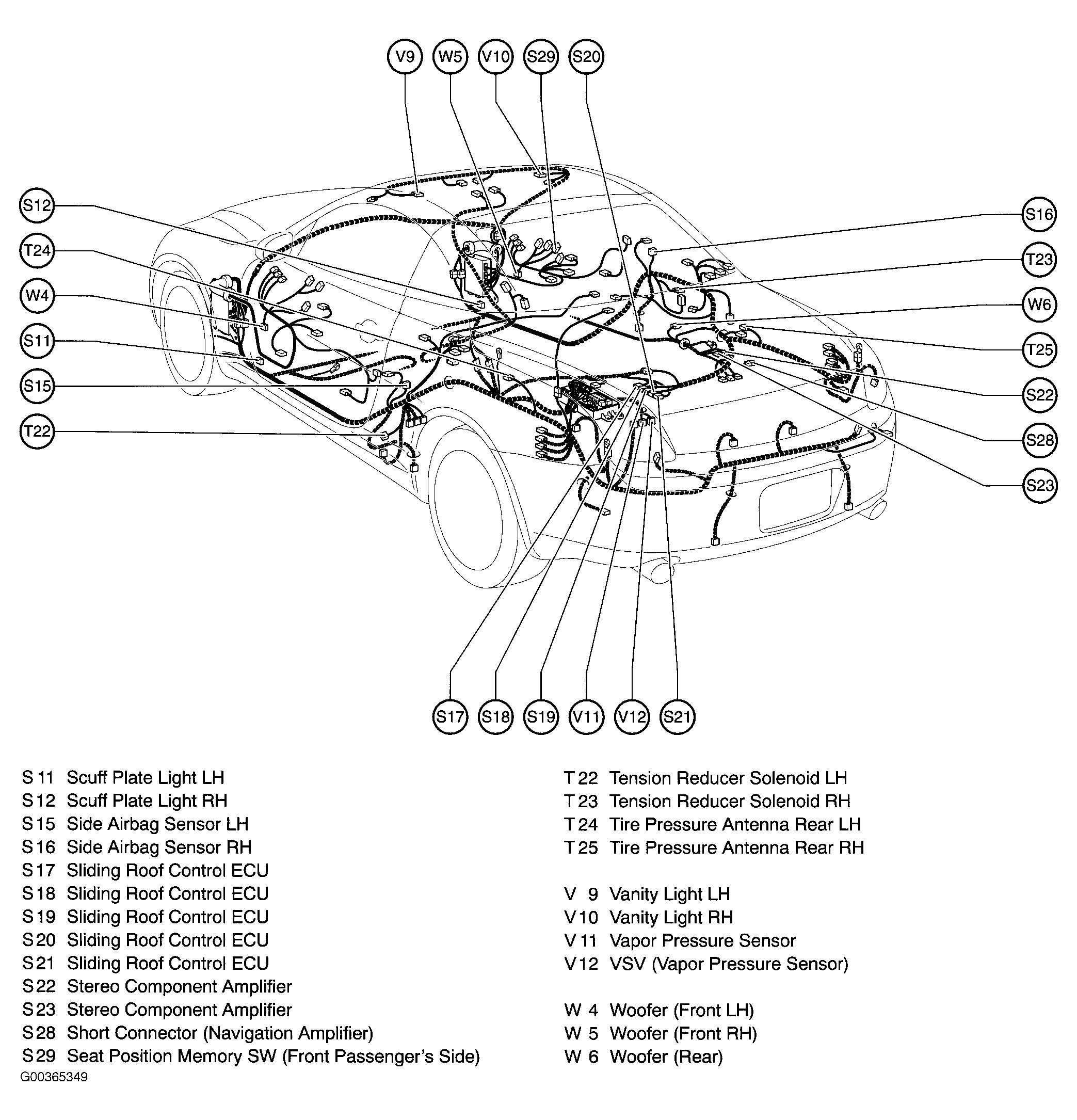

| Stereo Component Amplifier | At right rear corner of luggage compartment. See Figure. |
| Theft Deterrent Horn | At right front of engine compartment. See Figure. |
| Tire Pressure Antenna (Front) (Left/Right) | At respective front wheelwell. See Figure. |
| Tire Pressure Antenna (Rear) (Left/Right) | At respective rear side of luggage compartment. See Figure. |
| Transponder Key Amplifier | Behind dash, right of steering column. See Figure. |
