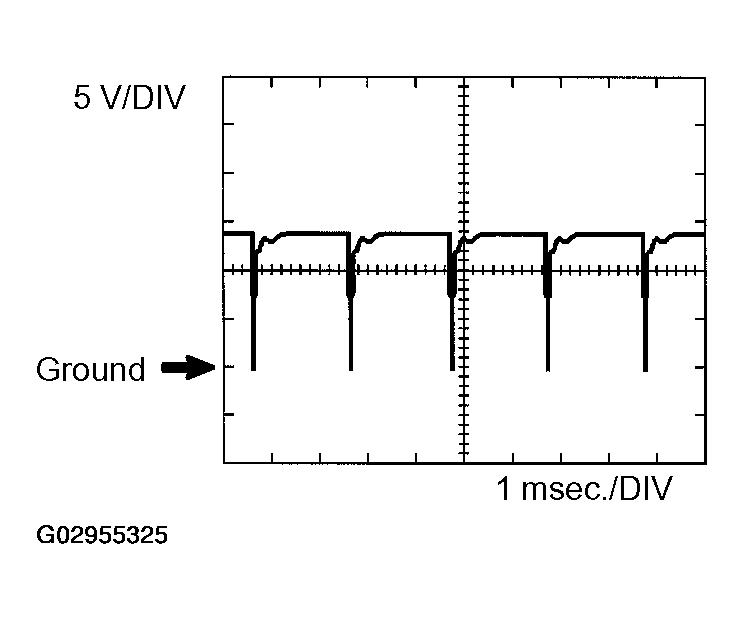

Waveform 2
- Throttle actuator negative terminal
WAVEFORM SPECIFICATIONS
| Symbols (Terminal No.) |
M- (E2-2) - E01 (E4-2) |
| Tester Range |
5 V/DIV, 1 msec./DIV |
| Condition |
Idle after engine warmed-up |
HINT:
The waveform expands depending on the throttle opening angle.
