Waveform 3

1. Camshaft position sensor
2. Crankshaft position sensor

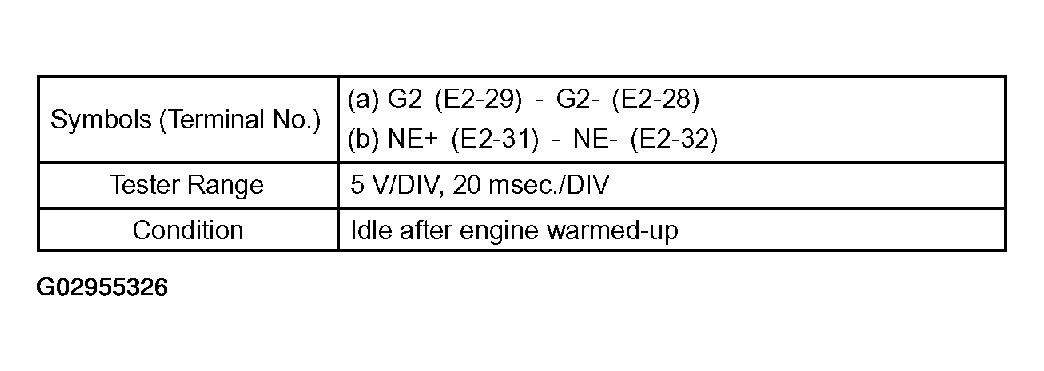

   Fig 1: Camshaft Position Sensor Specifications Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as engine rpm increases.

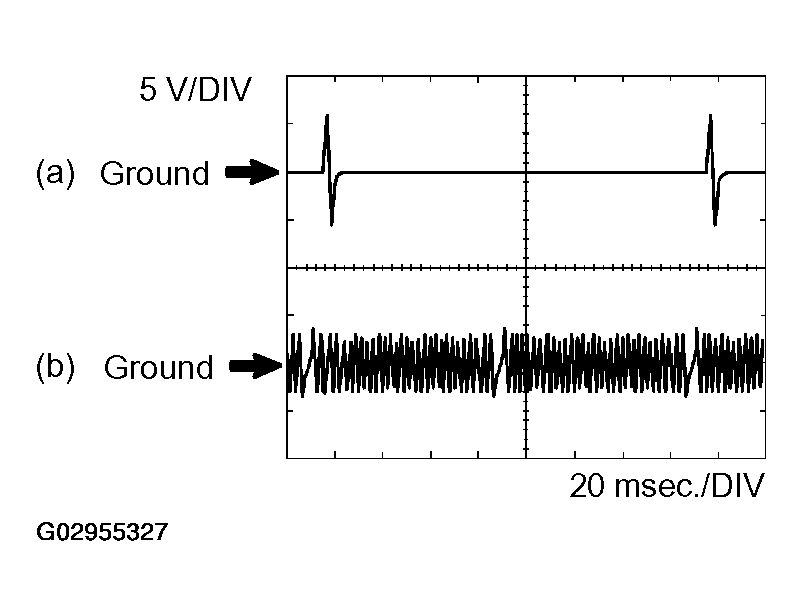

Fig 2: Camshaft Position Sensor - Waveform

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
