Waveform 4
Variable valve timing (VVT) sensor (Bank 1)
VVT sensor (Bank 2)
Crankshaft position sensor

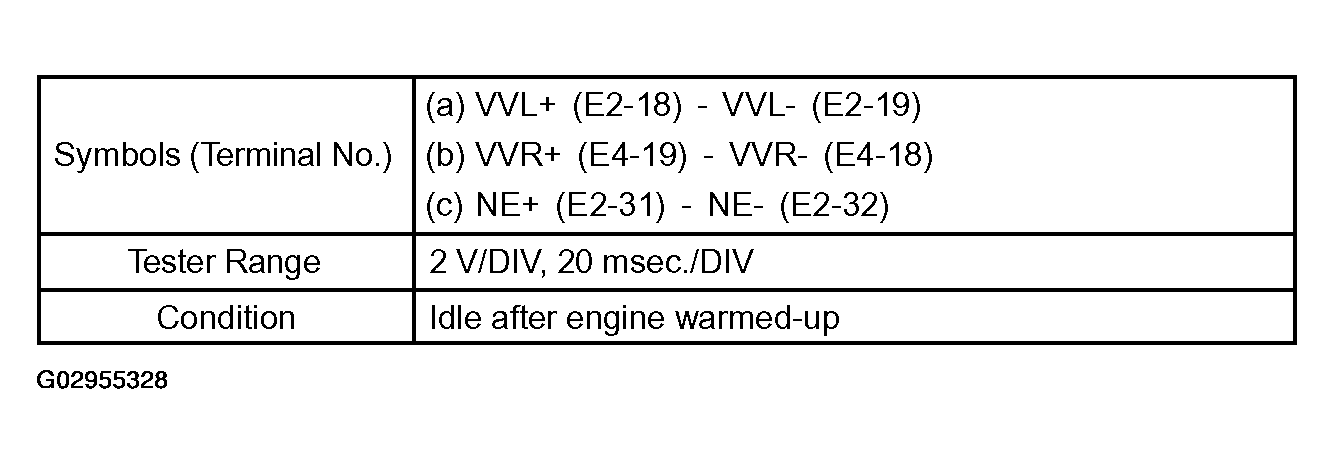

Fig 1: Crankshaft Position Sensor Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
The wavelength becomes shorter as engine rpm increases.

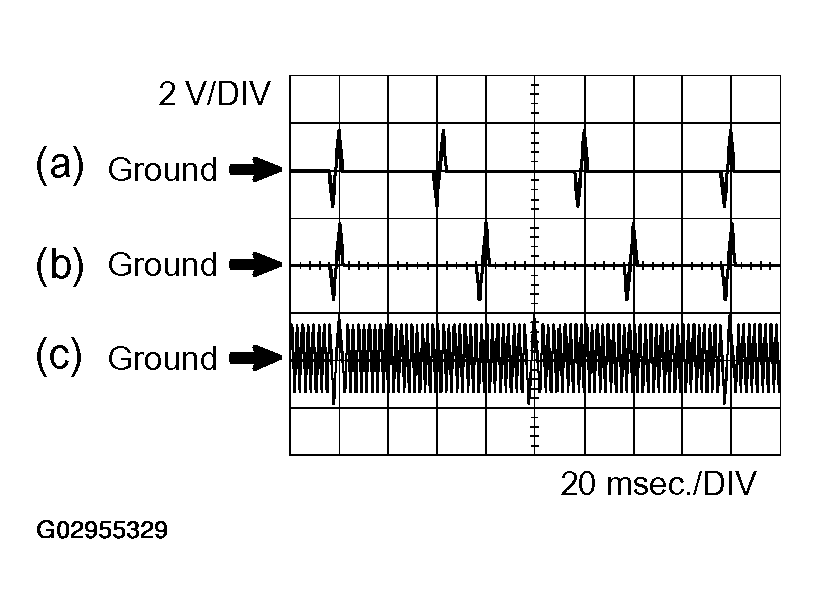

Fig 2: Crankshaft Position Sensor - Waveform
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
