Waveform 6

1. Igniter IGT signal (from ECM to igniter)
2. Igniter signal IGF (from igniter to ECM)

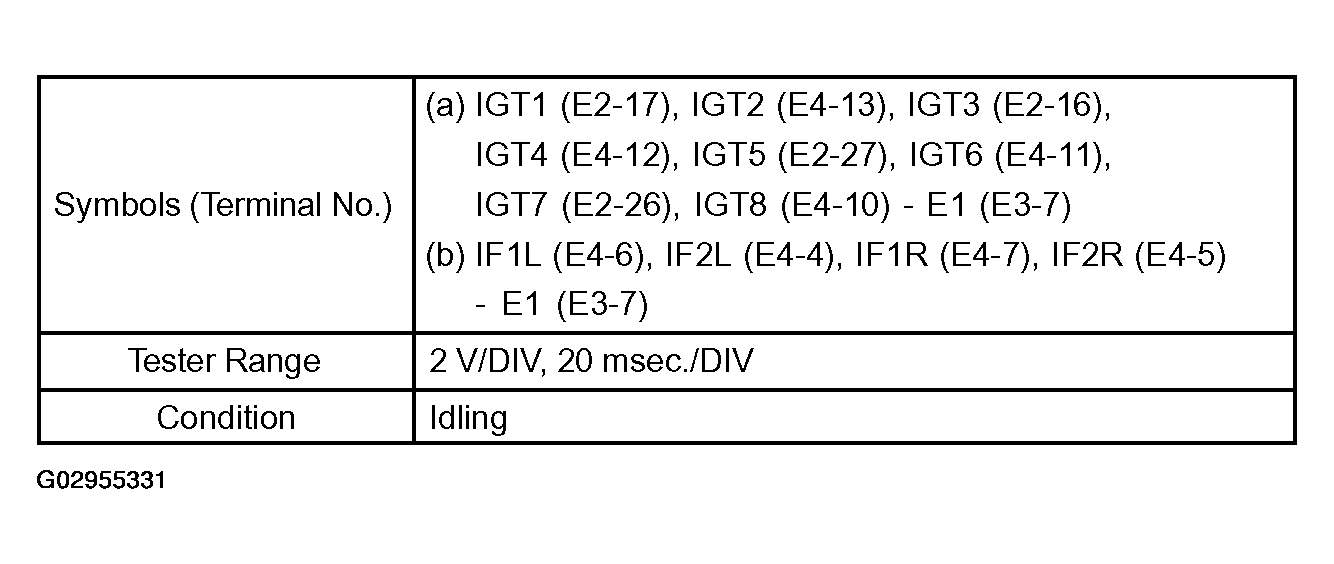

   Fig 1: Igniter IGT Signal Specifications Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

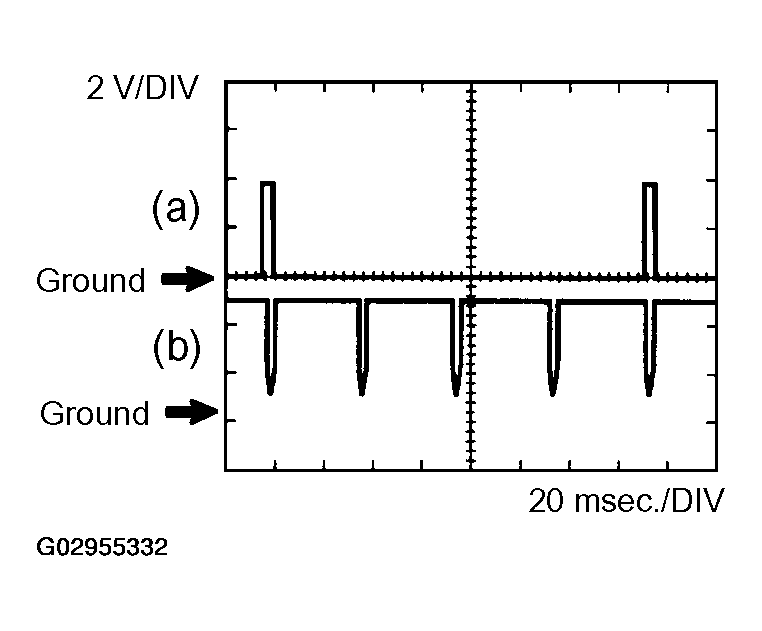

   Fig 2: Igniter IGT Signal - Waveform

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as engine RPM increases.
