Waveform 7

1. Fuel injector

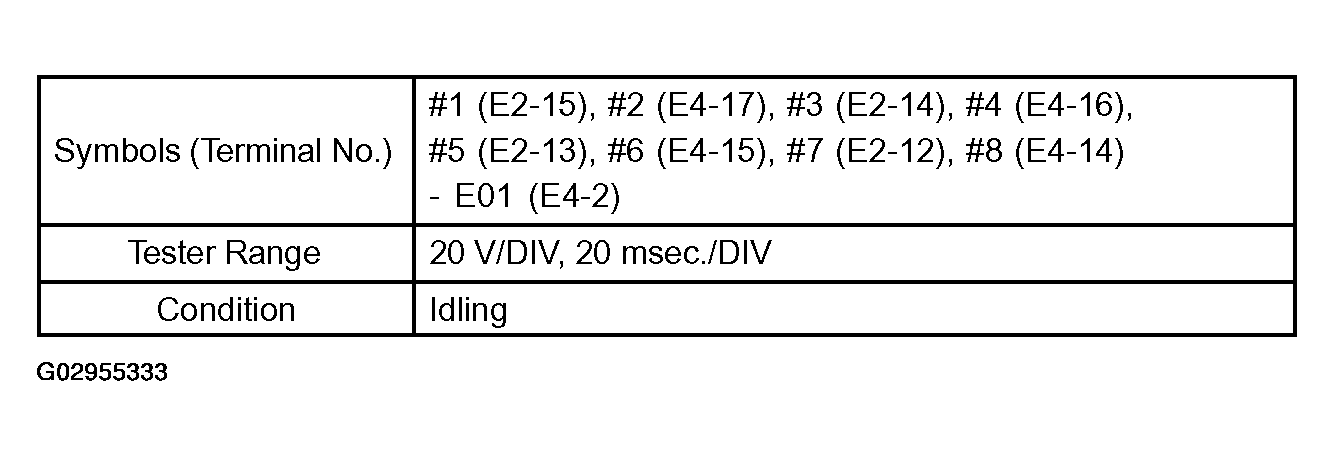

   Fig 1: Fuel Injector Specifications Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as engine rpm increases.

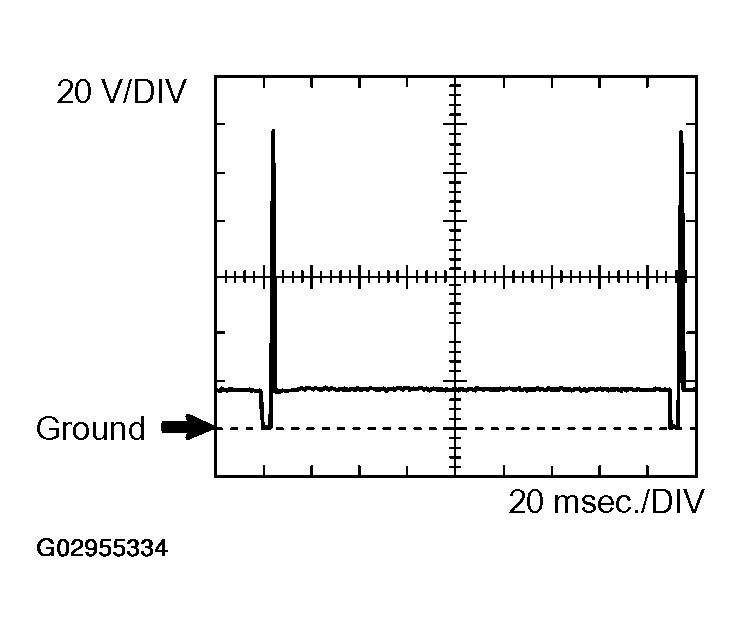

Fig 2: Fuel Injector - Waveform

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
