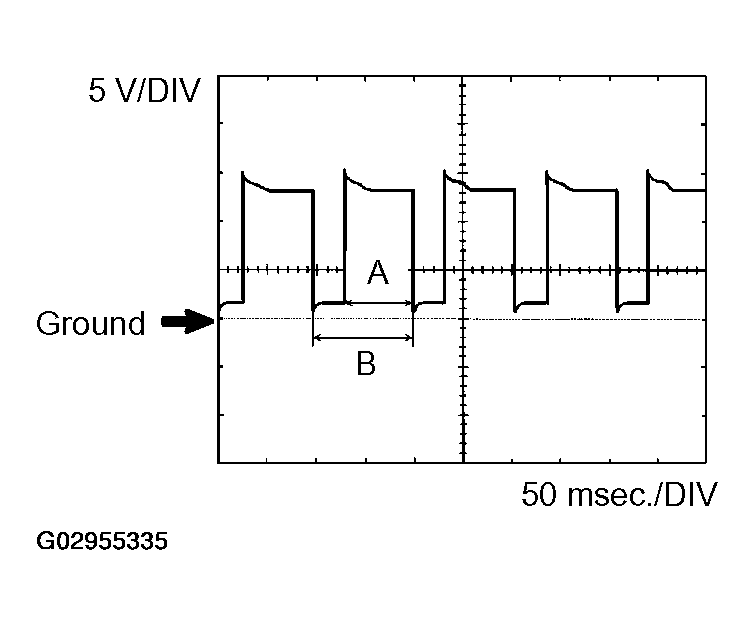

Waveform 8
- EVAP VSV
WAVEFORM SPECIFICATIONS
| Symbols (Terminal No.) | PRG (E2-11) - E01 (E4-2) |
| Tester Range | 5 V/DIV, 50 msec./DIV |
| Condition | Accelerated slowly after engine warmed-up |
HINT:
In cases where the EVAP VSV is usable to purge emissions, the waveform will not be displayed as shown on Fig 1.
Duty ratio for EVAP VSV (%) = A/B x 100
