Rear Seat Belt: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt table (see SEAT BELT - SERVICE SPECIFICATIONS ).

1. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
2. REMOVE REAR SEAT HEADREST PLATE COVER (See  OVERHAUL  )
3. REMOVE WIND DEFLECTOR BOARD ASSY (See  OVERHAUL  )
4. REMOVE REAR SEAT HEADREST PLATE (See  OVERHAUL  )
5. REMOVE REAR SEAT HEADREST ASSY (See  OVERHAUL  )
6. REMOVE REAR SEATBACK ASSY (See  OVERHAUL  )
7. REMOVE REAR SEATBACK BOARD
   1. Remove the bolt.
   2. Remove the 2 clips and seatback board.

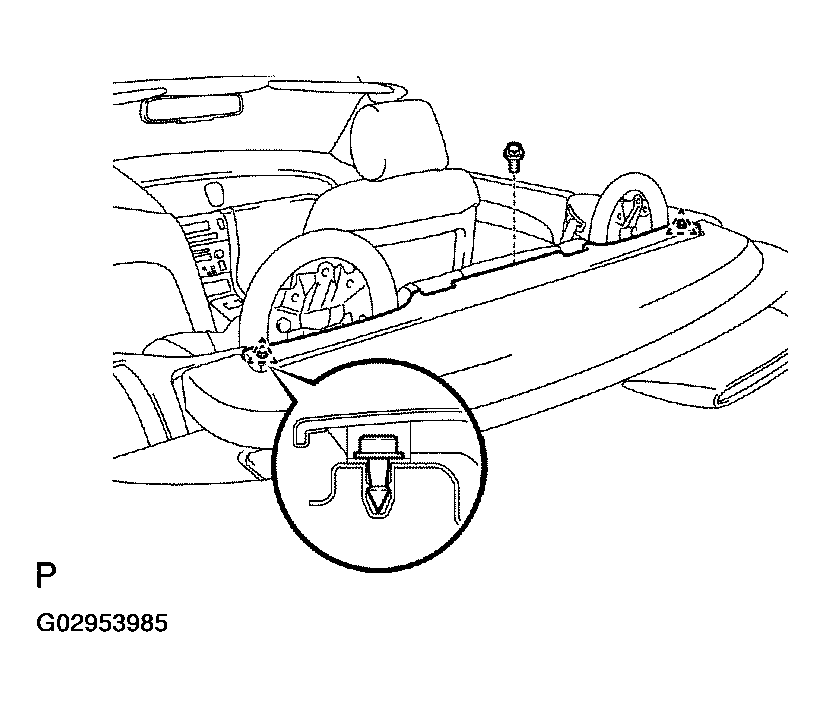

      Fig 1: Removing Rear Seatback Board

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
   1. Using a screwdriver, remove the 2 caps.
   2. Remove the 2 nuts and the tonneau cover.
   3. Remove the 12 clips and luggage compartment trim cover.

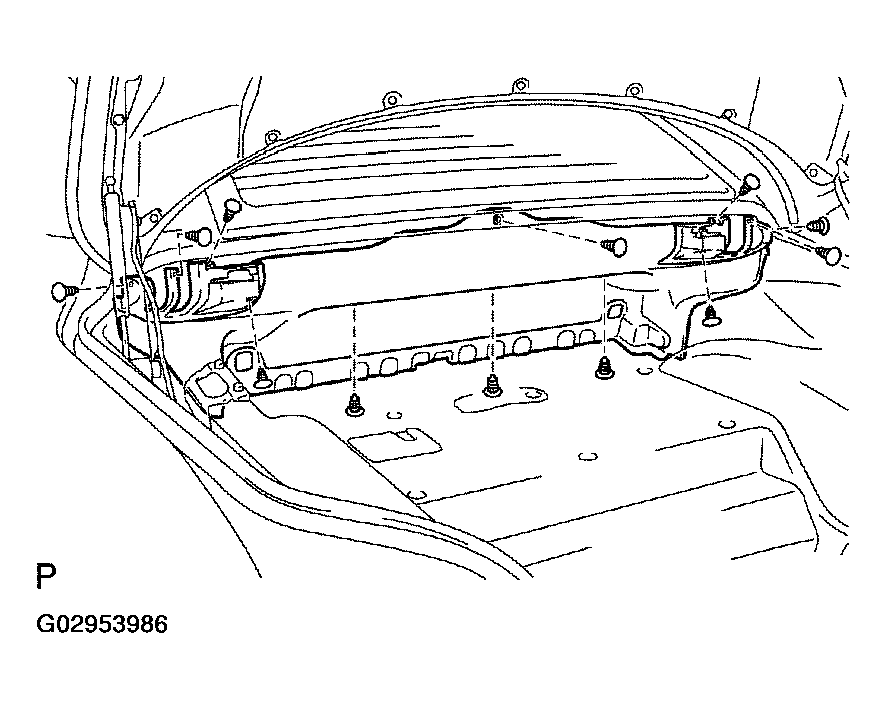

      Fig 2: Removing Luggage Compartment Trim Cover Front

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE REAR SEAT BELT ASSY OUTER
   1. Remove the bolt and floor anchor.
   2. Remove the 2 bolts and seat belt.
10. REMOVE REAR SEAT BELT ASSY INNER
    1. Remove the bolt and seat belt.
11. INSTALL REAR SEAT BELT ASSY OUTER
    NOTE: Do not disassemble the retractor.
    1. Before installing the ELR, check the ELR.
       1. When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

          If operation is not as specified, replace the seat belt assy.

          Fig 3: Checking ELR

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the seat belt with the 2 bolts.

       Torque:

       1. 7.5 N.m (77 kgf.cm, 66 in.lbf) for upper side
       2. 42 N.m (428 kgf.cm, 31 ft.lbf) for lower side
    3. Install the floor anchor with the bolt.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

       Fig 4: Installing Floor Anchor

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. After installing the ELR, check the ELR.
       NOTE: The check should be performed with the outer belt installed.
       1. With the belt installed, check that the belt locks when it is pulled out quickly.

          If operation is not as specified, replace the seat belt assy.

12. INSTALL REAR SEAT BELT ASSY INNER
    1. Install the seat belt with the bolt.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

       NOTE: Do not overlap the anchor part and protruding part of the floor panel.
       Fig 5: Installing Rear Seat Belt Assy Inner

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
