Power Mirror Control System: Location

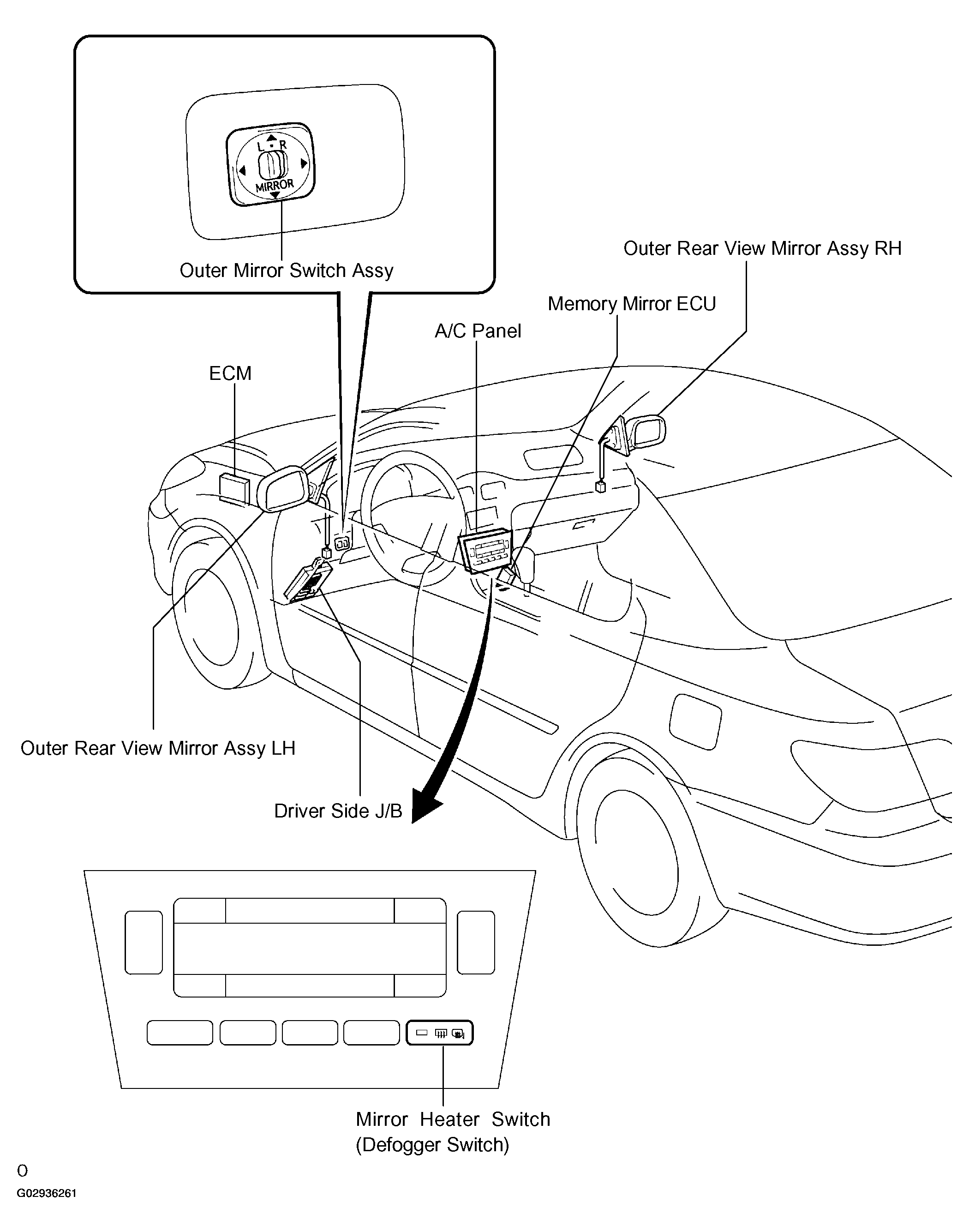

Fig 1: Identifying Power Mirror Control System Components
G02936261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
