Interior Light: Notes

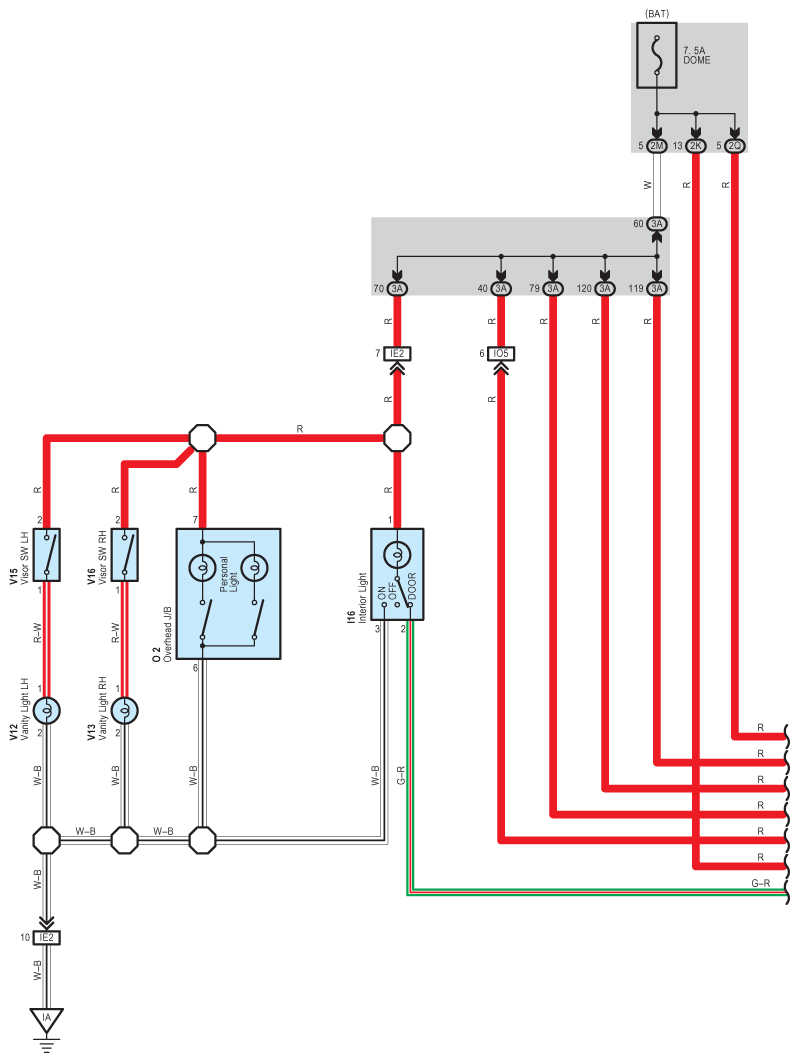

Fig 1: Interior Light - Wiring Diagram (1 Of 4)
G08930024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

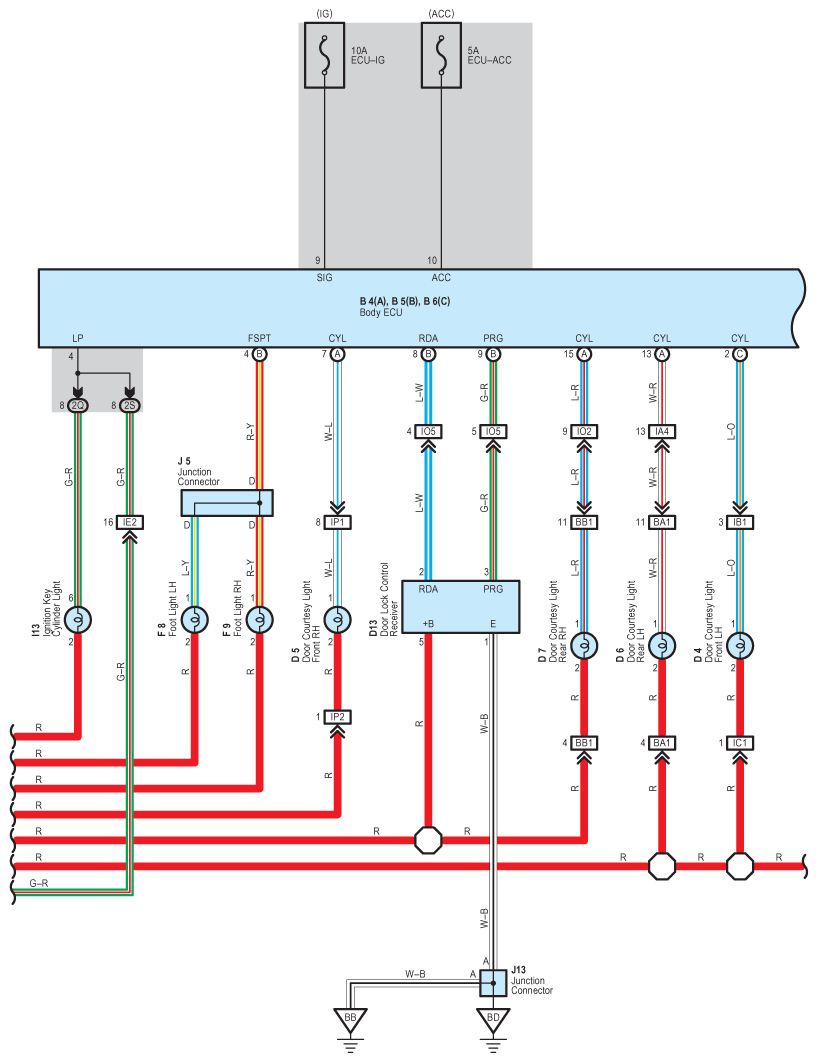

Fig 2: Interior Light - Wiring Diagram (2 Of 4)
G08930025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

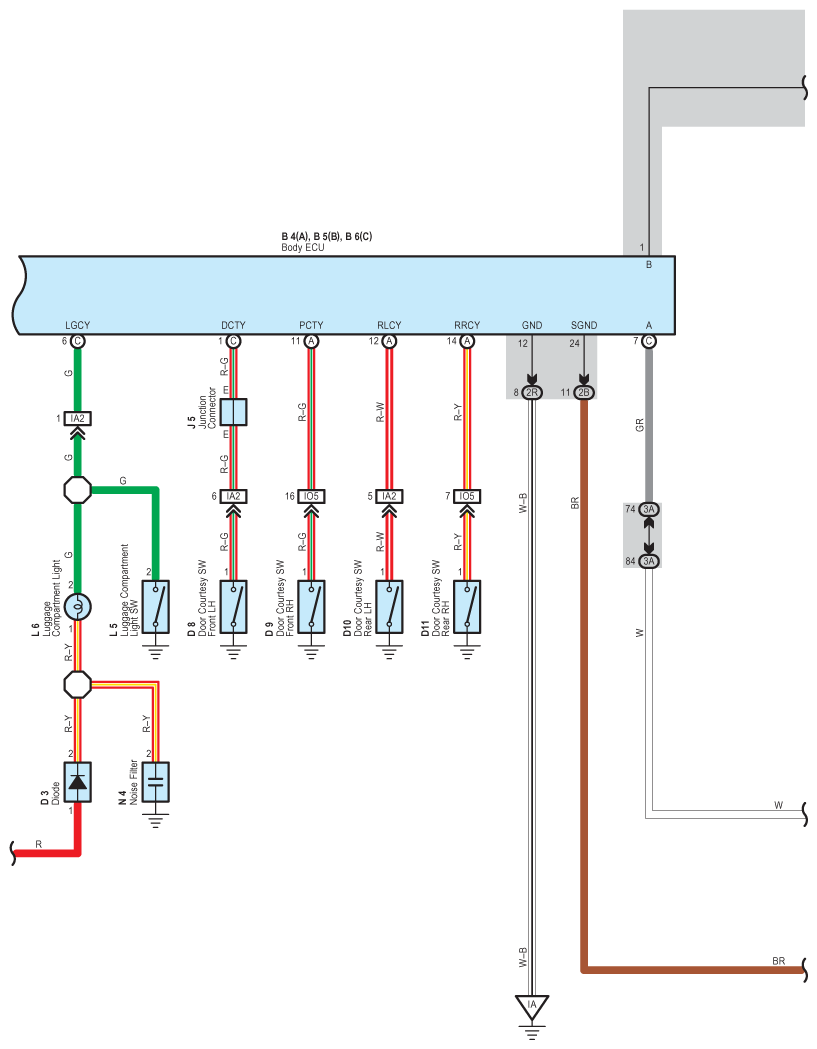

Fig 3: Interior Light - Wiring Diagram (3 Of 4)
G08930026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

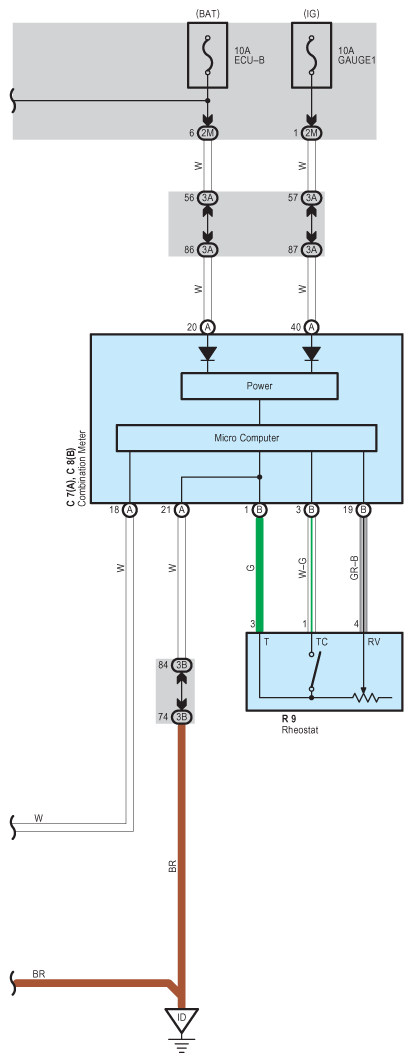

Fig 4: Interior Light - Wiring Diagram (4 Of 4)
G08930027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
