ECM (3MZ-FE): Replacement

  1. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
  2. REMOVE FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (See  REPLACEMENT  )
  4. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See  REPLACEMENT  )
  5. REMOVE STEREO COMPONENT AMPLIFIER ASSY
    1. Disconnect the 3 stereo component amplifier connectors.
    2. Remove the 2 nuts, then remove the stereo component amplifier.

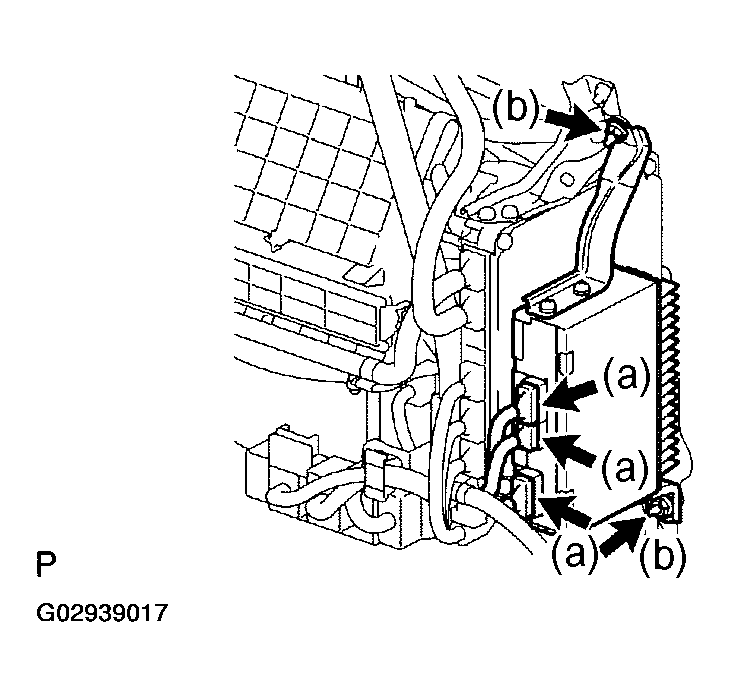

    Fig 1: Removing Stereo Component Amplifier Assembly
    G02939017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ECM
    1. Remove the wire harness clamp.
    2. Disconnect the 5 ECM connectors.
    3. Remove the 2 nuts, then remove the ECM.

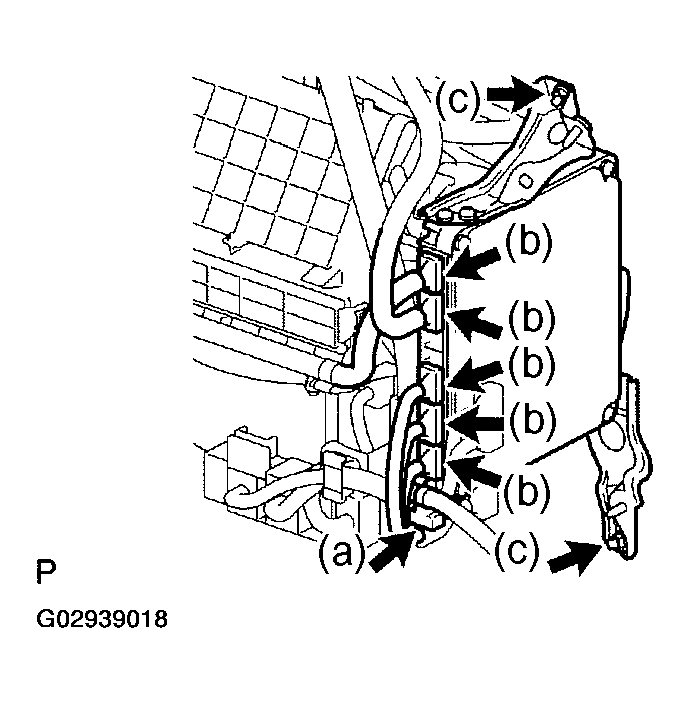

    Fig 2: Removing ECM
    G02939018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE ECM BRACKET
    1. Remove the 2 screws, then remove the ECM bracket.

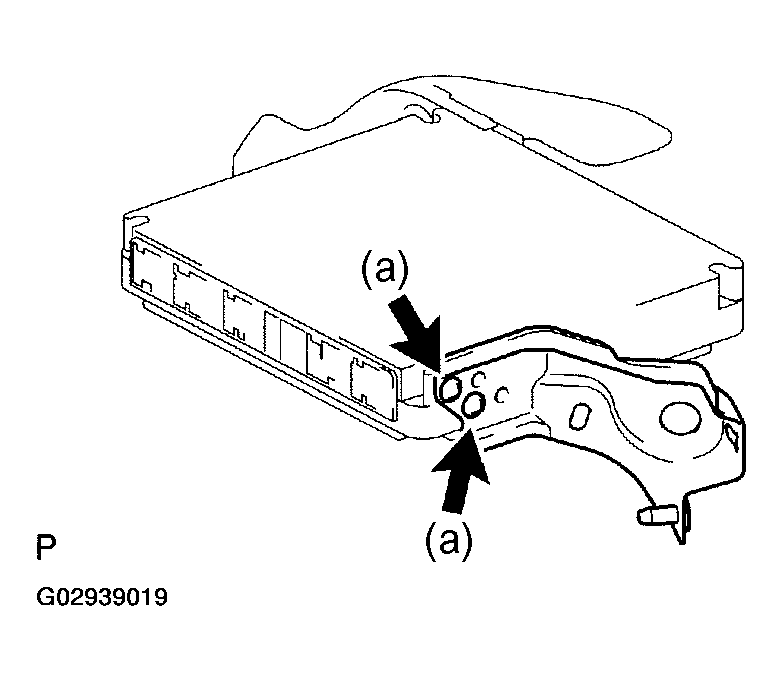

    Fig 3: Removing ECM Bracket
    G02939019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE ECM BRACKET NO.2
    1. Remove the 2 screws, then remove the ECM bracket No. 2.

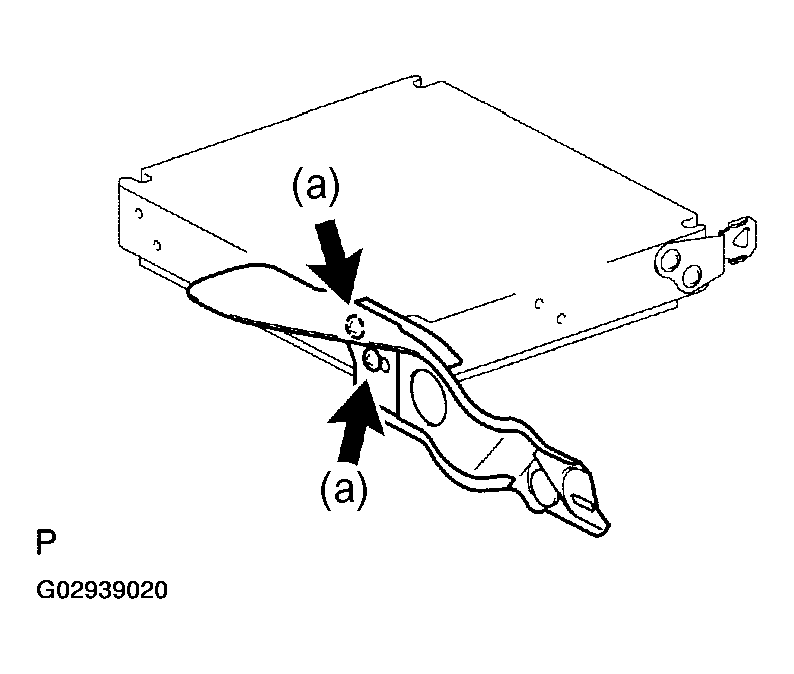

    Fig 4: Removing ECM Bracket No-2
    G02939020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE ECM BRACKET NO.3
    1. Remove the 2 screws, then remove the ECM bracket No 3.

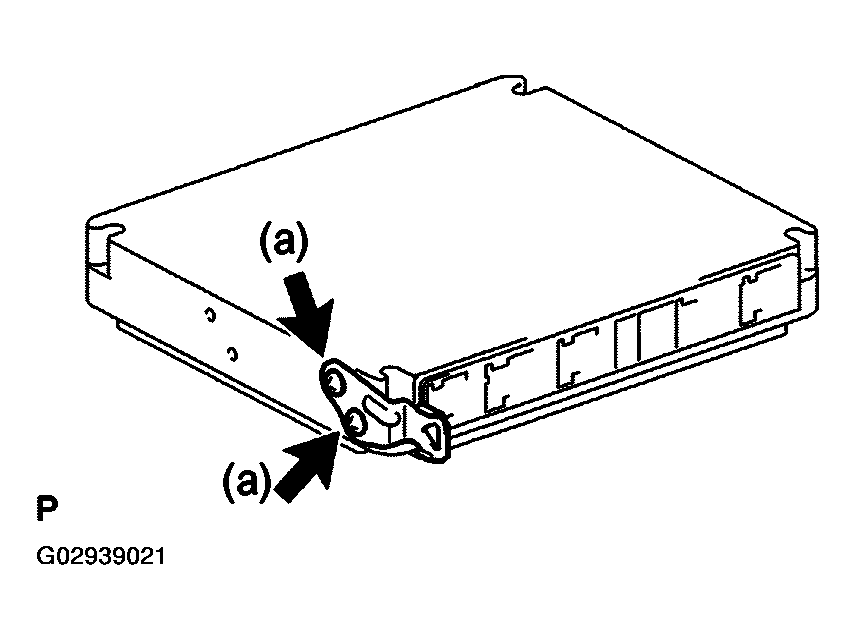

    Fig 5: Removing ECM Bracket No-3
    G02939021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL ECM BRACKET NO.3
  11. INSTALL ECM BRACKET NO.2
  12. INSTALL ECM BRACKET
  13. INSTALL ECM
    1. Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
  14. INSTALL STEREO COMPONENT AMPLIFIER ASSY
    1. Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
  15. INSTALL INSTRUMENT PANEL SUB-ASSY LOWER
  16. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
  17. INSTALL FRONT DOOR SCUFF PLATE RH
  18. CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
    1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
  19. RESET MEMORY (See  INITIALIZATION  )
  20. SYSTEM INITIALIZATION (See  CHARGING SYSTEM (3MZ-FE)  )>
