Restraints Control Systems: Preparation: Cooling: Preparation

SST

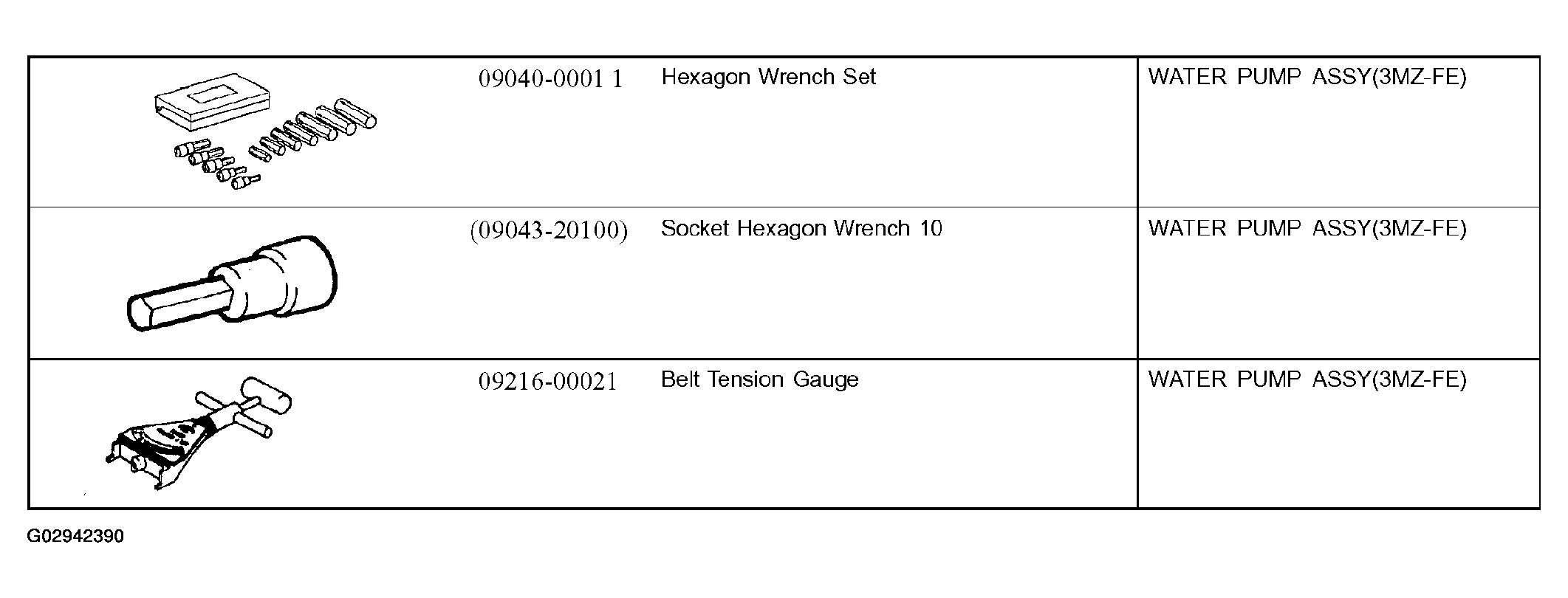

Fig 1: Cooling System SST Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

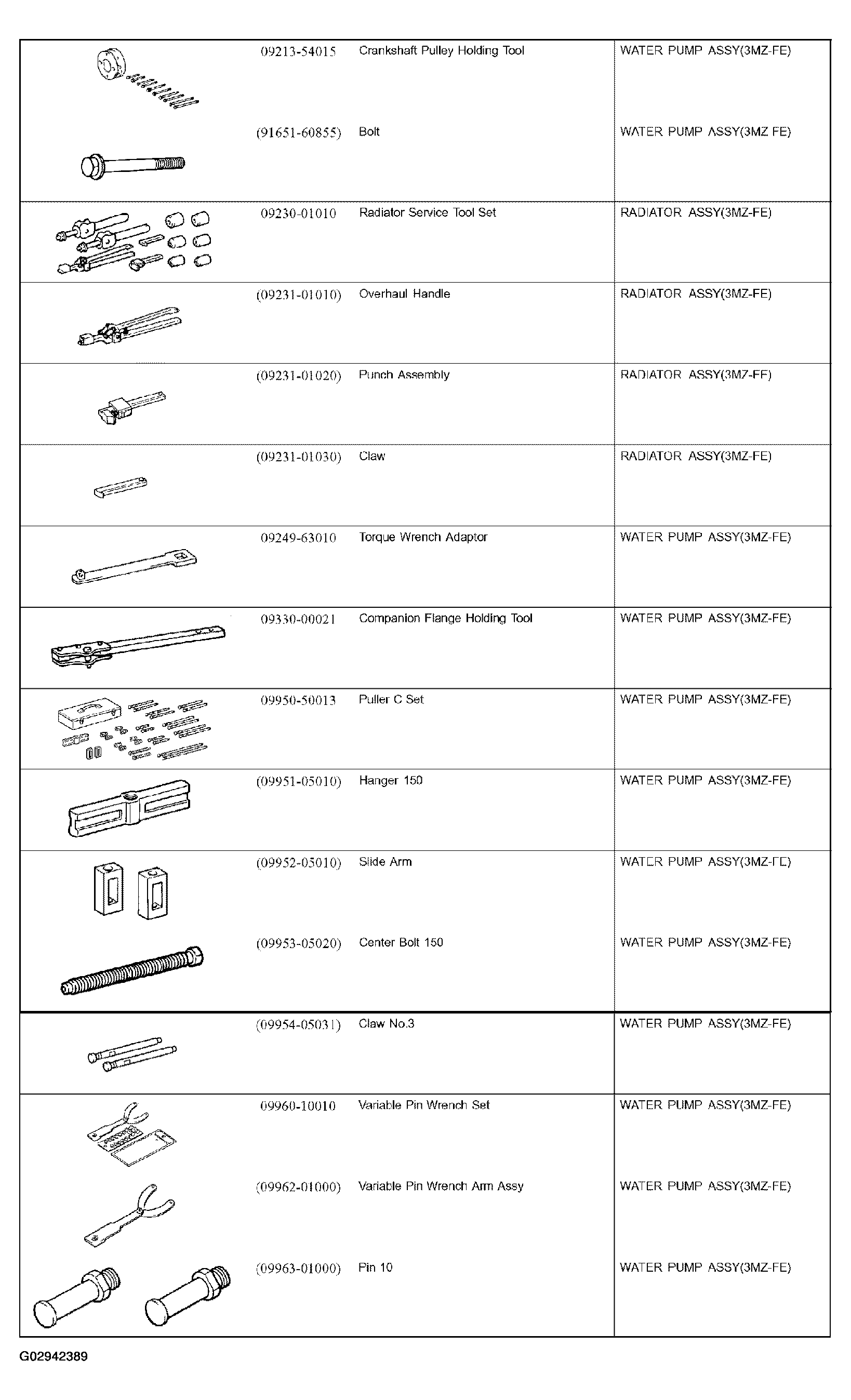

Fig 2: Cooling System Recommended Tools Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

COOLING SYSTEM EQUIPMENT

Ohmmeter
Radiator cap tester
thermometer
Torque wrench
Slide calipers
Heater

SSM

COOLING SYSTEM SSM

08826-00080 Seal Packing Black or equivalent (FIPG)

WATER PUMP ASSY(3MZ-FE)

Coolant

COOLANT CAPACITY AND CLASSIFICATION

Item	Capacity	Classification
Engine coolant	9.7 liters (10.3 US qts, 8.5 lmp. qts)	"Toyota Super Long Life Coolant" or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology
