Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  1. Vehicle Identification Number
  2. Certification Label

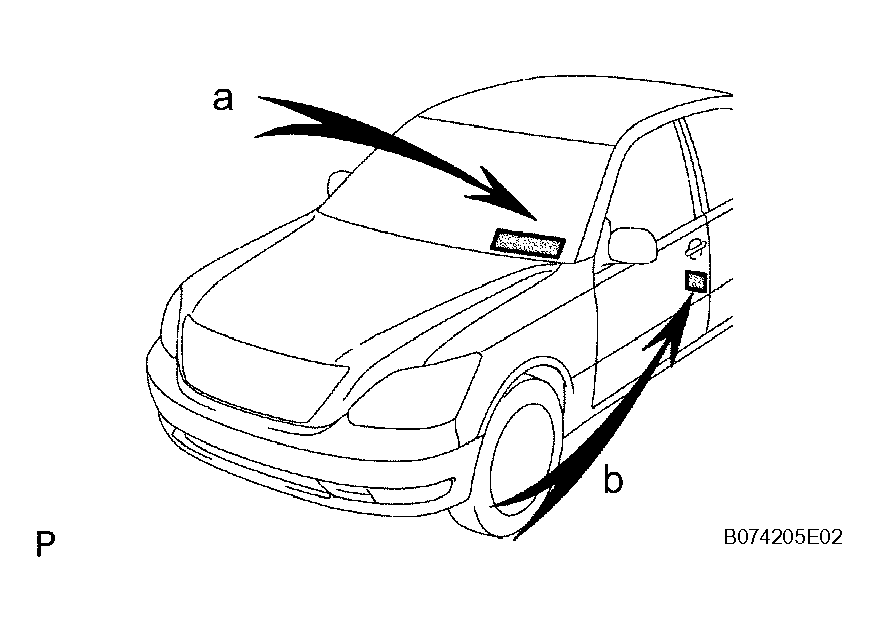

    Fig 1: Identifying Certification Label Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustration.
  1. Engine Serial Number

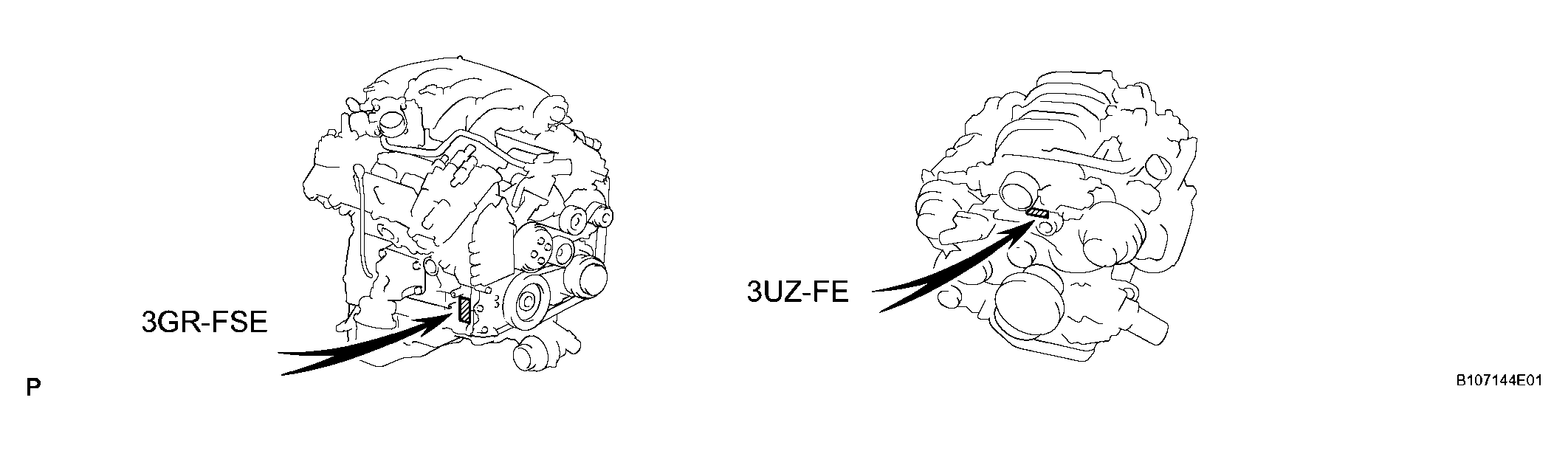

    Fig 2: Identifying Engine Serial Number Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Transmission Serial Number

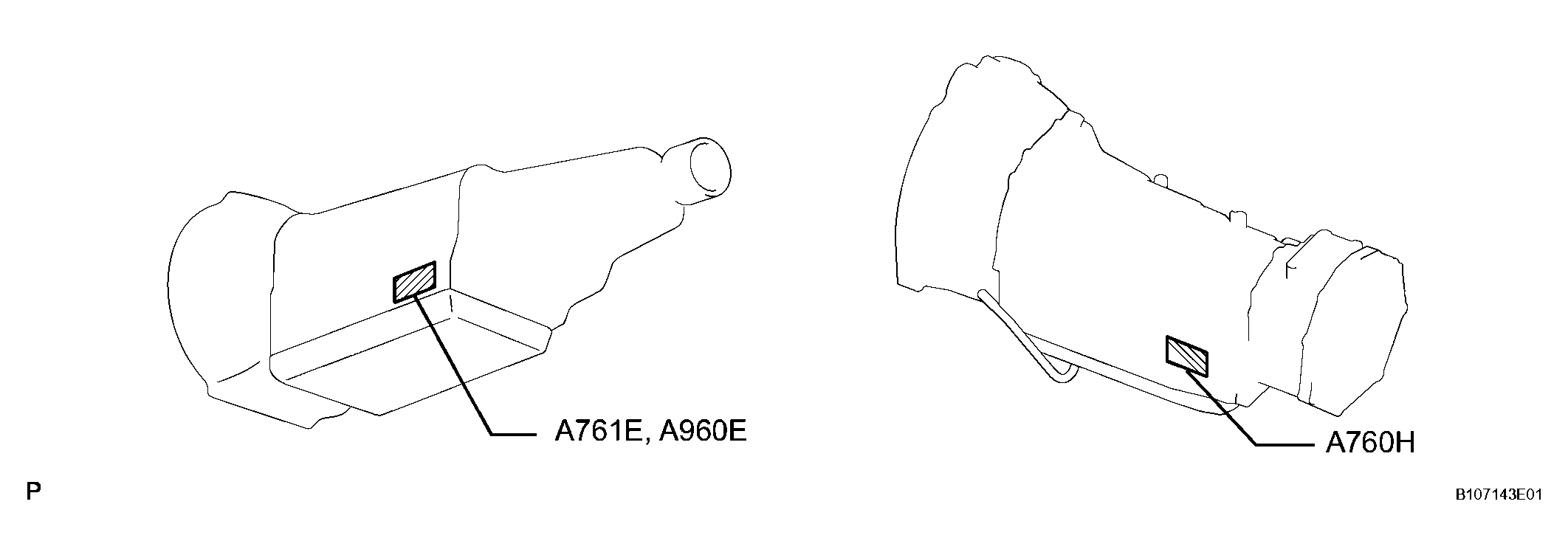

  Fig 3: Identifying Transmission Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
