Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

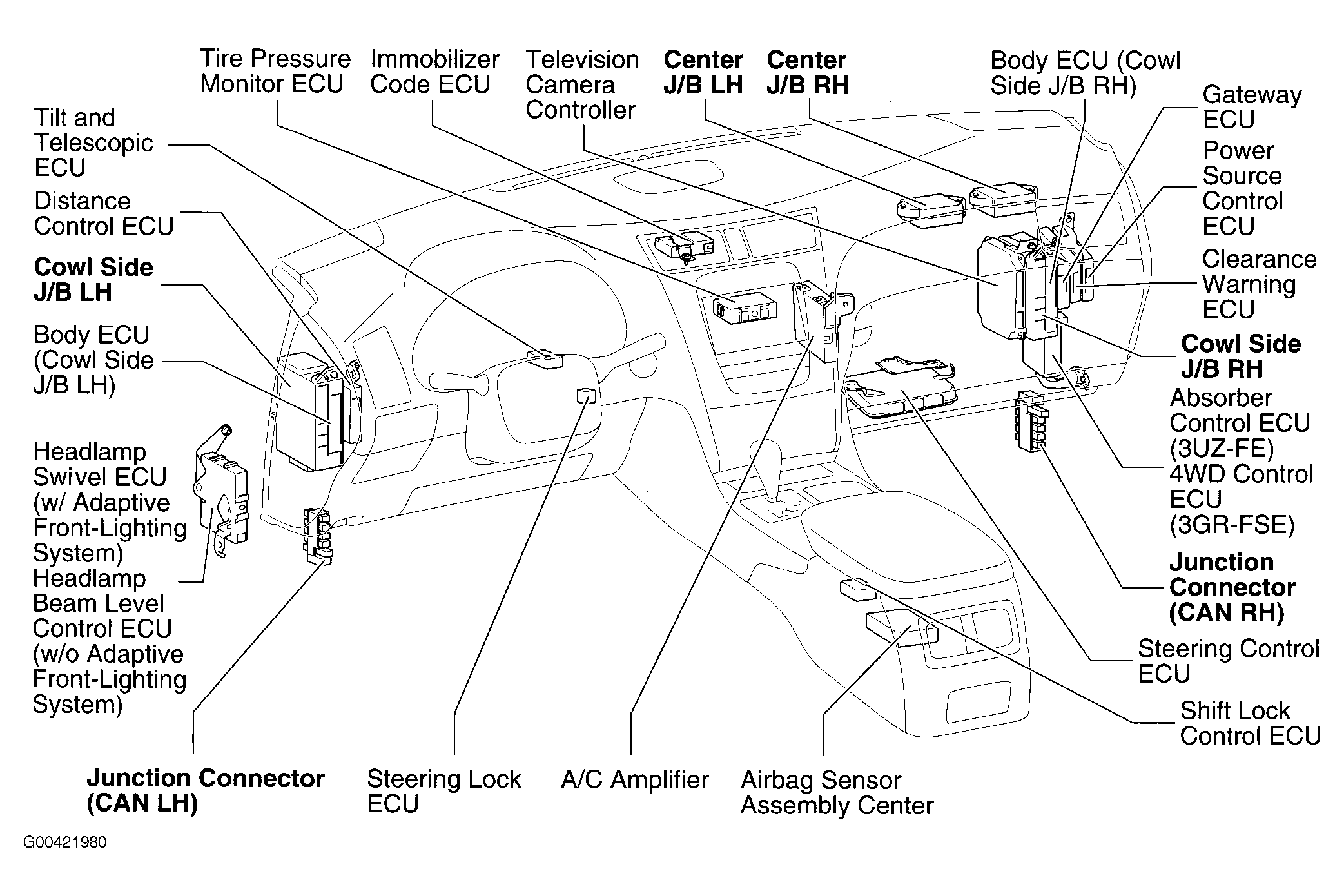

| Center J/B Left | Behind right side of dash. See Figure. |
| Center J/B Right | Behind right side of dash. See Figure. |
| Cowl Side J/B Left | Behind left side of dash. See Figure. |
| Cowl Side J/B Right | Behind right side of dash. See Figure. |

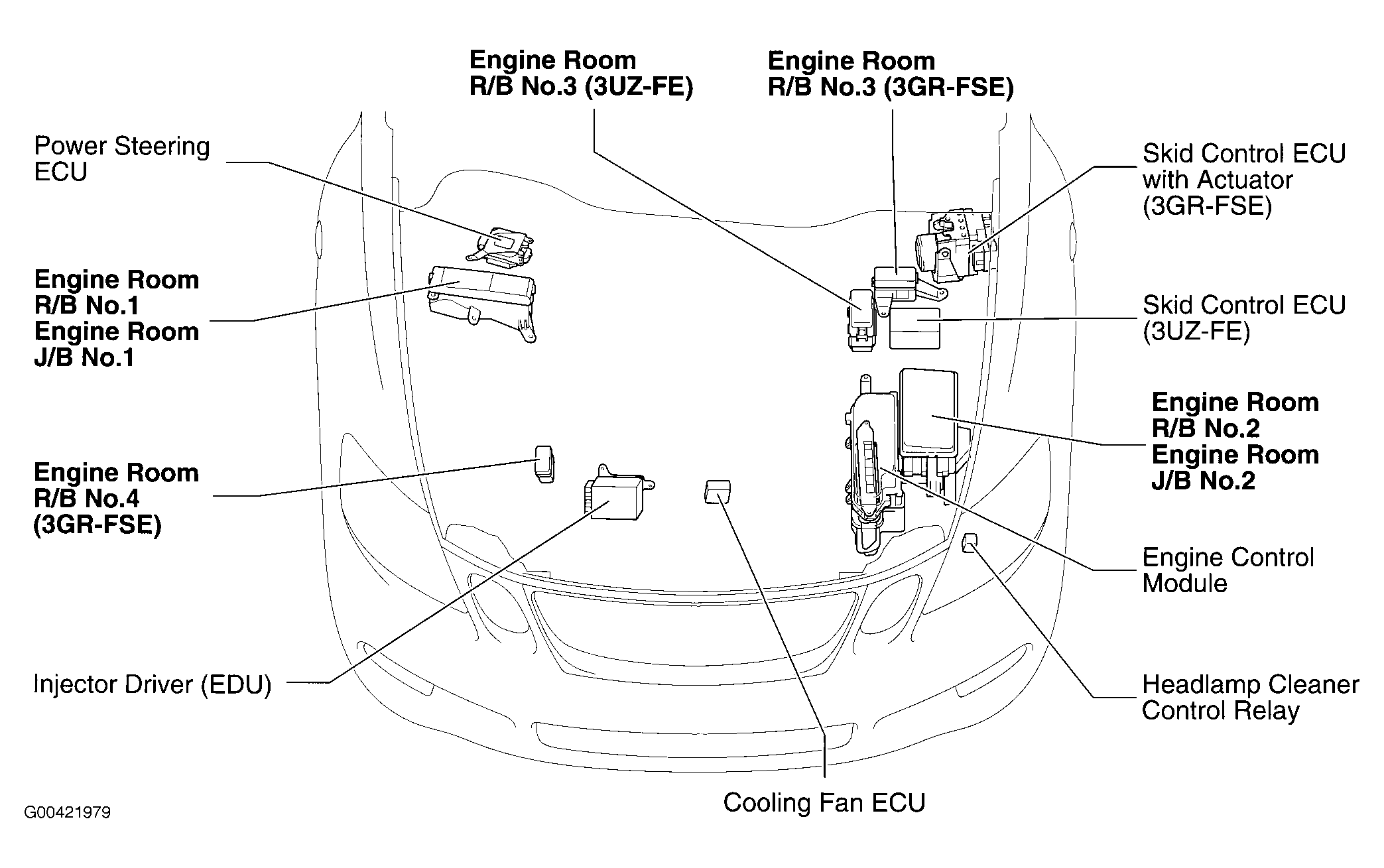

| Engine Room J/B No. 1 | Right rear of engine compartment. See Figure. |
| Engine Room J/B No. 2 | Left side of engine compartment. See Figure. |
| Engine Room R/B No. 1 | Right rear of engine compartment. See Figure. |
| Engine Room R/B No. 2 | Left side of engine compartment. See Figure. |
| Engine Room R/B No. 3 (3.0L) | Left rear of engine compartment. See Figure. |
| Engine Room R/B No. 3 (4.3L) | Left rear of engine compartment. See Figure. |
| Engine Room R/B No. 4 | Right side of engine compartment. See Figure. |

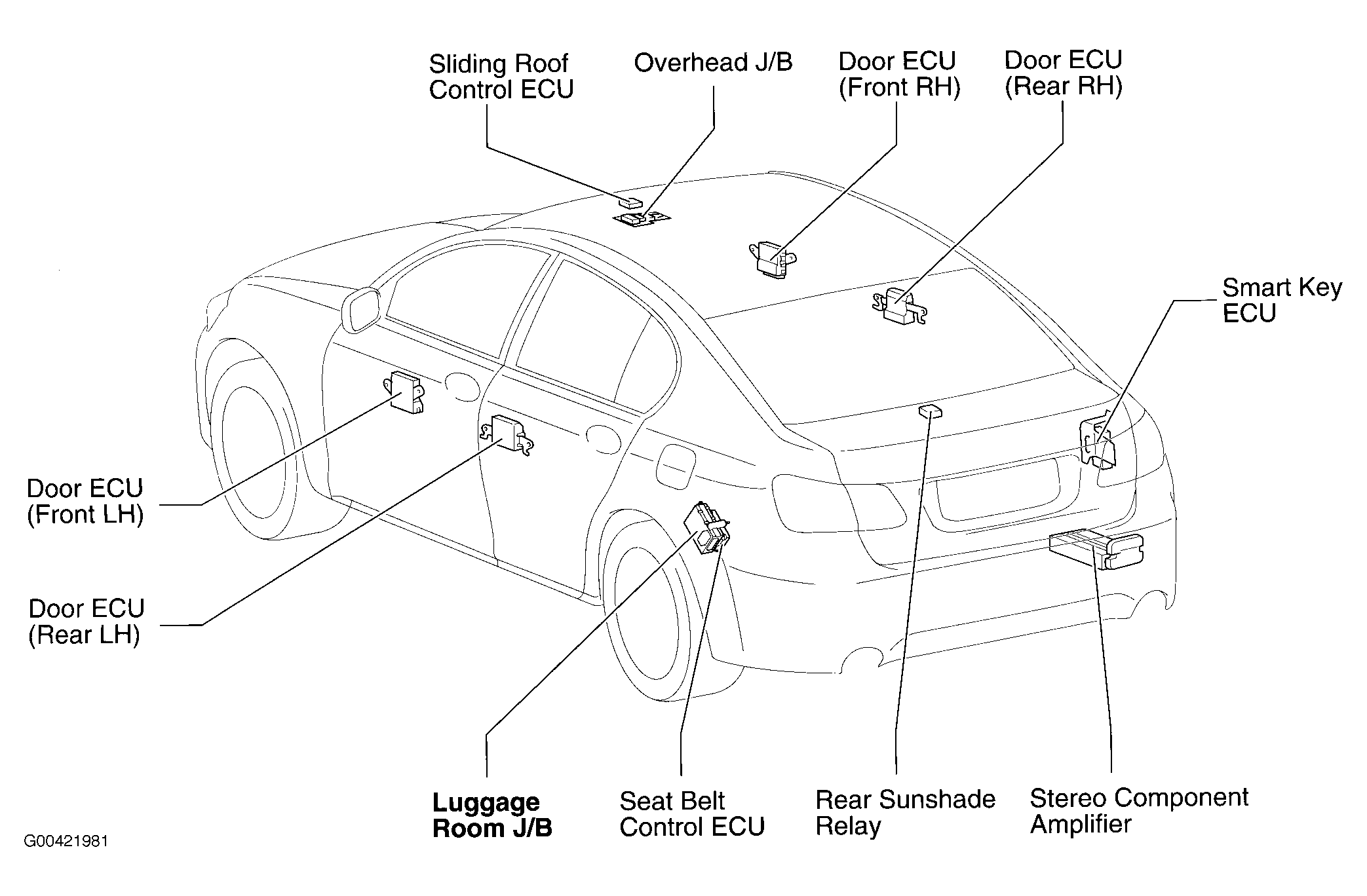

| Luggage Room J/B | Left side of luggage compartment. See Figure. |
| Overhead J/B | In overhead console. See Figure. |
