Supplemental Restraint System: SST

SST - SUPPLEMENTAL RESTRAINT SYSTEM

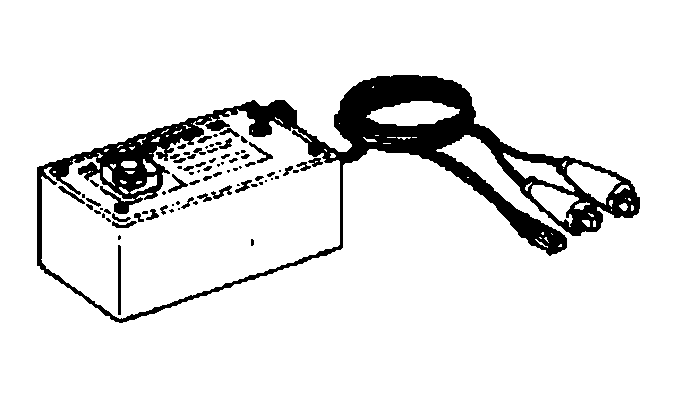

G04026696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00700 SRS Airbag Deployment Tool

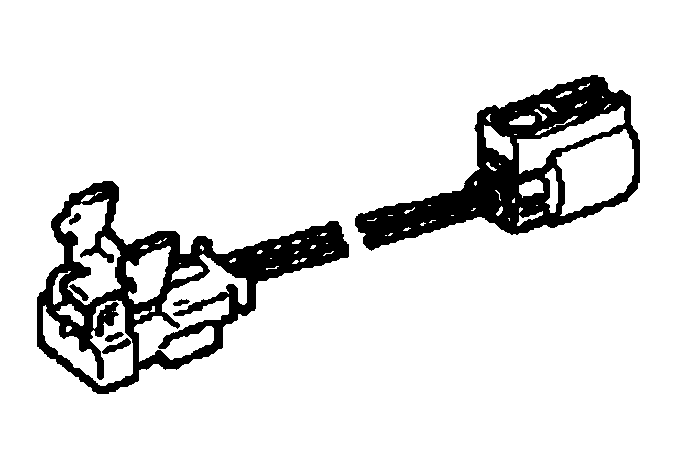

G04026697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00750 Airbag Deployment Wire Sub-harness No.3

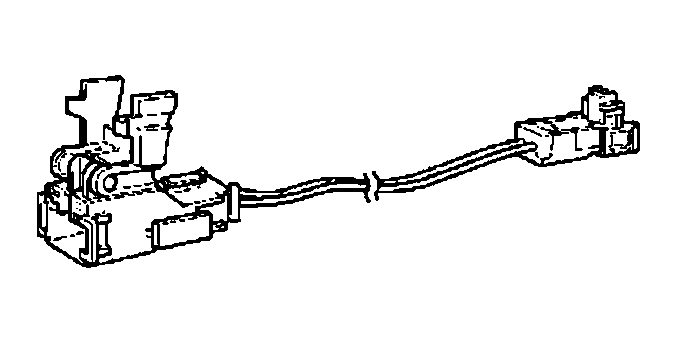

G04026698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00770 Airbag Deployment Wire Sub-harness No.5
G04026699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00780 Airbag Deployment Wire Sub-harness No.6

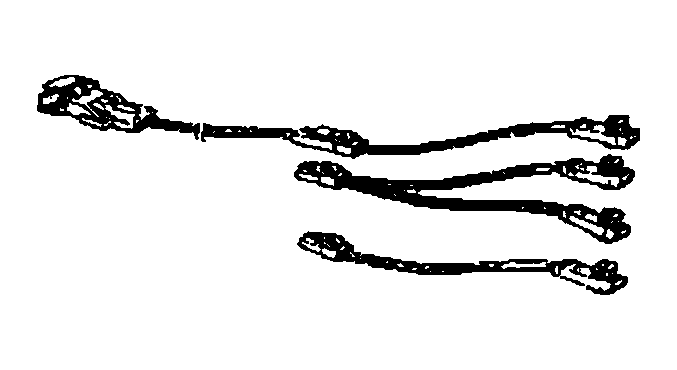

G04026700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00802 Airbag Deployment Wire Sub-Harness No. 8

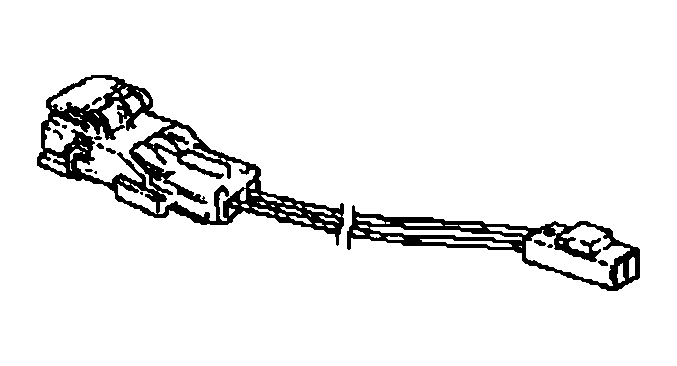

G04026701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-10801) Wire A

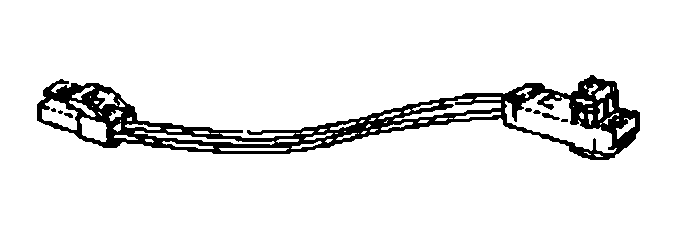

G04026702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-20801) Wire B

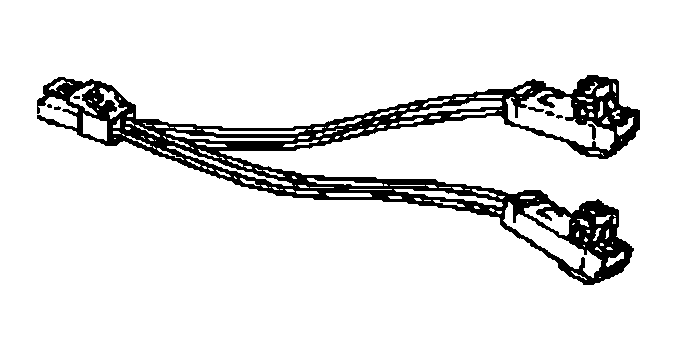

G04026703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-30801) Wire C
G04026704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18060 SRS Check Wire
