Camshaft Position Sensor: Installation

INSTALL CAMSHAFT POSITION SENSOR
1. Install the sensor with the bolt and stud bolt.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

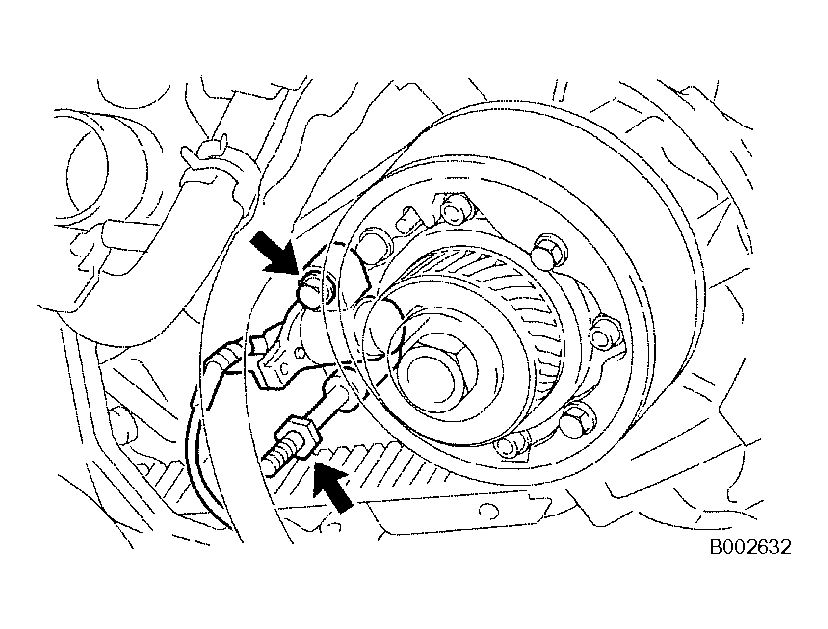

  Fig 1: Identifying Camshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 TIMING BELT COVER SUBASSEMBLY LH
1. Install the gasket to the cover.
2. Run the camshaft position sensor wire through the cover hole.

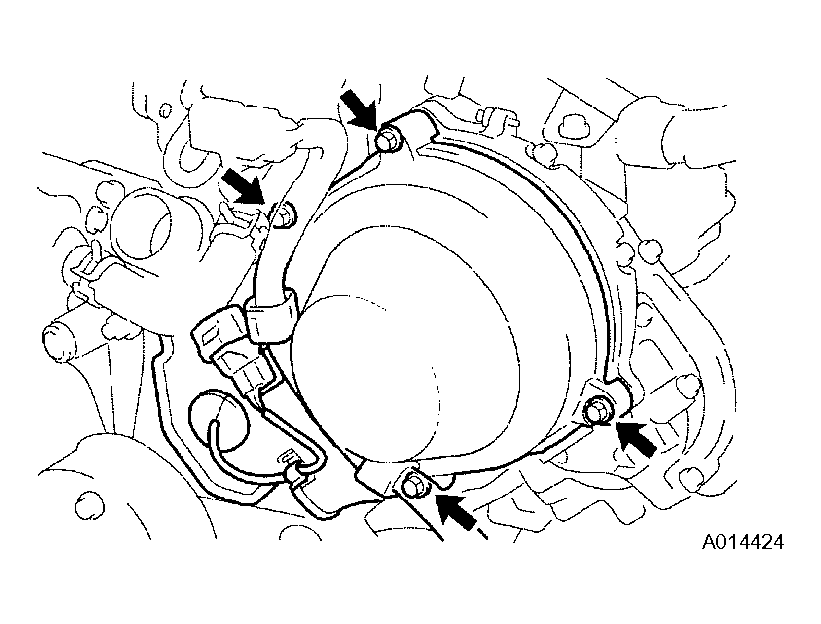

  Fig 2: Identifying Timing Belt Cover Subassembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the cover with the 4 bolts.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
4. Install the wire grommet to the cover.
5. Install the sensor connector to the sensor holder.
6. Connect the sensor connector.
7. Install the sensor wire to the wire clamp on the cover.
8. Install the engine wire to the 2 wire clamps on the cover.
9. Connect the 2 water bypass hoses as shown in the illustration.
10. Install the No. 3 water bypass pipe to the cover with the cap nut.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

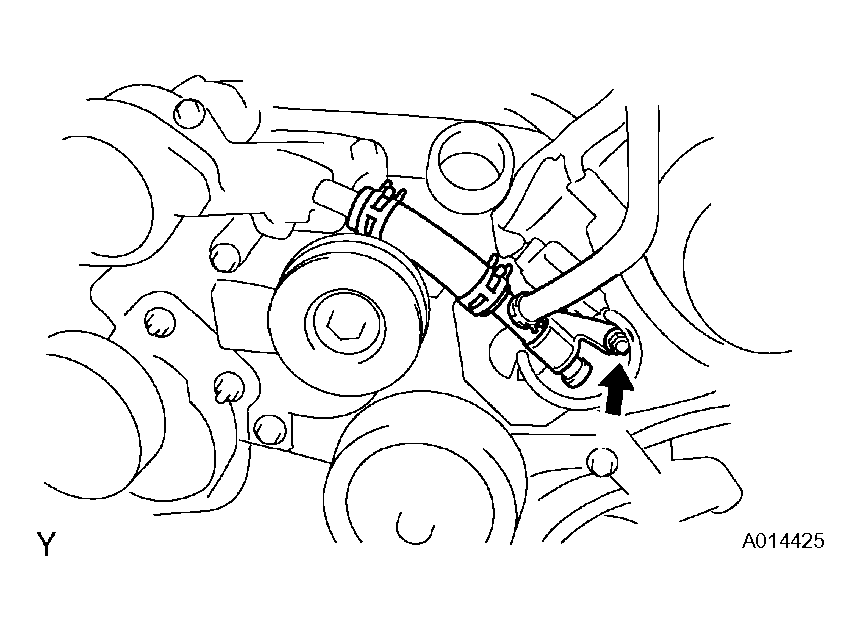

  Fig 3: Identifying Water By-Pass Pipe To Cover With Cap Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR HOSE INLET
INSTALL V-BANK COVER
1. Install the V-bank cover with the 2 nuts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
INSTALL ENGINE ROOM SIDE COVER LH ( 6 )
INSTALL COOL AIR INTAKE DUCT SEAL ( 8 )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
ADD ENGINE COOLANT ( ON-VEHICLE INSPECTION )
CHECK FOR ENGINE COOLANT LEAKS
1. Check for engine coolant leaks (ON-VEHICLE INSPECTION ).
