Crankshaft Position Sensor: Inspection

INSPECT CRANKSHAFT POSITION SENSOR

Measure the resistance between the terminals.

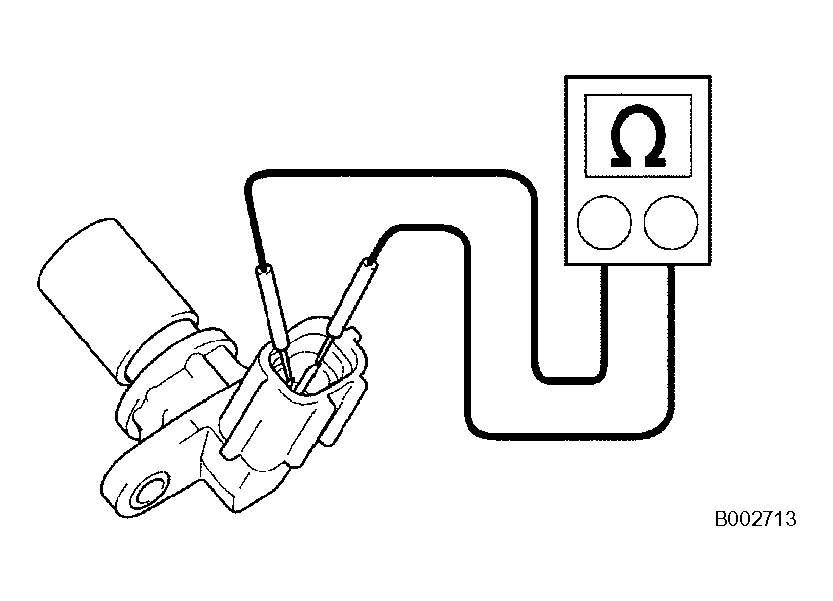

Fig 1: Measuring Resistance Between Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

TEMPERATURE AND SPECIFIED CONDITION CHART

Temperature	Specified Condition
Cold	1,630 to 2,740 Ω
Hot	2,065 to 3,225 Ω

NOTE: In this table above, the terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).

If the resistance is not as specified, replace the sensor.
