Crankshaft Position Sensor: Installation

INSTALL CRANKSHAFT POSITION SENSOR
1. Install the sensor with the bolt.
  Torque: 6.5 N*m (66 kgf*cm, 57 in.*lbf)
2. Connect the sensor connector.

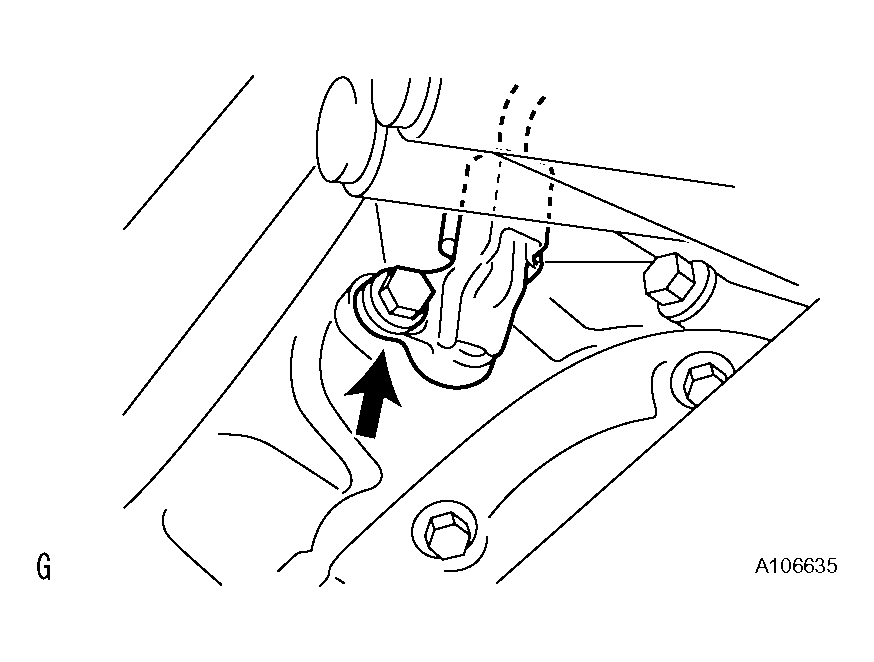

  Fig 1: Identifying Crankshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL FILTER ELEMENT SERVICE HOLE COVER ( REPLACEMENT )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
