Engine Coolant Temperature Sensor: Installation

INSTALL ENGINE COOLANT TEMPERATURE SENSOR
1. Install a new gasket to the sensor.
2. Install the sensor.

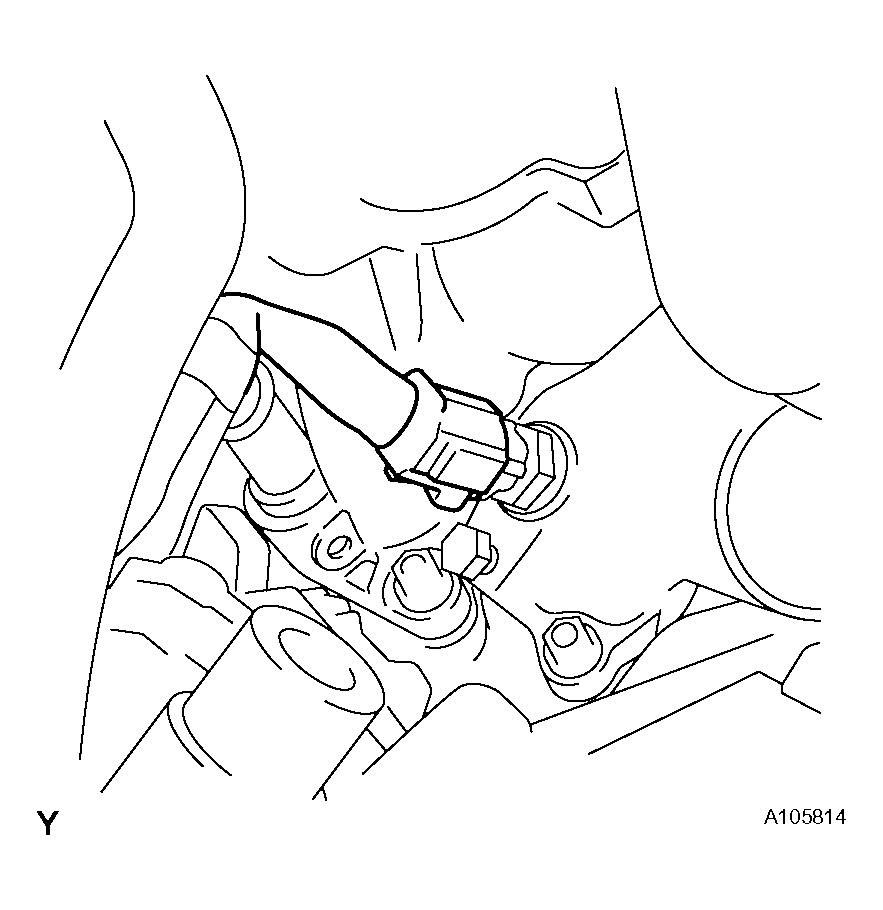

  Fig 1: Identifying A New Gasket To Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
3. Install a new gasket to the sensor.
INSTALL INTAKE AIR CONNECTOR PIPE ( 2 )
INSTALL NO. 1 AIR CLEANER INLET ( 4 )
INSTALL ENGINE ROOM SIDE COVER RH ( 7 )
INSTALL COOL AIR INTAKE DUCT SEAL ( 8 )
INSTALL V-BANK COVER ( )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
ADD ENGINE COOLANT ( ON-VEHICLE INSPECTION )
CHECK FOR ENGINE COOLANT LEAKS
1. Check for engine coolant leaks (ON-VEHICLE INSPECTION ).
