Engine Coolant Temperature Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. DRAIN ENGINE COOLANT ( ON-VEHICLE INSPECTION  )
  3. REMOVE COOL AIR INTAKE DUCT SEAL (  2  )
  4. REMOVE ENGINE ROOM SIDE COVER RH (  3  )
  5. REMOVE V-BANK COVER (  6  )
  6. REMOVE NO. 1 AIR CLEANER INLET (  6  )
  7. REMOVE INTAKE AIR CONNECTOR PIPE (  8  )
  8. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the sensor connector.
    2. Remove the sensor.
    3. Remove the gasket from the sensor.

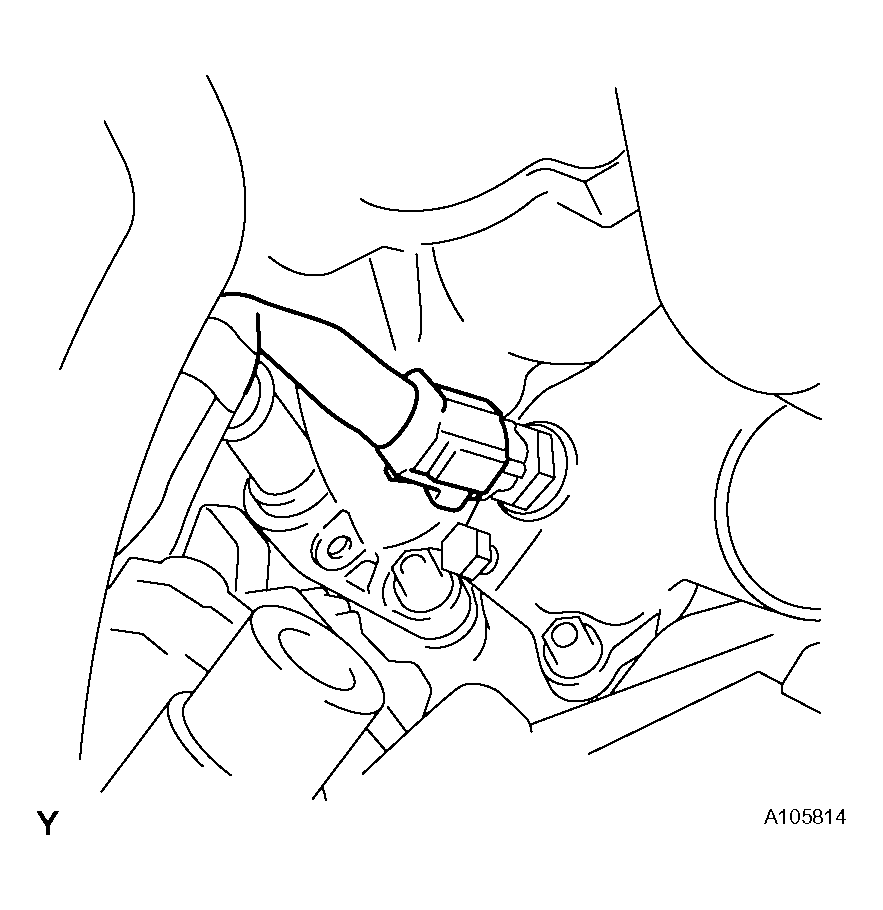

      Fig 1: Identifying Gasket From Sensor
      G04027211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
