Knock Sensor: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE ( REMOVAL  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. DRAIN ENGINE COOLANT ( ON-VEHICLE INSPECTION  )
  4. REMOVE INTAKE MANIFOLD ASSEMBLY
    1. Remove the intake manifold (ON-VEHICLE INSPECTION ).
  5. REMOVE KNOCK SENSOR
    1. Disconnect the 2 knock sensor connectors.
    2. Remove the 2 nuts and 2 knock sensors.

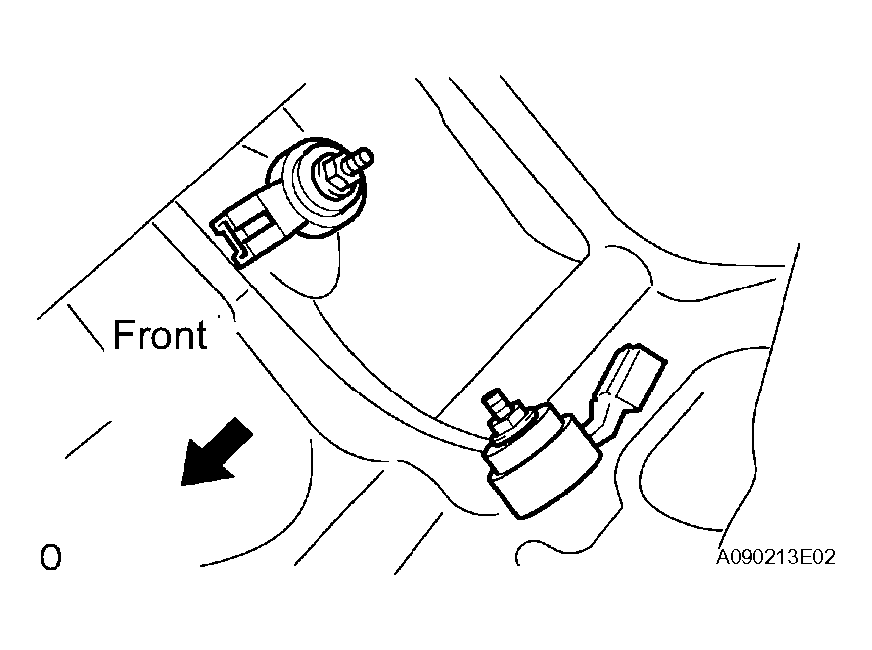

      Fig 1: Identifying Knock Sensors
      G04027227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
