Check Mode Procedure

HINT:

Intelligent tester only:

Compared to the normal mode, check mode is more sensitive to malfunctions. Therefore, check mode can detect the malfunctions that cannot be detected by normal mode.

NOTE: All the stored DTCs and freeze frame data are erased if: 1) the ECM is changed from normal mode to check mode or vice versa; or 2) the engine switch is turned from on (IG) to on (ACC) or off while in check mode. Before changing modes, always check and make a note of any DTCs and freeze frame data.

CHECK MODE PROCEDURE (Using the intelligent tester)
1. Check and ensure the following conditions:
  1. Positive (+) battery voltage of 11 V or more.
  2. Throttle valve fully closed.
  3. Transmission in the P or N position.
  4. A/C switch OFF.
2. Turn the engine switch off.
3. Connect the intelligent tester to the DLC3.
4. Turn the engine switch on (ACC).
5. Turn the tester ON.
6. Enter the following menus items: DIAGNOSIS / ENHANCED OBD ll / CHECK MODE.
7. Switch the ECM from normal mode to check mode.

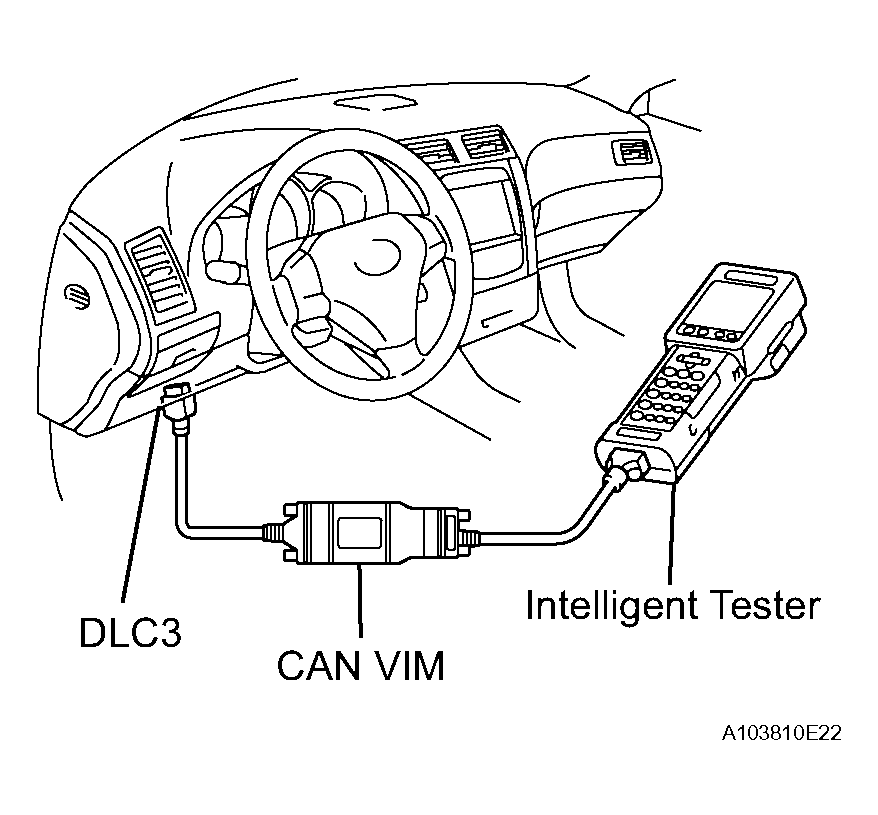

  Fig 1: Identifying Intelligent Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

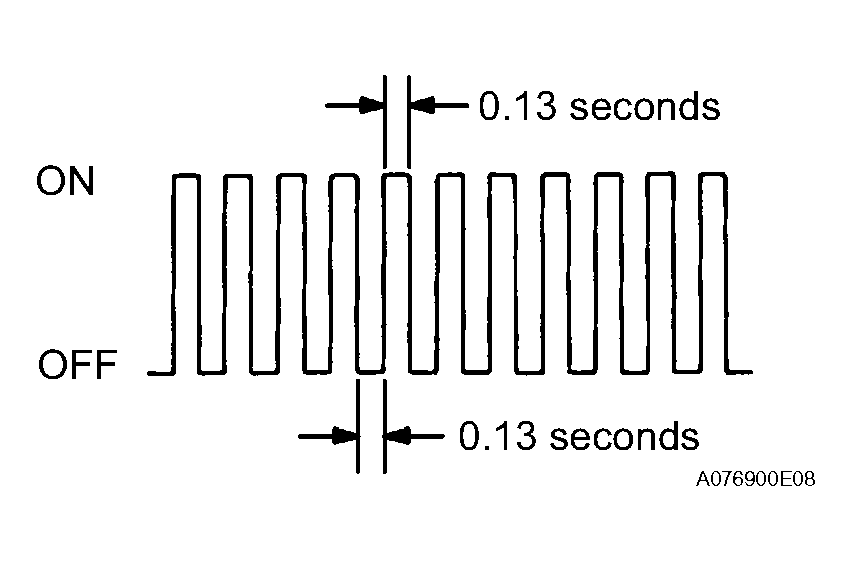

8. Make sure the MIL flashes as shown in the illustration.
9. Start the engine.
10. Make sure the MIL turns OFF.
11. Simulate the conditions of the malfunction described by the customer.
12. Check DTCs and freeze frame data using the tester.

  Fig 2: Identifying DTCS And Freeze Frame Data Using Tester
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
