Throttle Body: Installation

INSTALL THROTTLE BODY
1. Install a new gasket and the throttle body with the 2 bolts and 2 nuts.

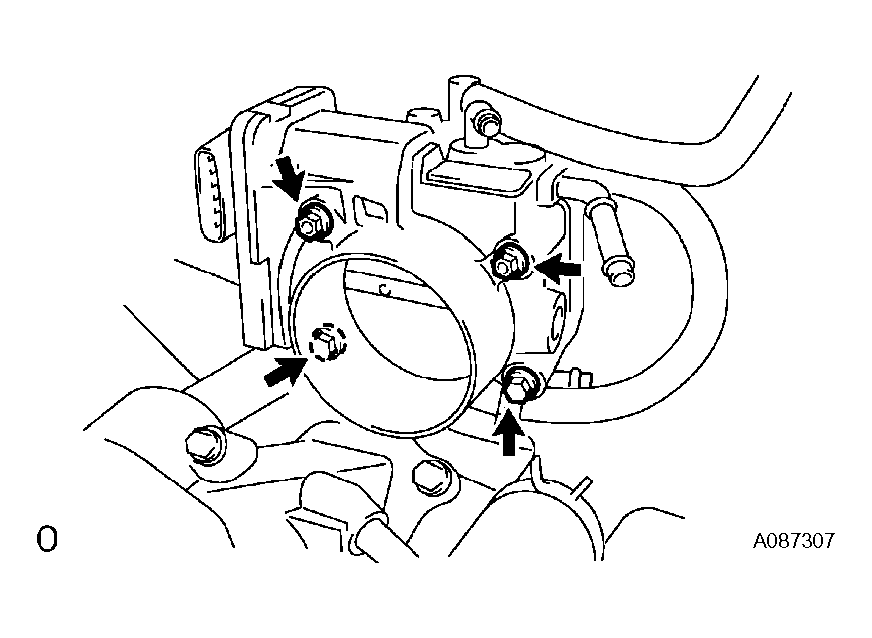

  Fig 1: Identifying A New Gasket And Throttle Body With Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)
2. Connect the 2 water bypass hoses.
3. Connect the connector and wire.
4. Connect the PCV hose.

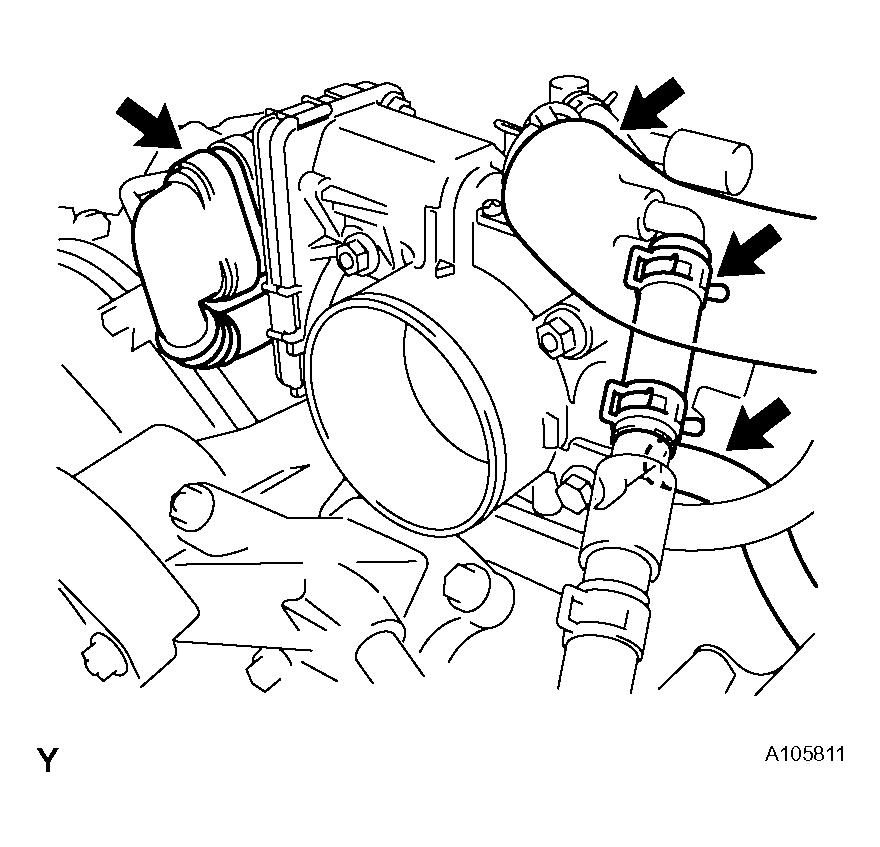

  Fig 2: Identifying Connector And Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE AIR CONNECTOR PIPE
1. Install the connector pipe with the bolt and 2 hose clamps.

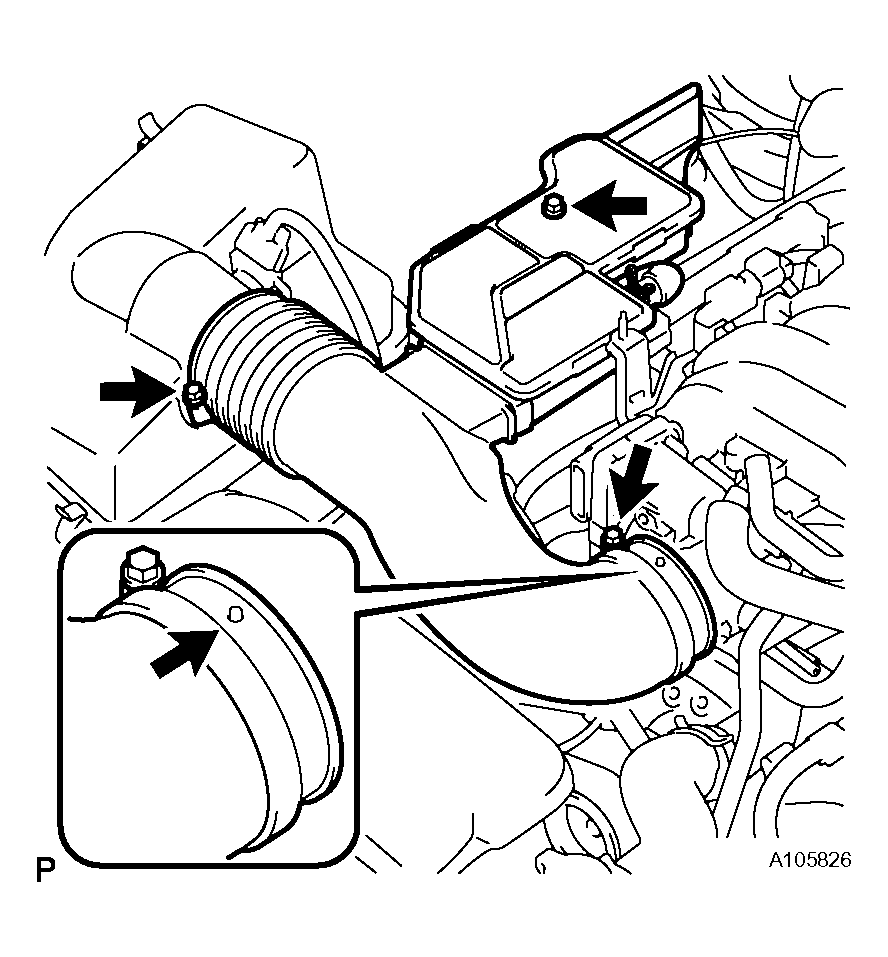

  Fig 3: Identifying Connector Pipe With Hose Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 4.0 N*m (41 kgf*cm, 35 ft.*lbf) for hose clamps

  5.0 N*m (51 kgf*cm, 44 ft.*lbf) for bolt
2. Connect the air hose and No. 1 ventilation hose.
INSTALL NO. 1 AIR CLEANER INLET ( 4 )
INSTALL V-BANK COVER
1. Install the V-bank cover with the 2 nuts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
INSTALL ENGINE ROOM SIDE COVER LH ( 6 )
INSTALL ENGINE ROOM SIDE COVER RH ( 7 )
INSTALL COOL AIR INTAKE DUCT SEAL ( 8 )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
ADD ENGINE COOLANT ( ON-VEHICLE INSPECTION )
CHECK FOR ENGINE COOLANT LEAKS
1. Check for engine coolant leaks (ON-VEHICLE INSPECTION ).
