Vehicle Control System: Inspection

INSPECT IGNITION OR STARTER SWITCH ASSY

Inspect the switch continuity.

Standard:

IGNITION OR STARTER SWITCH ASSY CONTINUITY

Terminal No	Switch Position	Specified Condition
-	LOCK	No continuity
2 <=> 3	ACC	Continuity
2 <=> 3 <=> 4 6 <=> 7	ON	Continuity
1 <=> 2 <=> 4 6 <=> 7 <=> 8	START	Continuity

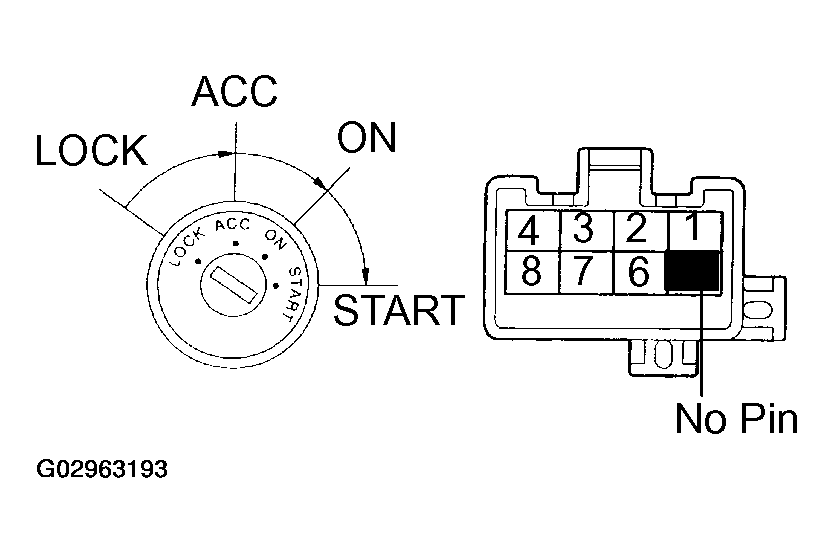

Fig 1: Inspecting Ignition Or Starter Switch Assy

G02963193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the switch assy.
