Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00420626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Instrument Panel

G00420627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Body

G00420628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Seats

G00420629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Room R/B No. 1

G00420630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Room R/B No. 2

G00420631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Room R/B No. 3

G00420632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

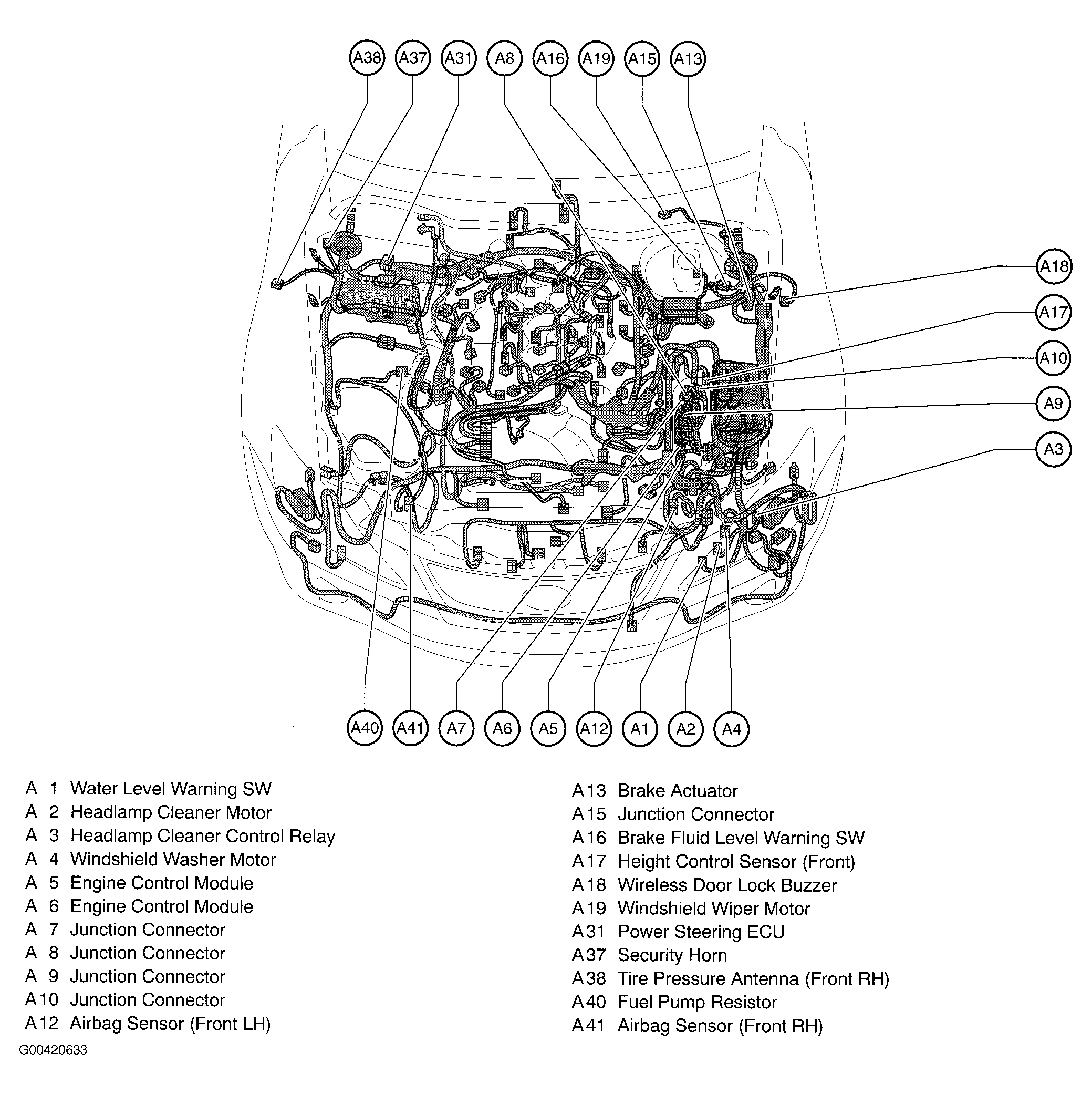

Fig 8: Engine Compartment (3.5L)

G00420633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Compartment (3.5L)

G00420634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Compartment (3.5L)

G00420635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Compartment (3.5L)

G00420636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

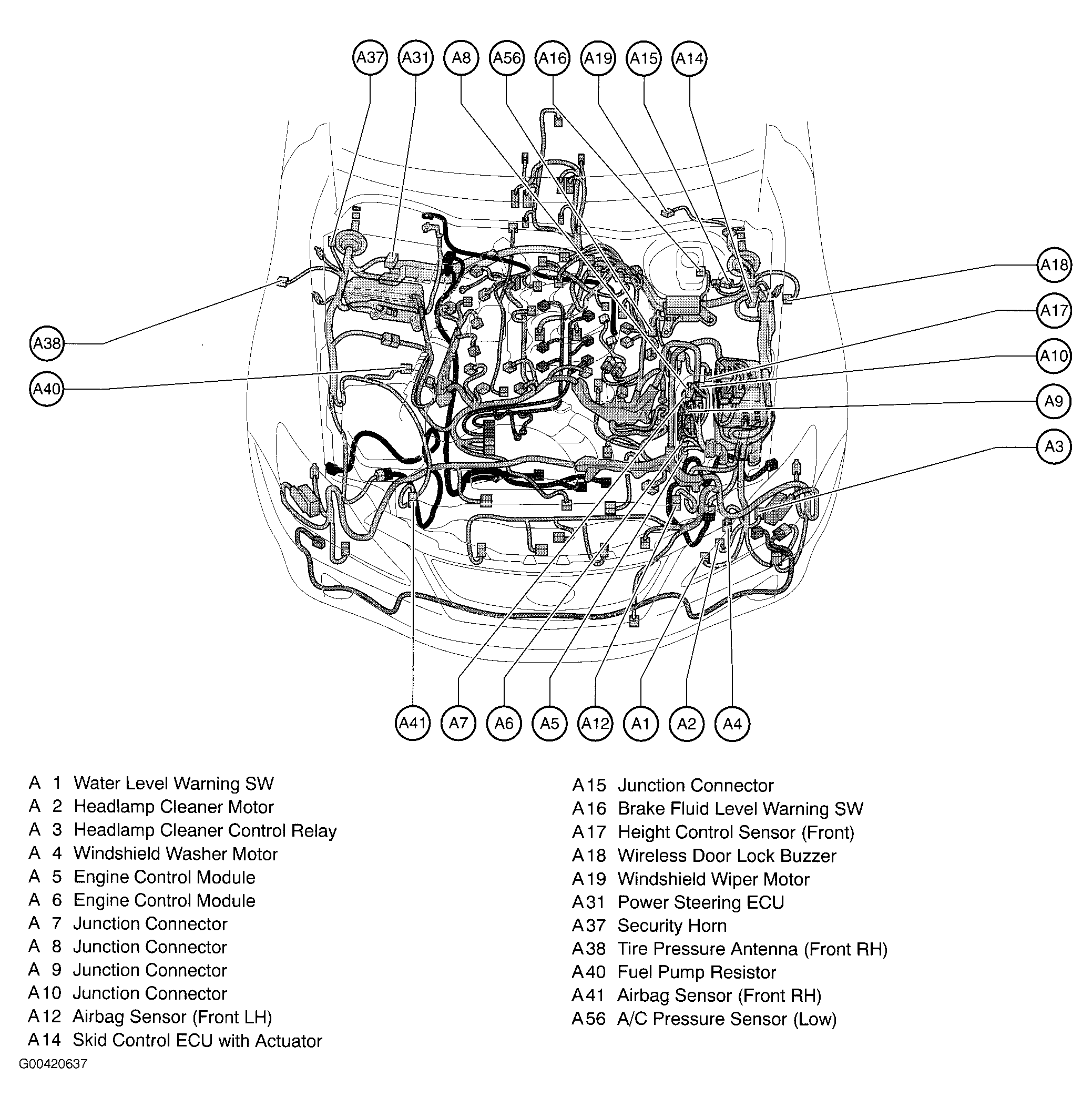

Fig 12: Engine Compartment (2.5L)

G00420637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Compartment (2.5L)

G00420639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Compartment (2.5L)

G00420640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Instrument Panel

G00420641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Instrument Panel

G00420642

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Instrument Panel

G00420643

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

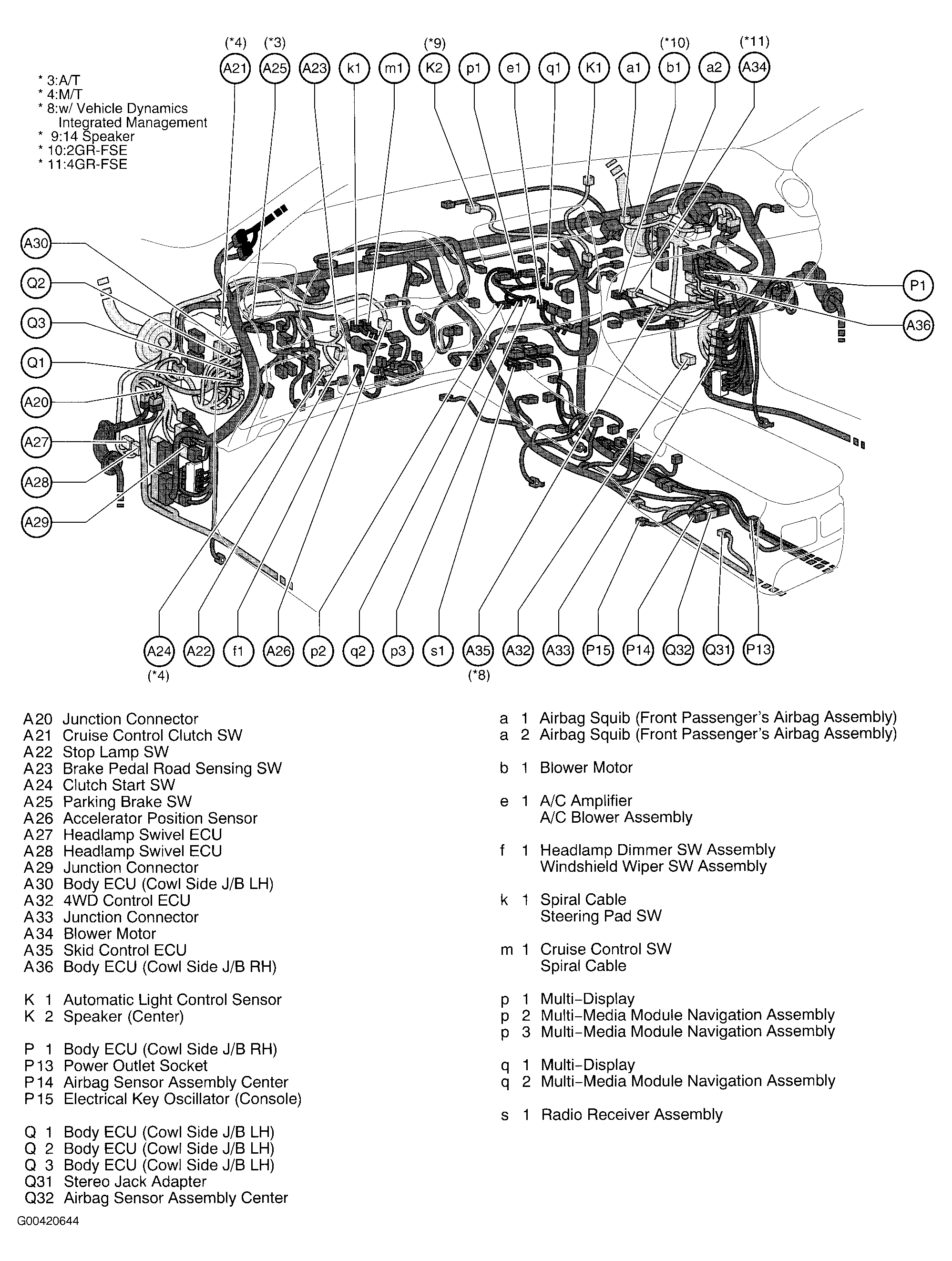

Fig 18: Instrument Panel

G00420644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Vehicle Overview

G00420645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

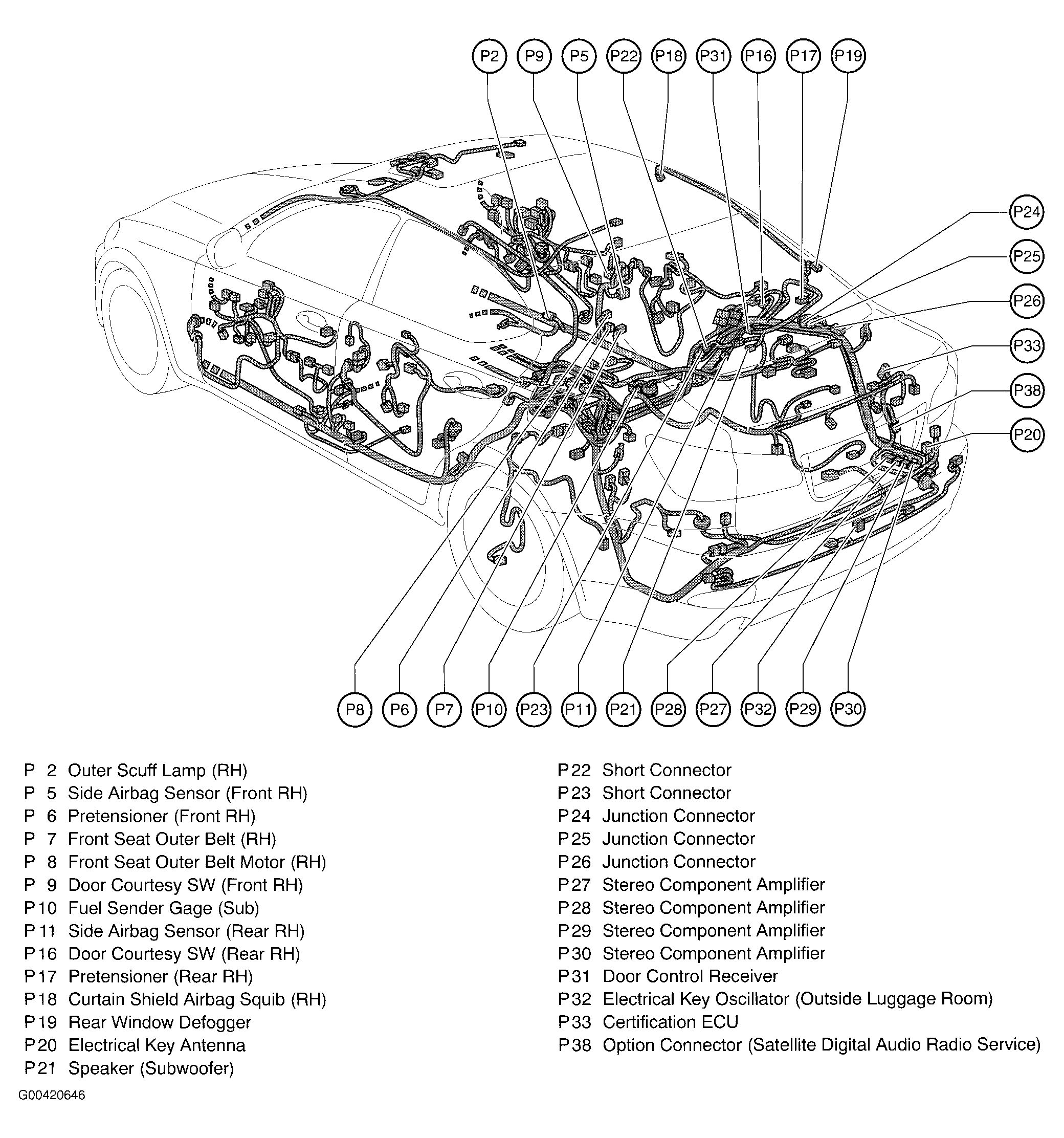

Fig 20: Vehicle Overview

G00420646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

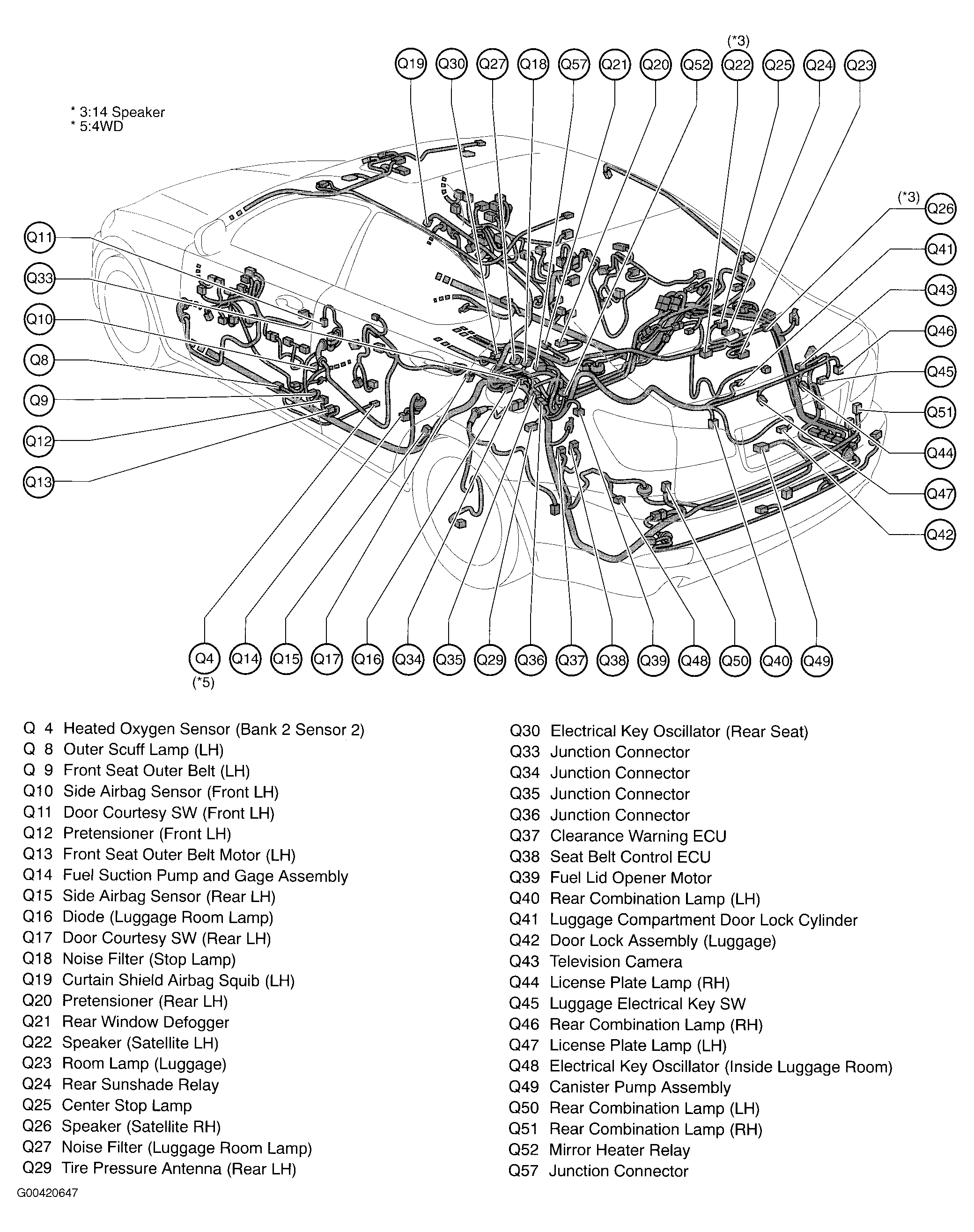

Fig 21: Vehicle Overview

G00420647

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Vehicle Overview

G00420648

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

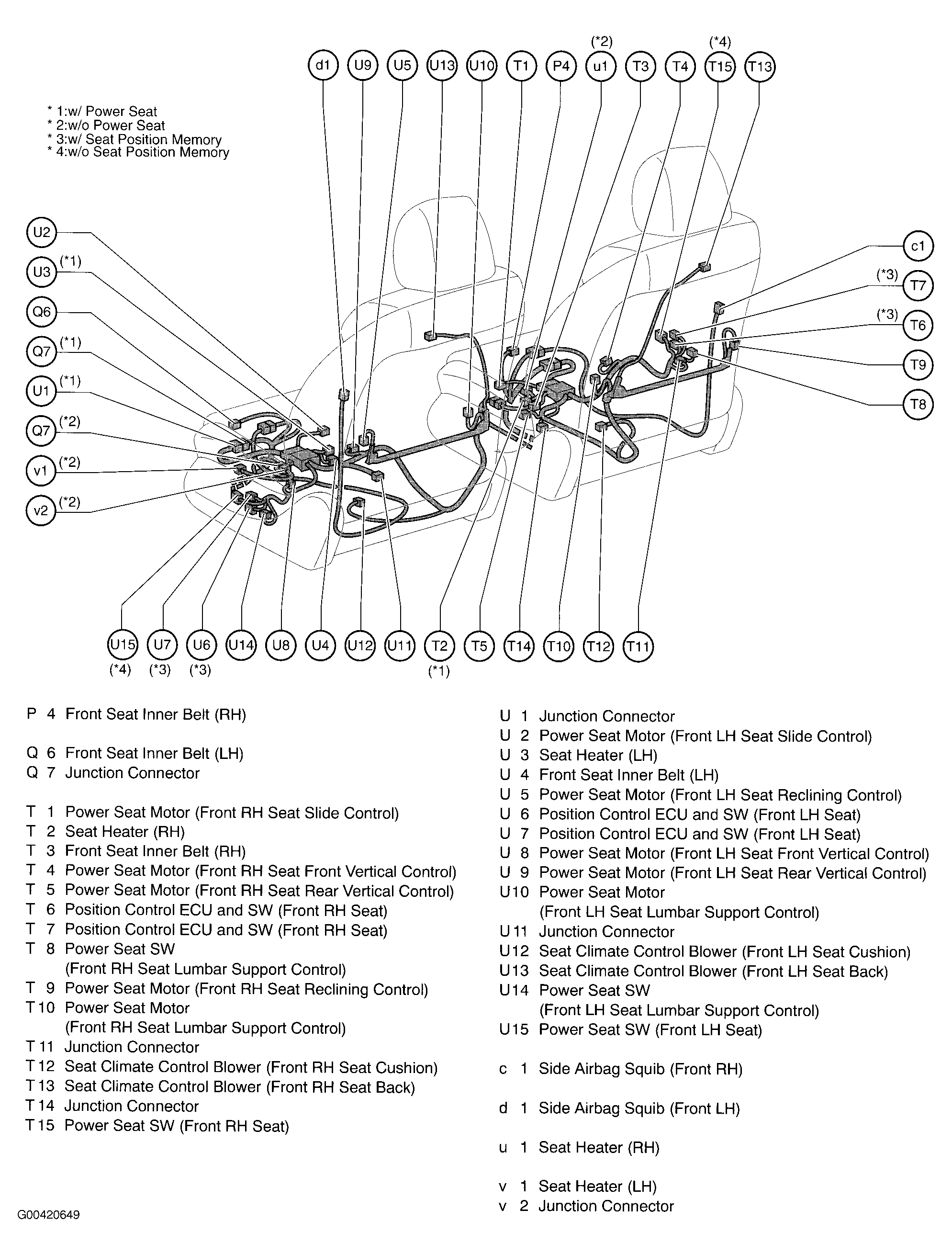

Fig 23: Front Seats

G00420649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Engine Compartment Connectors (3.5L)

G00420650

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Engine Compartment Grounds (3.5L)

G00420651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Engine Compartment Connectors (2.5L)

G00420652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Engine Compartment Grounds (2.5L)

G00420653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

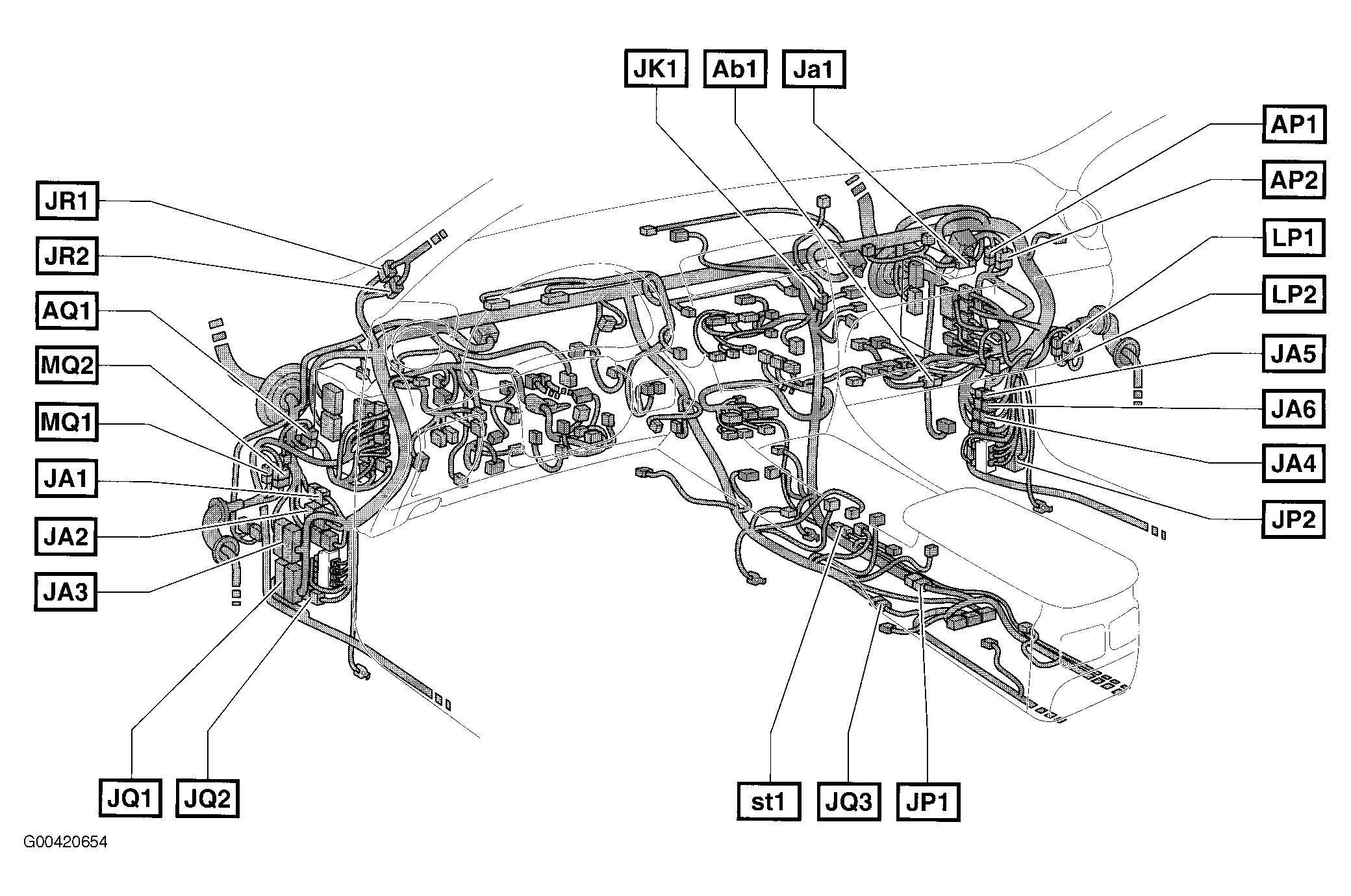

Fig 28: Instrument Panel Connectors

G00420654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Instrument Panel Grounds

G00420655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Vehicle Overview

G00420656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

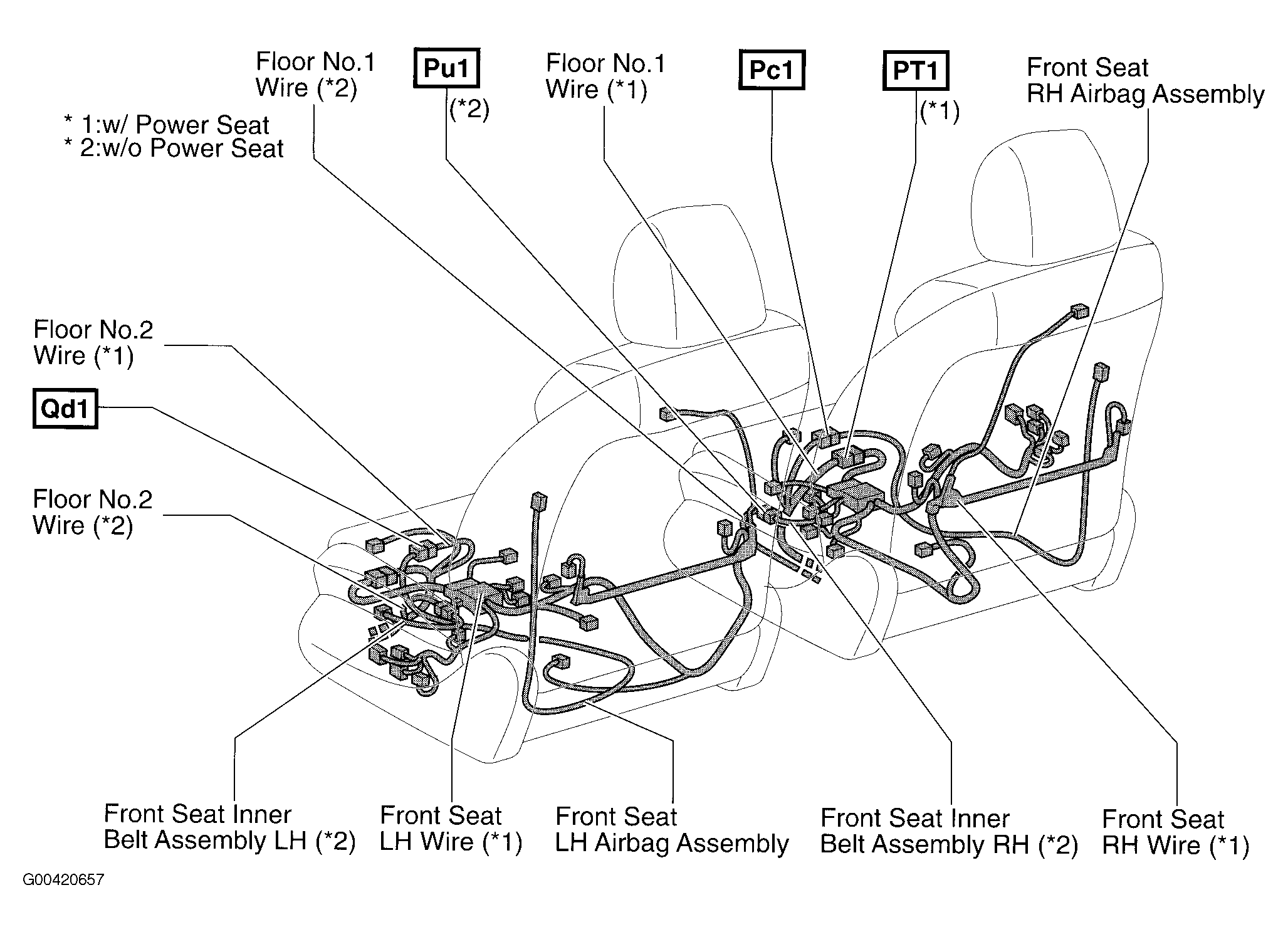

Fig 31: Front Seats

G00420657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
