Accelerator Pedal: Installation

NOTE:
  • Avoid physical shock to the accelerator pedal.
  • Do not disassemble the accelerator pedal assembly.
  1. INSTALL ACCELERATOR PEDAL
    1. Install the accelerator pedal with the 2 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    2. Connect the accelerator pedal position sensor connector.

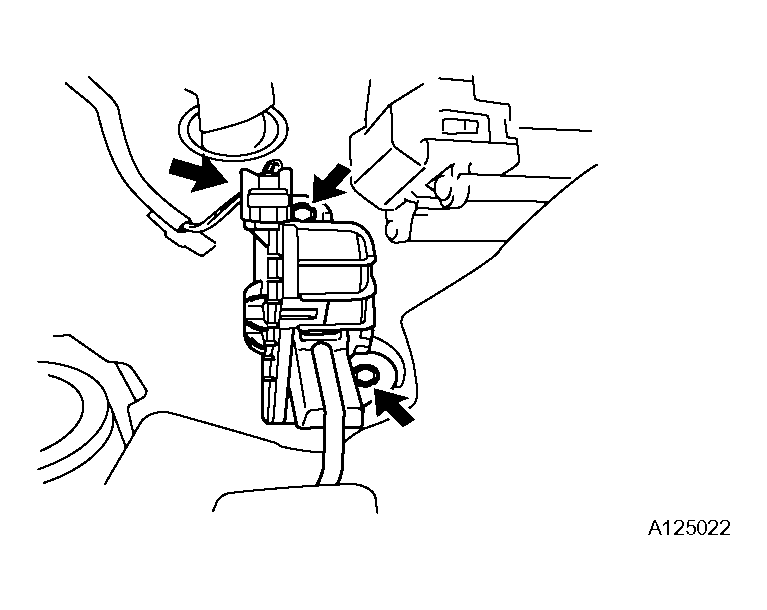

      Fig 1: Identifying Accelerator Pedal
      G04054997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
