Crankshaft Position Sensor: Components

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
G04054941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

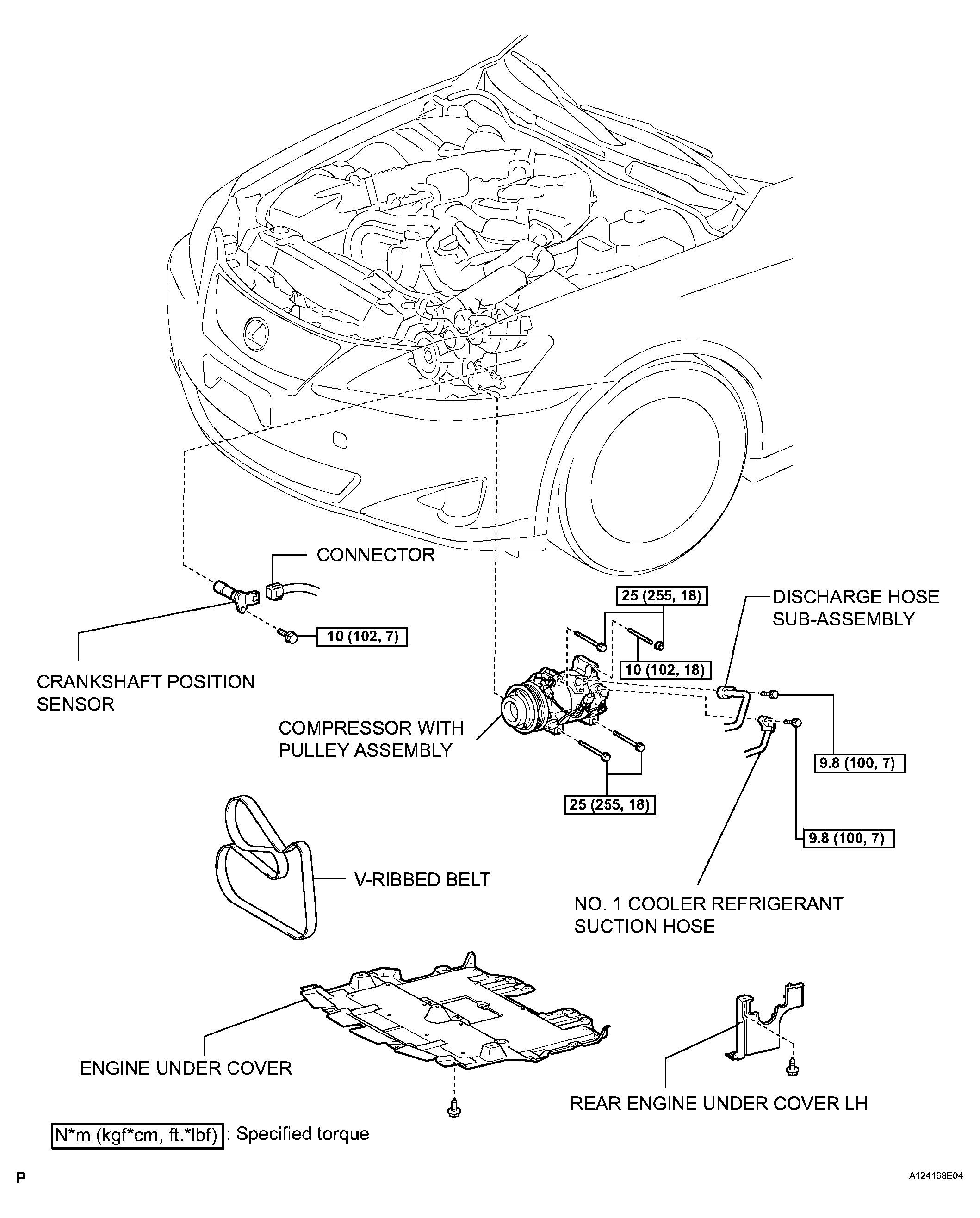

Fig 2: Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
G04054942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
