Crankshaft Position Sensor: Installation

  1. INSTALL CRANKSHAFT POSITION SENSOR
    1. Apply a coat of engine oil to an O-ring of the crankshaft position sensor.
    2. Install the crankshaft position sensor with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    3. Connect the crankshaft position sensor connector.

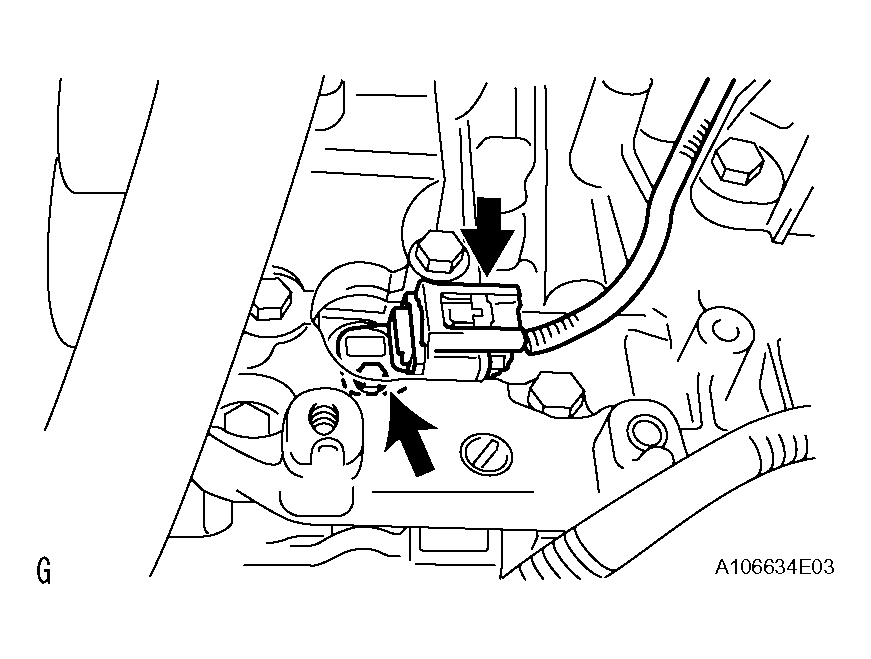

      Fig 1: Identifying Crankshaft Position Sensor
      G04054945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL COMPRESSOR WITH PULLEY ASSEMBLY (See  INSTALLATION  )
  3. INSTALL DISCHARGE HOSE SUB-ASSEMBLY (See  INSTALLATION  )
  4. INSTALL NO. 1 COOLER REFRIGERANT SUCTION HOSE (See  INSTALLATION  )
  5. INSTALL V-RIBBED BELT (See  INSTALLATION  )
  6. INSTALL REAR ENGINE UNDER COVER LH
  7. INSTALL ENGINE UNDER COVER
  8. INSTALL NO. 1 INLET AIR CLEANER (See  INSTALLATION  )
  9. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
  10. CHARGE REFRIGERANT (See  REPLACEMENT  )
  11. WARM UP ENGINE (See  REPLACEMENT  )
  12. CHECK FOR LEAKAGE OF REFRIGERANT (See  REPLACEMENT  )
  13. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
