Engine Control System (2GR-FSE): ECM: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER LH (See REMOVAL )
REMOVE ECM COVER
1. Remove the 3 bolts and ECM cover.

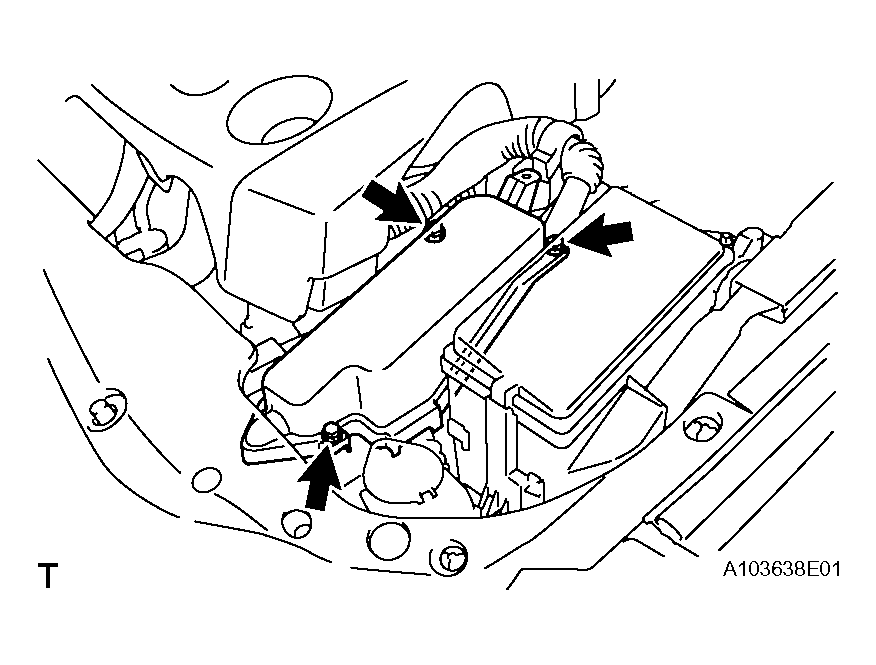

  Fig 1: Identifying ECM Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Remove all water on and around the ECM cover.
  - Perform the inspection indoors to avoid rain.
  - Be sure to prevent water intrusion to the ECM (connectors and screw parts).
REMOVE ECM
1. Disconnect the ECM connectors.
  1. Using a screwdriver, disconnect the connector holder.
  2. Disconnect the 6 ECM connectors.

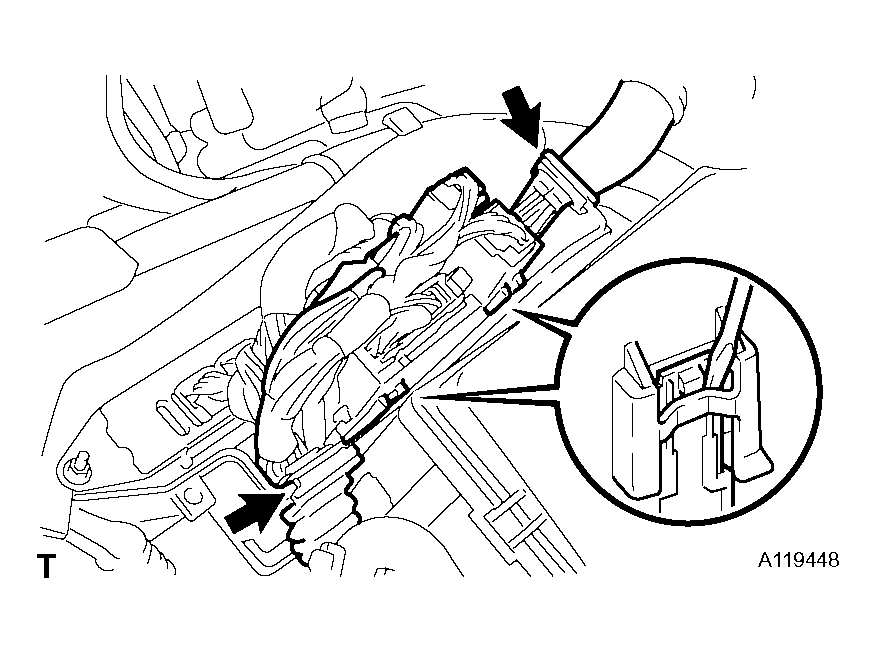

    Fig 2: Identifying ECM Connectors
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and ECM.

  Fig 3: Identifying ECM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
