Integration Relay: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  2. REMOVE ENGINE ROOM SIDE COVER LH (See  REMOVAL  )
  3. REMOVE INTEGRATION RELAY
    1. Remove the No. 2 relay block cover.
    2. Using a screwdriver, detach the 2 claws and disconnect the integration relay from the engine room No. 2 relay block.

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the 3 connectors.

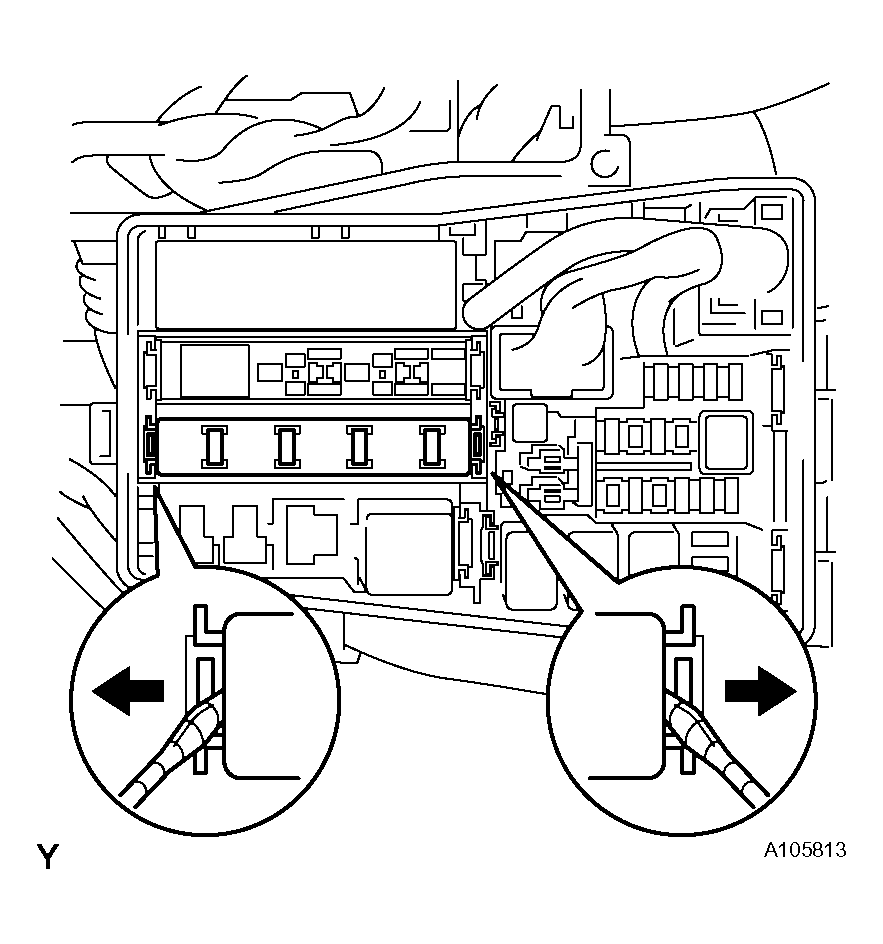

      Fig 1: Identifying Integration Relay
      G04054978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
