Knock Sensor: Installation

  1. INSTALL KNOCK SENSOR

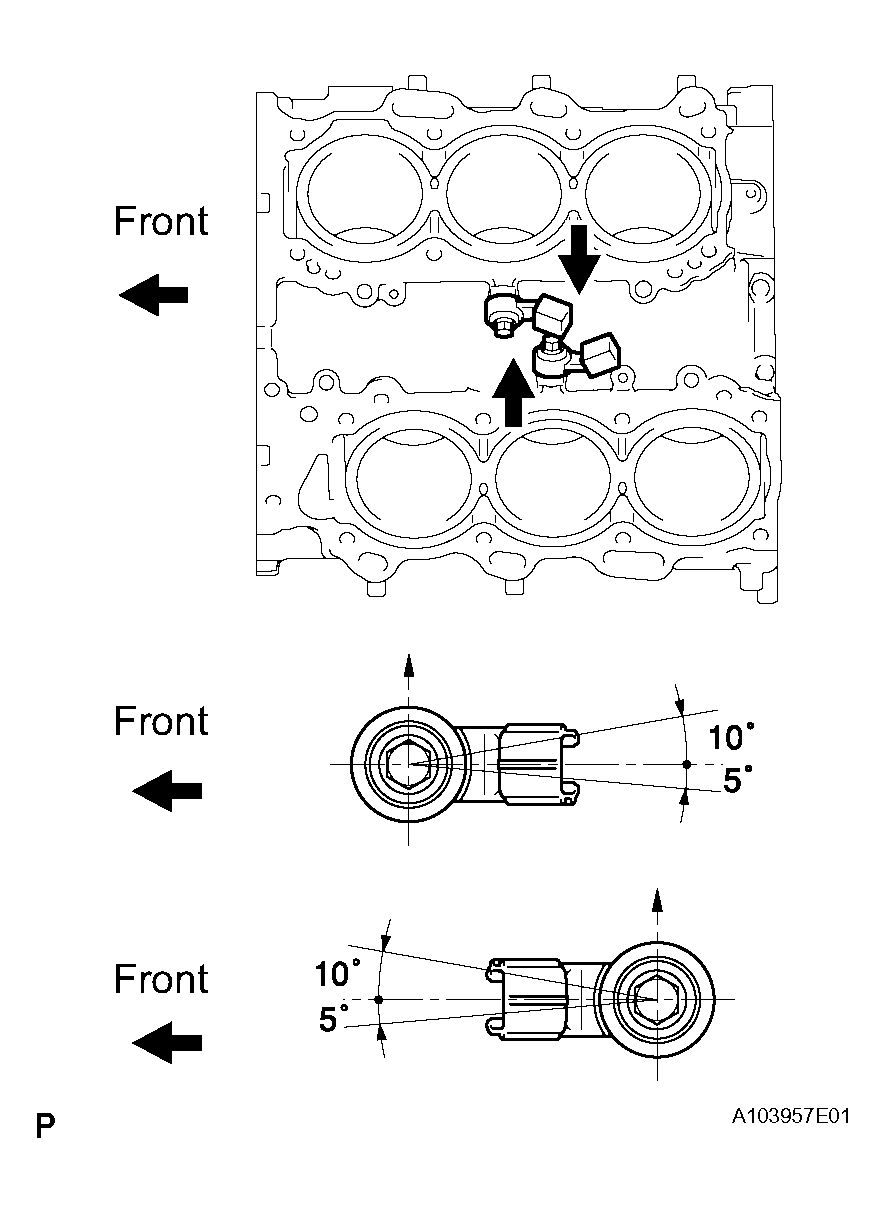

    1. Install the 2 knock sensors so that they are horizontal as shown in the illustration. Then install the 2 bolts.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      HINT:

      It is acceptable for the sensor to be tilted +10° to - 5°.

    2. Connect the 2 knock sensor connectors.
      Fig 1: Identifying Knock Sensor
      G04054976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL INJECTOR SEAL (See  INSTALLATION  )
  3. INSTALL INJECTOR (See  INSTALLATION  )
  4. INSTALL NO. 1 FUEL DELIVERY PIPE (See  INSTALLATION  )
  5. INSTALL NO. 2 FUEL DELIVERY PIPE (See  INSTALLATION  )
  6. INSTALL NO. 3 FUEL PIPE (See  INSTALLATION  )
  7. INSTALL NO. 2 FUEL PIPE (See  INSTALLATION  )
  8. INSTALL FUEL PUMP ASSEMBLY (See  REMOVAL  )
  9. CONNECT NO. 2 FUEL PIPE (See  INSTALLATION  )
  10. INSTALL NO. 1 FUEL PIPE (See  INSTALLATION  )
  11. INSTALL FUEL PRESSURE PULSATION DAMPER (See  INSTALLATION  )
  12. INSTALL WATER HOSE JOINT (See  INSTALLATION  )
  13. INSTALL INTAKE MANIFOLD (See  INSTALLATION  )
  14. INSTALL INTAKE AIR SURGE TANK ASSEMBLY (See  INSTALLATION  )
  15. INSTALL THROTTLE BODY (See  INSTALLATION   )
  16. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See  INSTALLATION   )
  17. CONNECT NO. 2 VENTILATION HOSE (See  INSTALLATION   )
  18. ADD ENGINE COOLANT (See  COOLANT  )
  19. CHECK FOR ENGINE COOLANT LEAKAGE (See  COOLANT  )
  20. CHECK FOR FUEL LEAKAGE (See  ON-VEHICLE INSPECTION  )
  21. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  INSTALLATION  )
  22. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See  INSTALLATION  )
  23. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See  INSTALLATION  )
  24. INSTALL FRONT WIPER ARM HEAD CAP (See  INSTALLATION  )
  25. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
  26. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
  27. INSTALL FRONT FENDER PROTECTOR UPPER LH (See  INSTALLATION  )
  28. INSTALL FRONT FENDER PROTECTOR UPPER RH (See  INSTALLATION  )
  29. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
  30. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  31. INSTALL ENGINE ROOM SIDE COVER RH (See  INSTALLATION  )
  32. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  33. CHECK FUNCTION THROTTLE BODY (See  INSTALLATION   )
