System Diagram

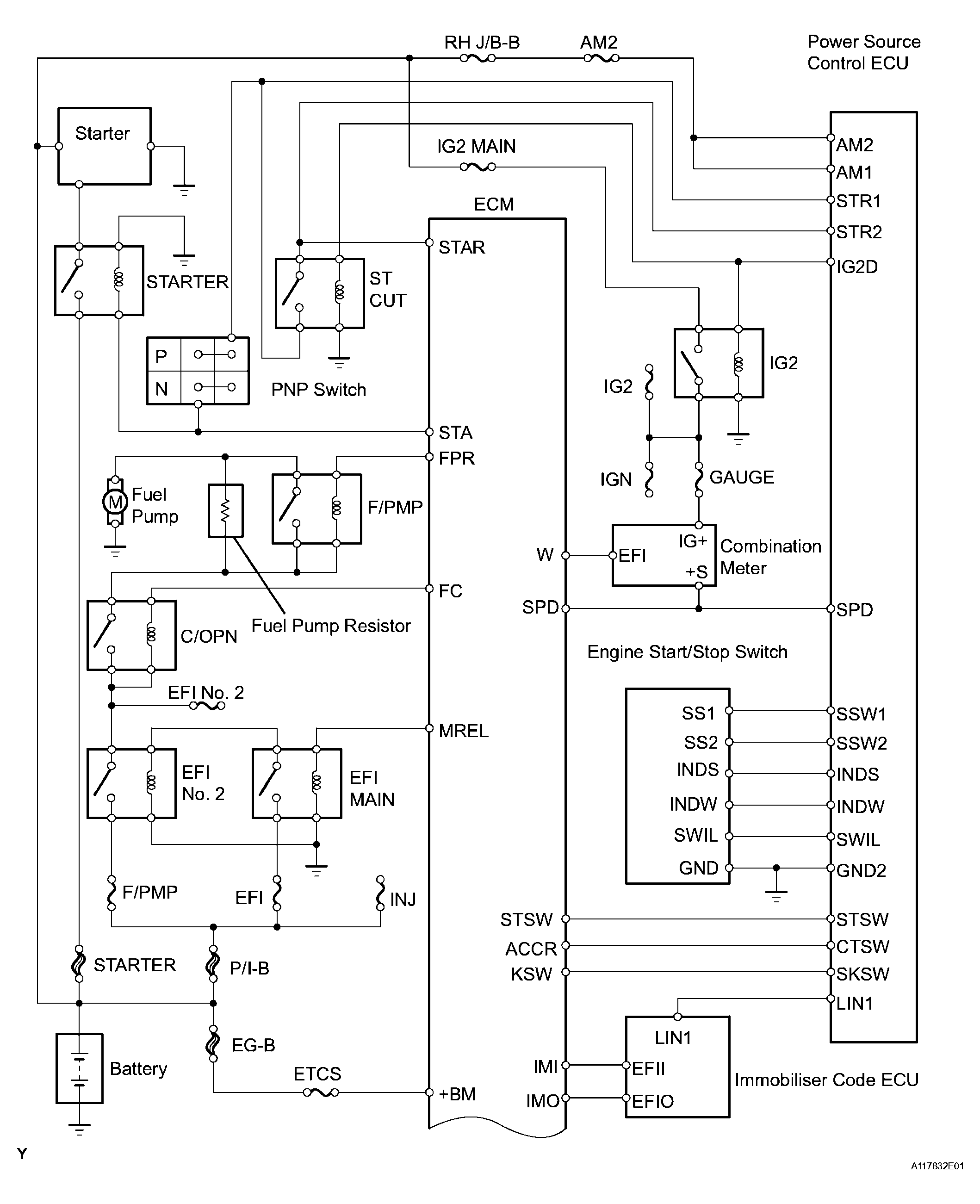

Fig 1: 2GR-FSE Engine Control System - SFI System - System Diagram (1 Of 5)
G04054493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

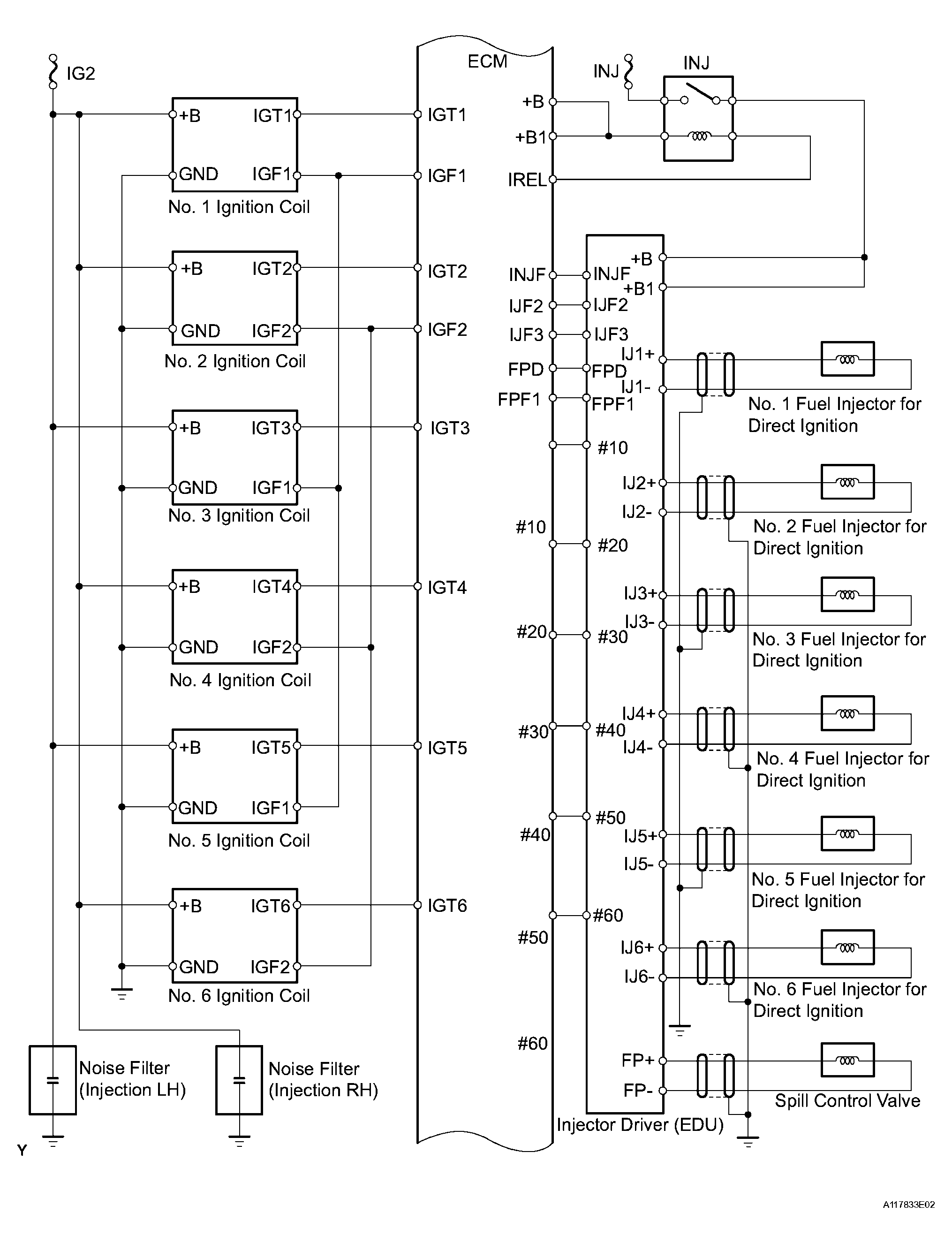

Fig 2: 2GR-FSE Engine Control System - SFI System - System Diagram (2 Of 5)
G04054494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

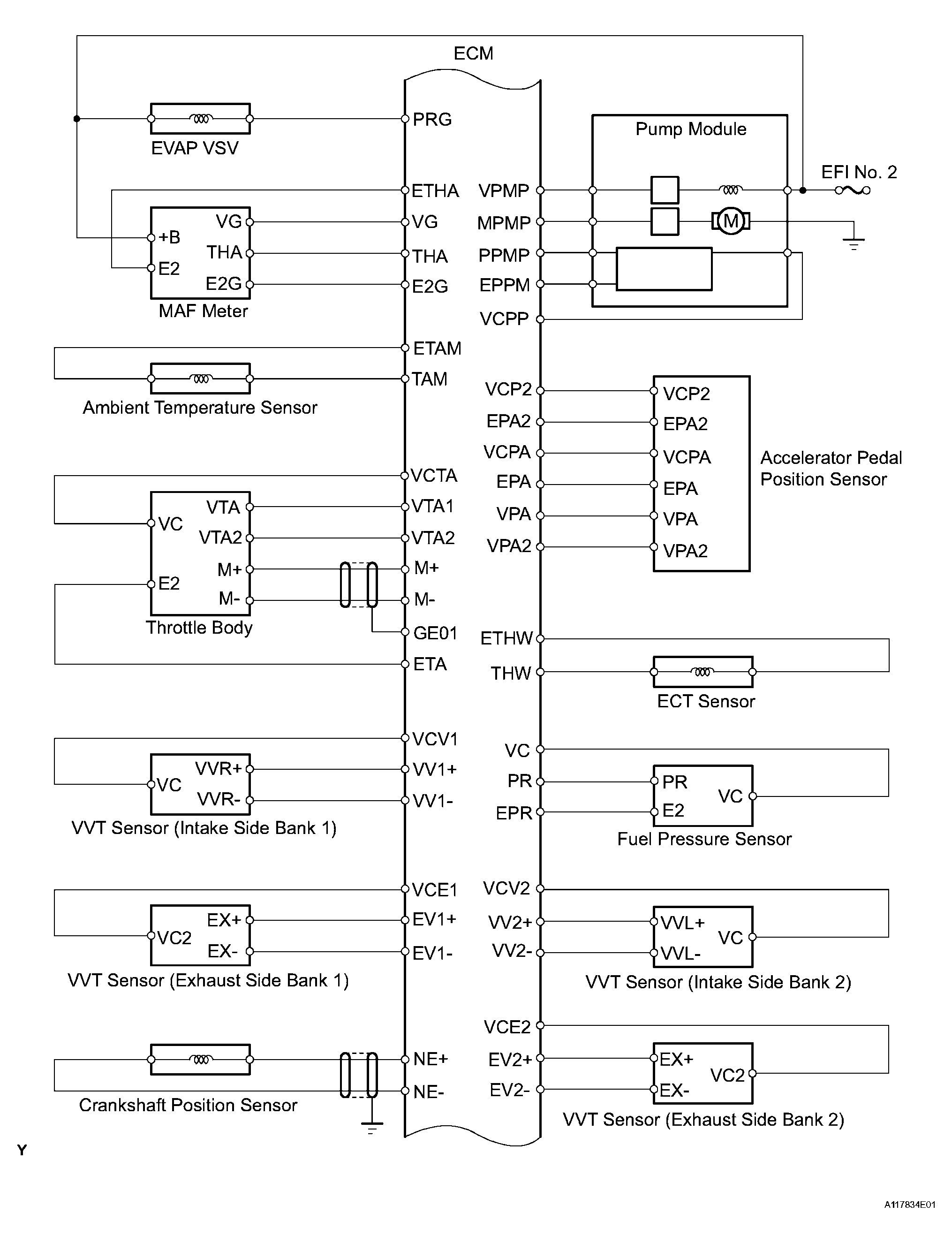

Fig 3: 2GR-FSE Engine Control System - SFI System - System Diagram (3 Of 5)
G04054495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

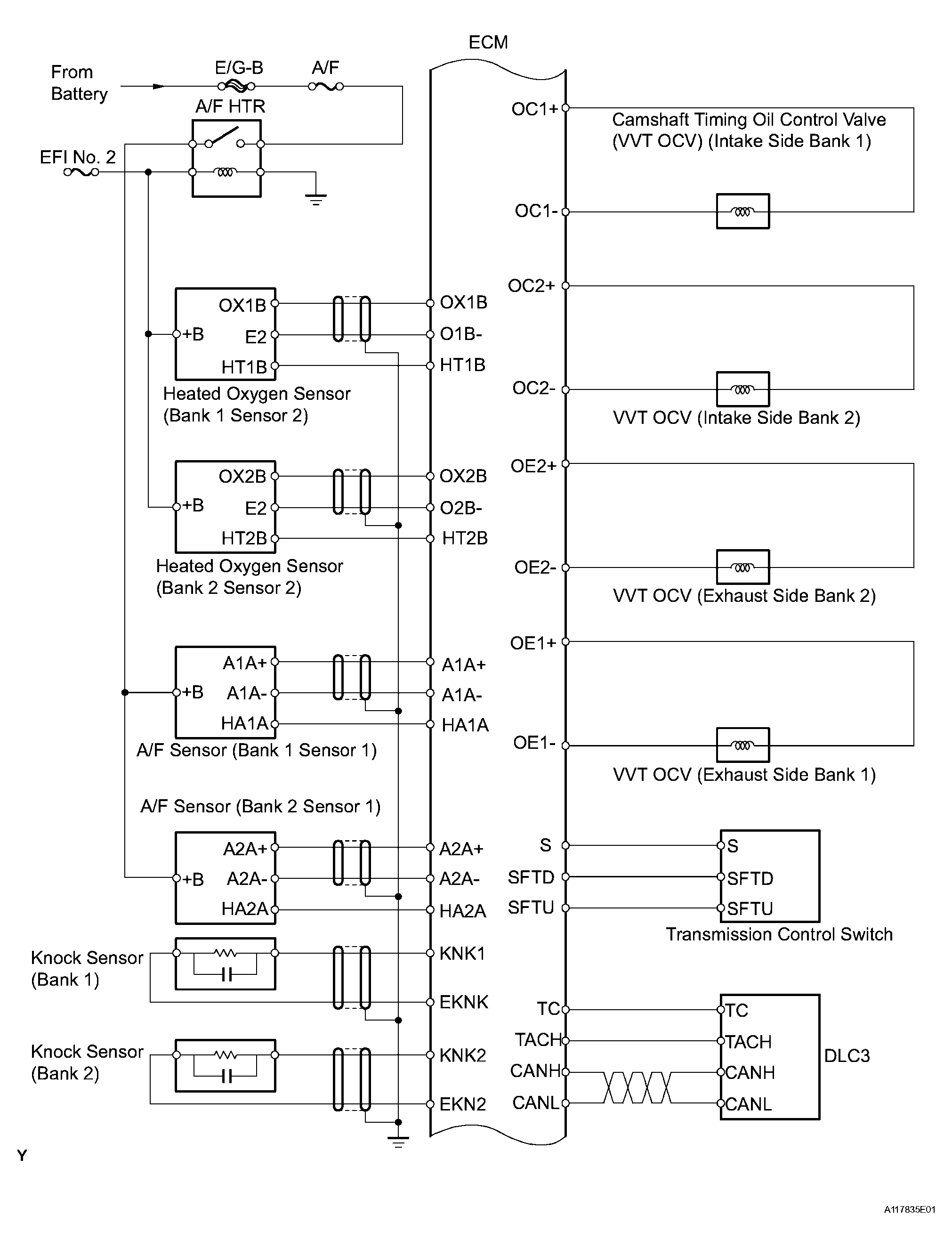

Fig 4: 2GR-FSE Engine Control System - SFI System - System Diagram (4 Of 5)
G04054496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

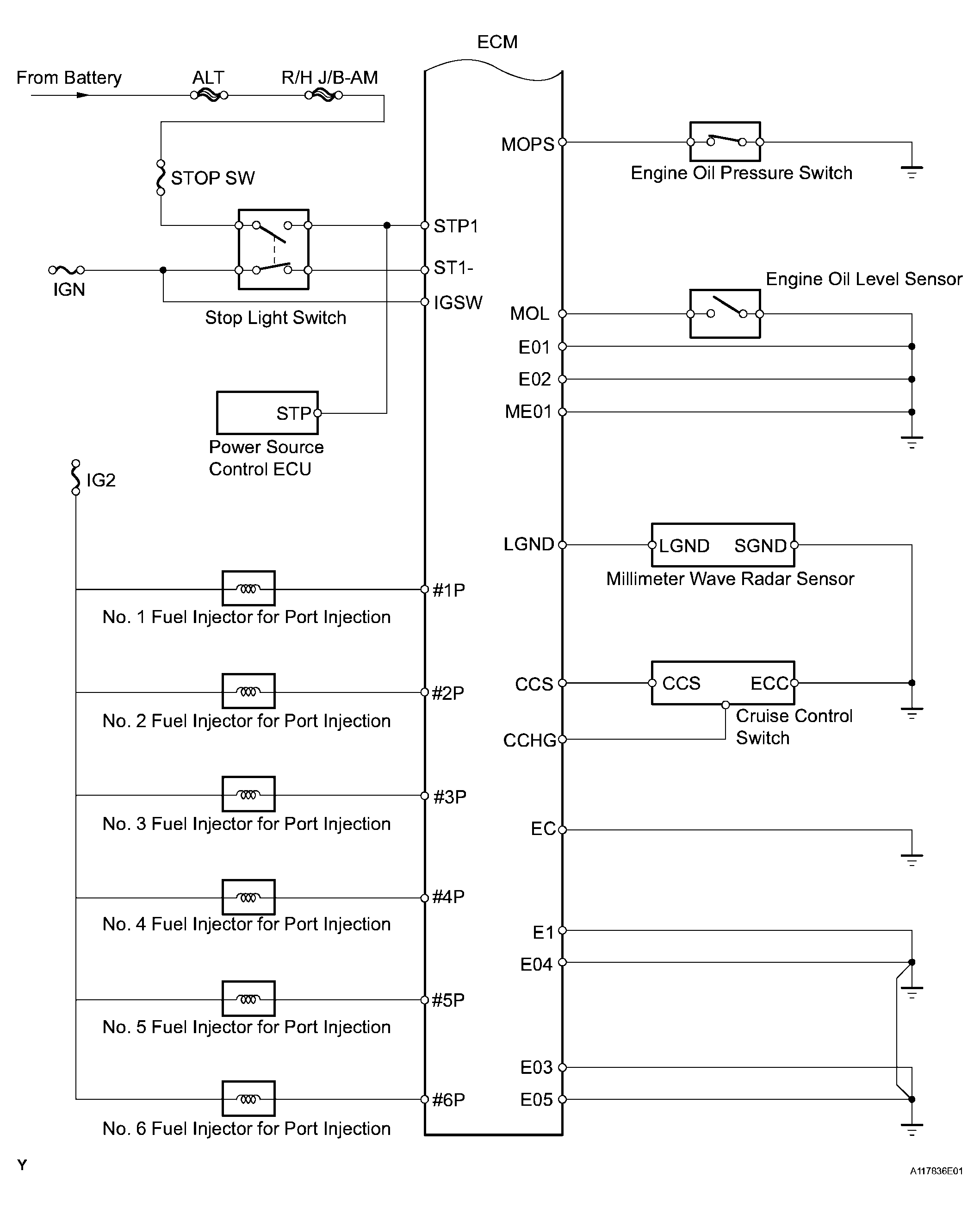

Fig 5: 2GR-FSE Engine Control System - SFI System - System Diagram (5 Of 5)
G04054497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
