Throttle Body: Inspection

  1. INSPECT THROTTLE BODY
    1. Measure the resistance between the terminals.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      1 (M-) - 2 (M+) 20°C (68°F) 0.3 to 100 Ω
      3 (E2) - 5 (VC) 20°C (68°F) 1.2 to 3.2 Ω

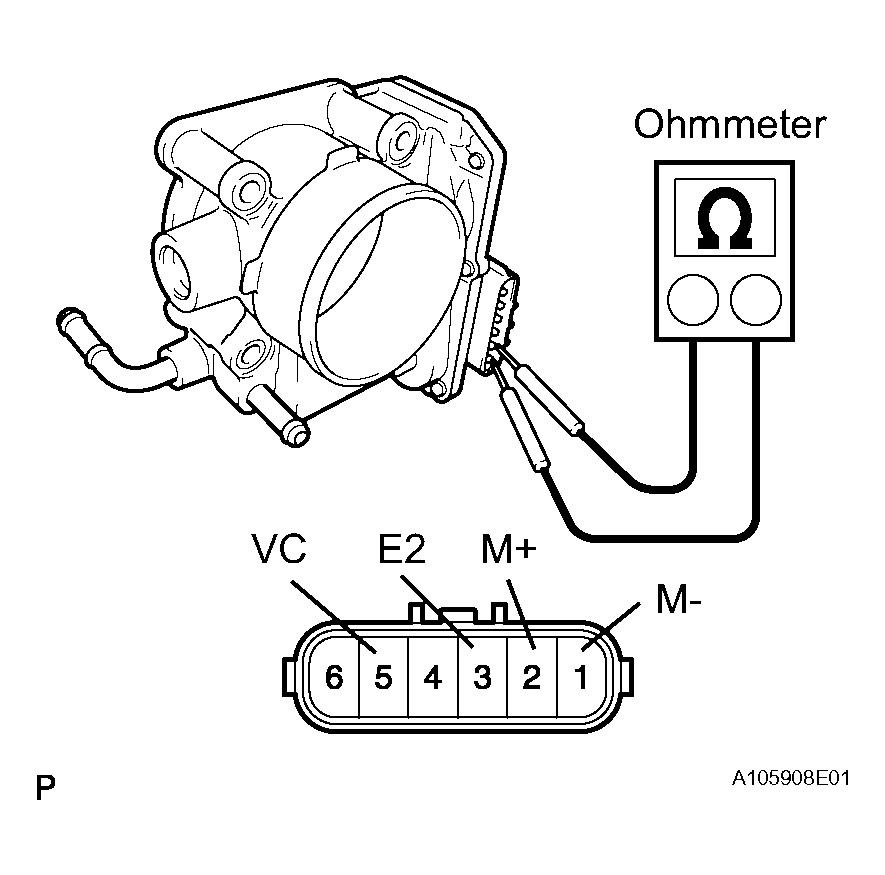

      Fig 1: Measuring Resistance Between Throttle Body Terminals
      G04054961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the throttle body.
