Throttle Body: Installation

INSTALL THROTTLE BODY
1. Install a new gasket to the intake air surge tank.
  HINT:

  Align the protrusion of the gasket on the intake air surge tank.

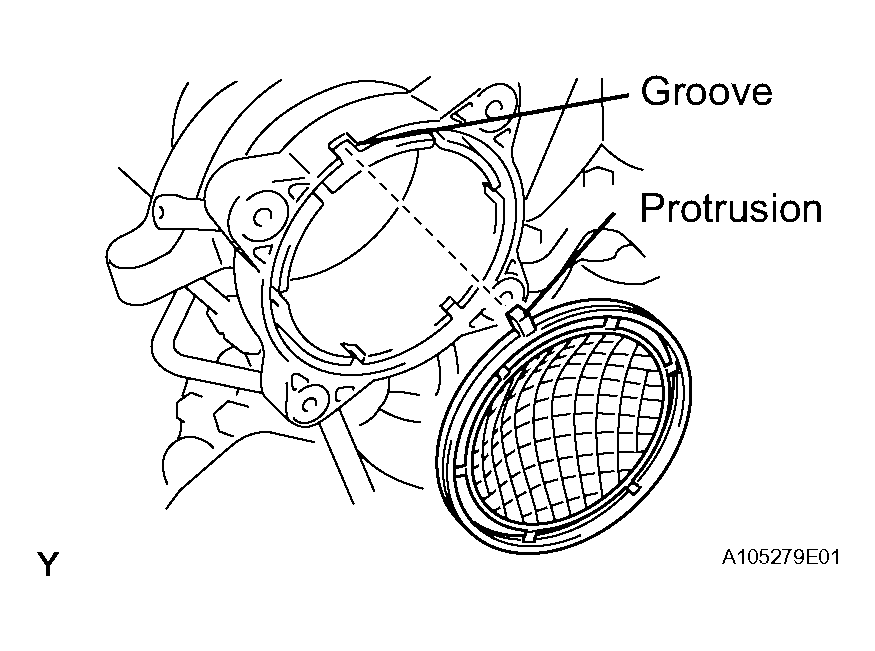

  Fig 1: Installing Gasket To Intake Air Surge Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 water by-pass hoses to the throttle body.

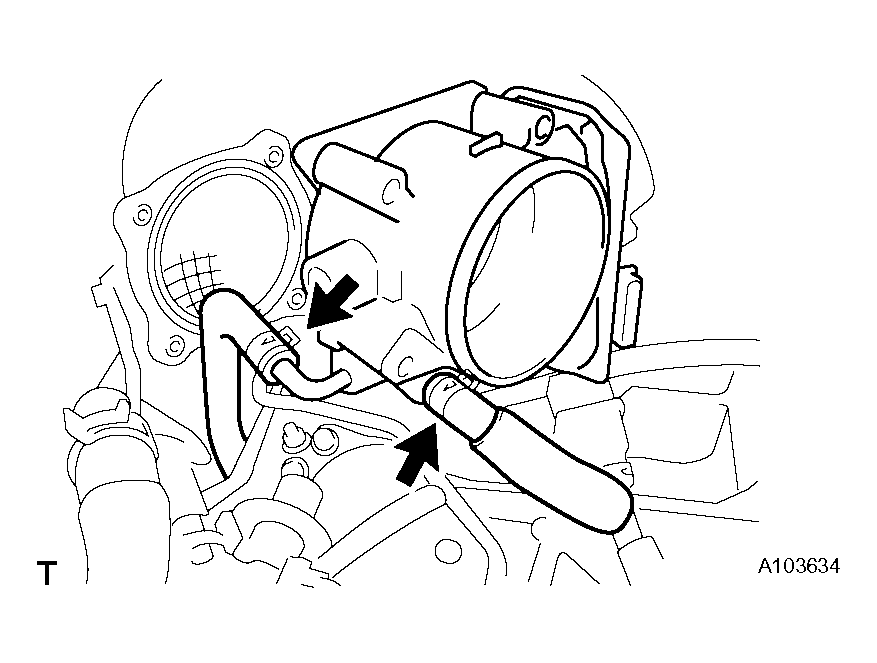

  Fig 2: Connecting Water By-Pass Hoses To Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the throttle body with the 4 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
4. Connect the throttle motor connector.

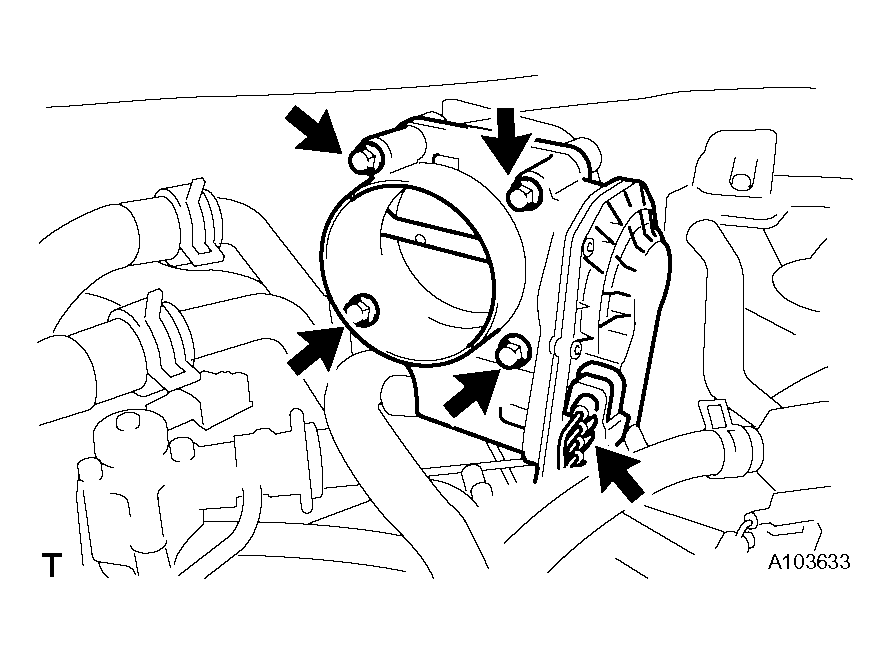

  Fig 3: Identifying Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
1. Install the air cleaner cap with air cleaner hose assembly with the 4 clamps and hose clamp.
  Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  HINT:

  Fit the protrusion on the air cleaner hose into the hole of the hose clamp on the throttle valve side.

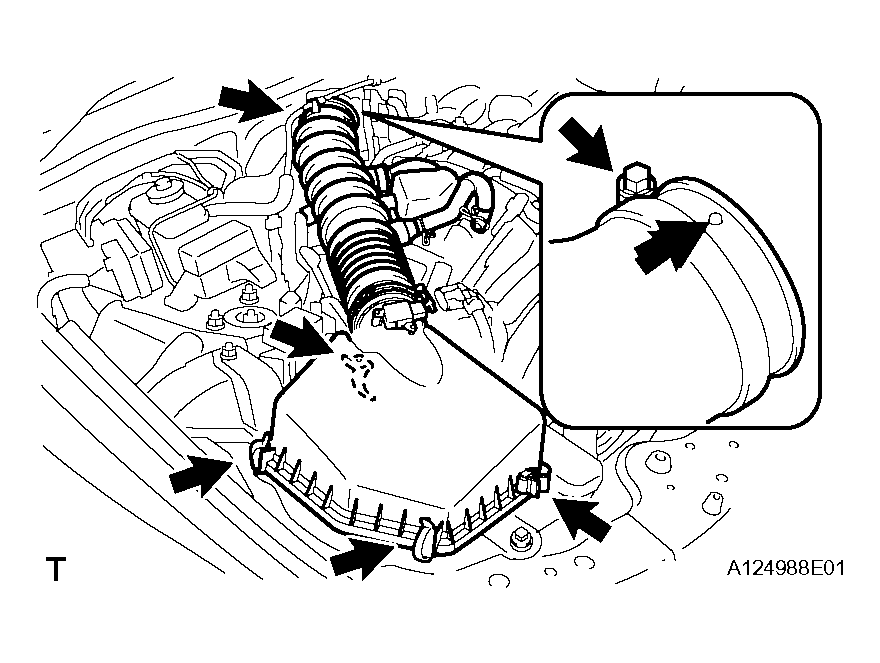

  Fig 4: Identifying Air Cleaner Cap With Air Cleaner Hose Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the VSV hose to the air cleaner hose.

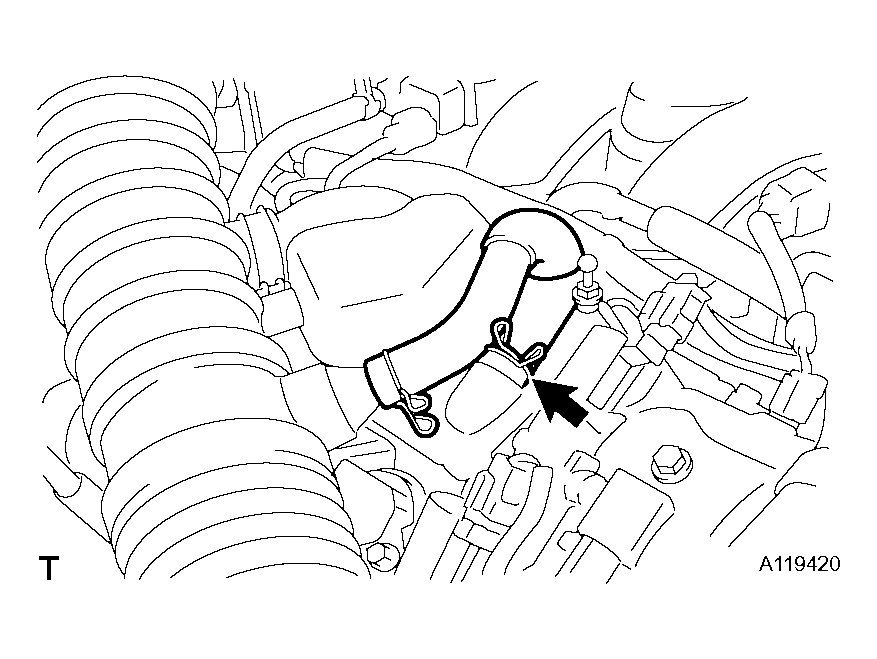

  Fig 5: Installing VSV Hose To Air Cleaner Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the MAF meter connector and clamp to the air cleaner.

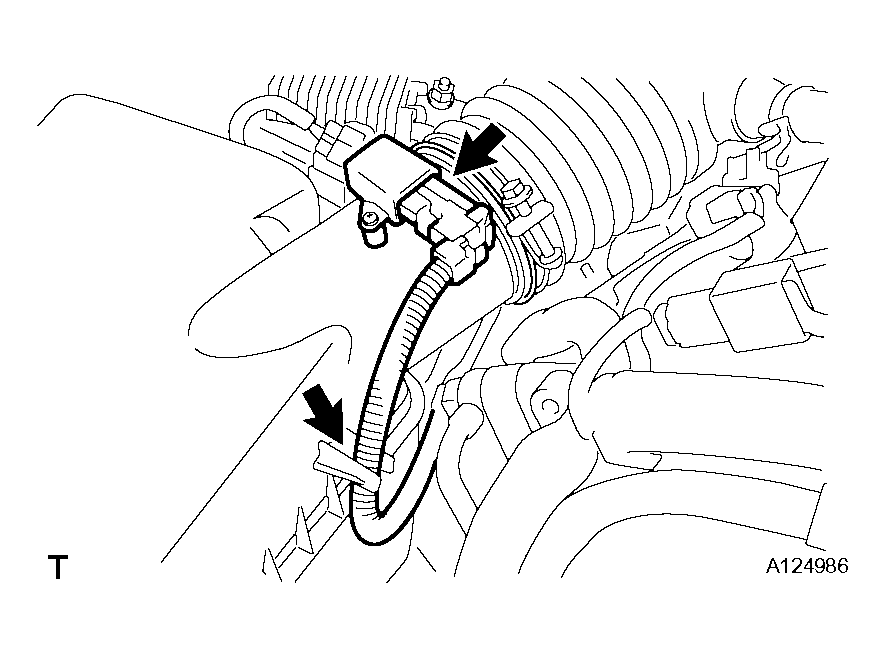

  Fig 6: Identifying MAF Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 2 VENTILATION HOSE
1. Connect the ventilation hose to the cylinder head cover with the clamp.

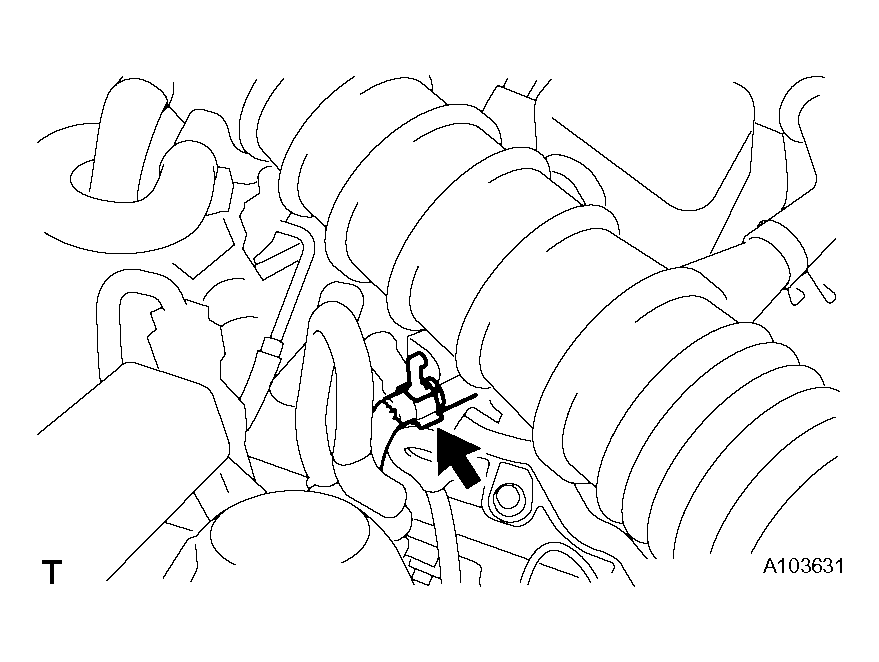

  Fig 7: Connecting Ventilation Hose To Cylinder Head Cover With Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKS (See COOLANT )
CHECK FUNCTION OF THROTTLE BODY (See ON-VEHICLE INSPECTION )
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
