VVT Sensor: Installation

INSTALL VVT SENSOR (for Exhaust Side of Bank 2)
1. Install the VVT sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the VVT sensor connector.

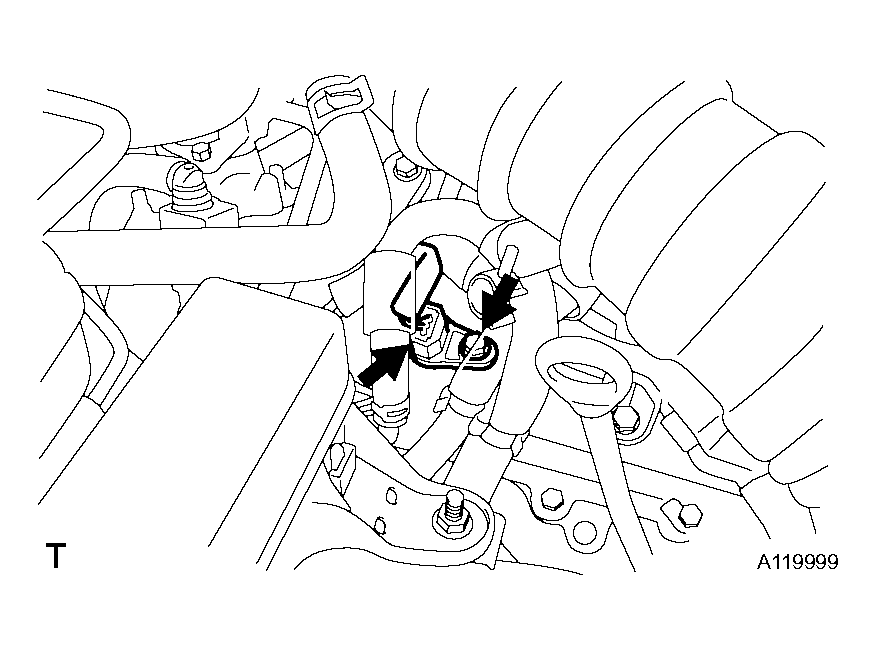

  Fig 1: Identifying VVT Sensor (For Exhaust Side Of Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VVT SENSOR (for Intake Side of Bank 2)
1. Install the VVT sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the VVT sensor connector.

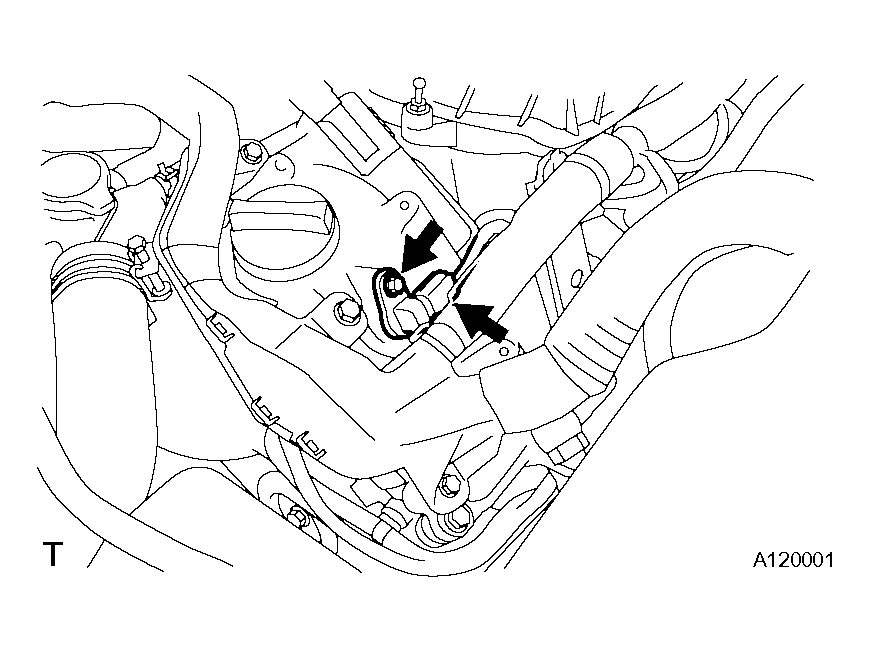

  Fig 2: Identifying VVT Sensor (For Intake Side Of Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VVT SENSOR (for Exhaust Side of Bank 1)
1. Install the VVT sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the VVT sensor connector.

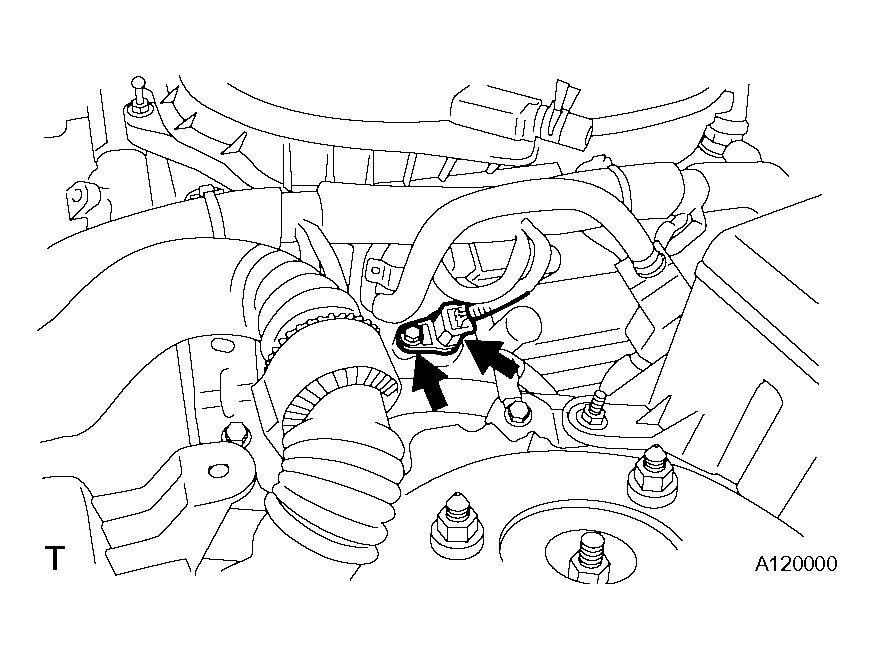

  Fig 3: Identifying VVT Sensor (For Exhaust Side Of Bank 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VVT SENSOR (for Intake Side of Bank 1)
1. Install the VVT sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the VVT sensor connector.
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )

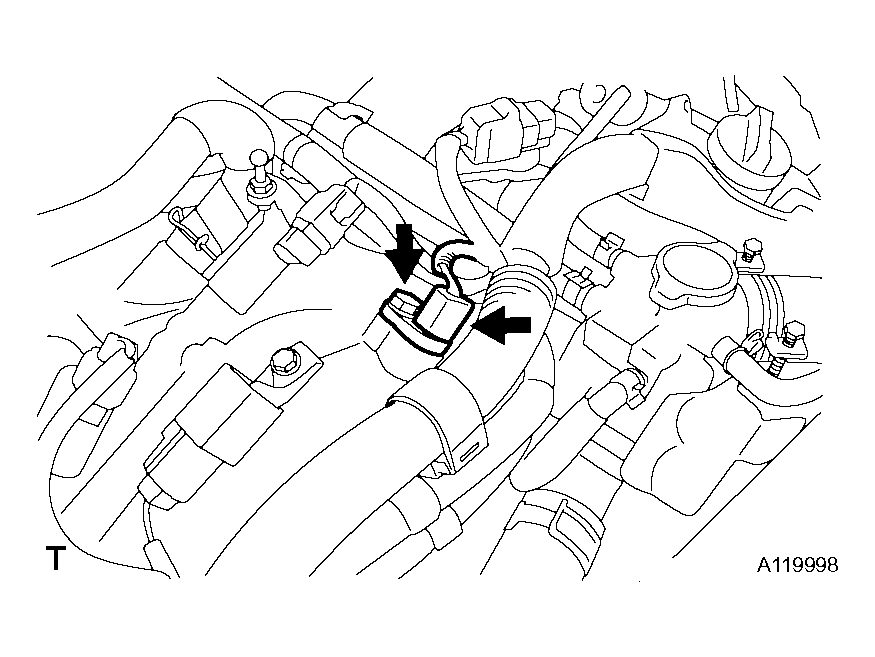

Fig 4: Identifying VVT Sensor (For Intake Side Of Bank 1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
