On-Vehicle Inspection
- INSPECT CHECK VVT SENSOR OUTPUT VOLTAGE
- Turn the engine switch on (IG).

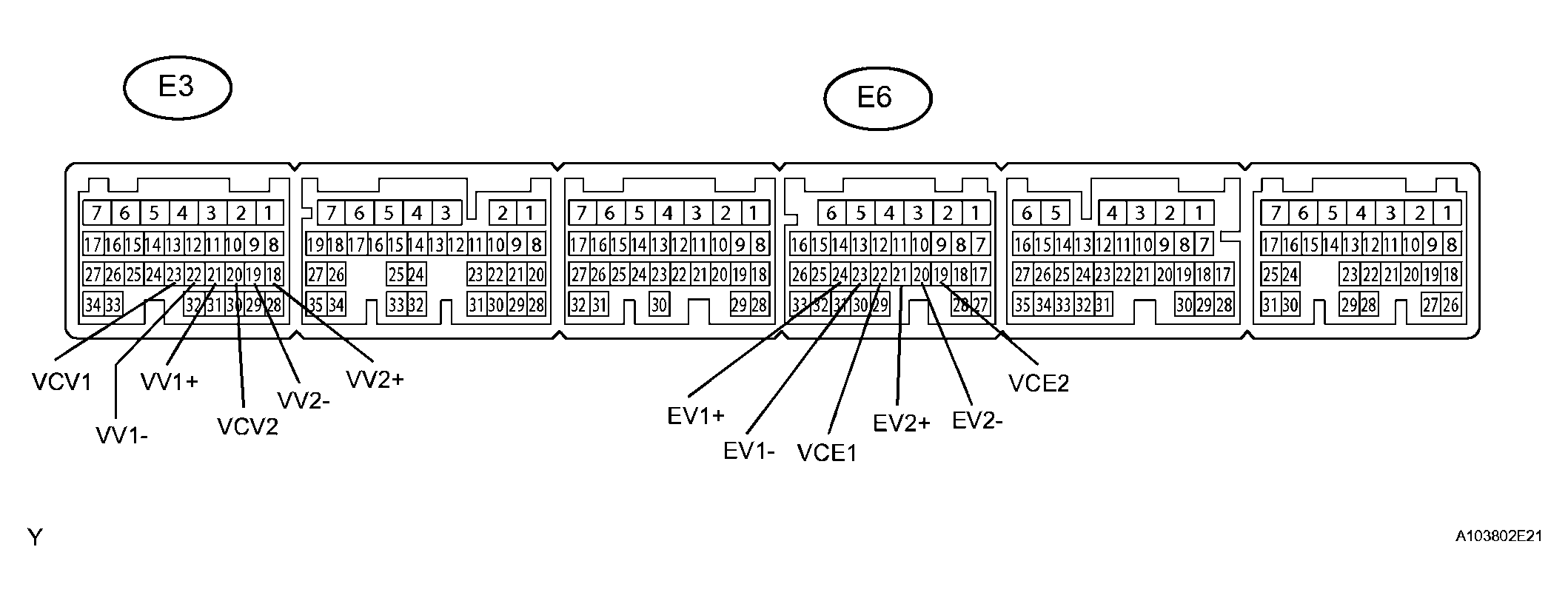

- Check the voltage between the terminal.
Standard voltage
VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition E3-23 (VCV1) - Body ground Engine switch on (IG) 5 V E3-20 (VCV2) - Body ground Engine switch on (IG) 5 V E6-22 (VCE1) - Body ground Engine switch on (IG) 5 V E6-19 (VCE2) - Body ground Engine switch on (IG) 5 V - While turning the crankshaft pulley by hand, measure the voltage between each terminal. Check that the voltage changes between the Hi range and Lo range shown in the table below.
Standard voltage
VOLTAGE SPECIFICATIONSensor Position Terminal No. Voltage (Hi) Voltage (Lo) Bank 1 (Intake side) VV1+ (E3-21) - VV1- (E3-22) 3.75 to 4.50 V 0.50 to 1.25 V Bank 2 (Intake side) VV2+ (E3-18) - VV2- (E3-19) 3.75 to 4.50 V 0.50 to 1.25 V Bank 1 (Exhaust side) EV1+ (E6-24) - EV1- (E6-23) 3.75 to 4.50 V 0.50 to 1.25 V Bank 2 (Exhaust side) EV2+ (E6-21) - EV2- (E6-20) 3.75 to 4.50 V 0.50 to 1.25 V
