Shift Paddle Switch Circuit: Wiring Diagram

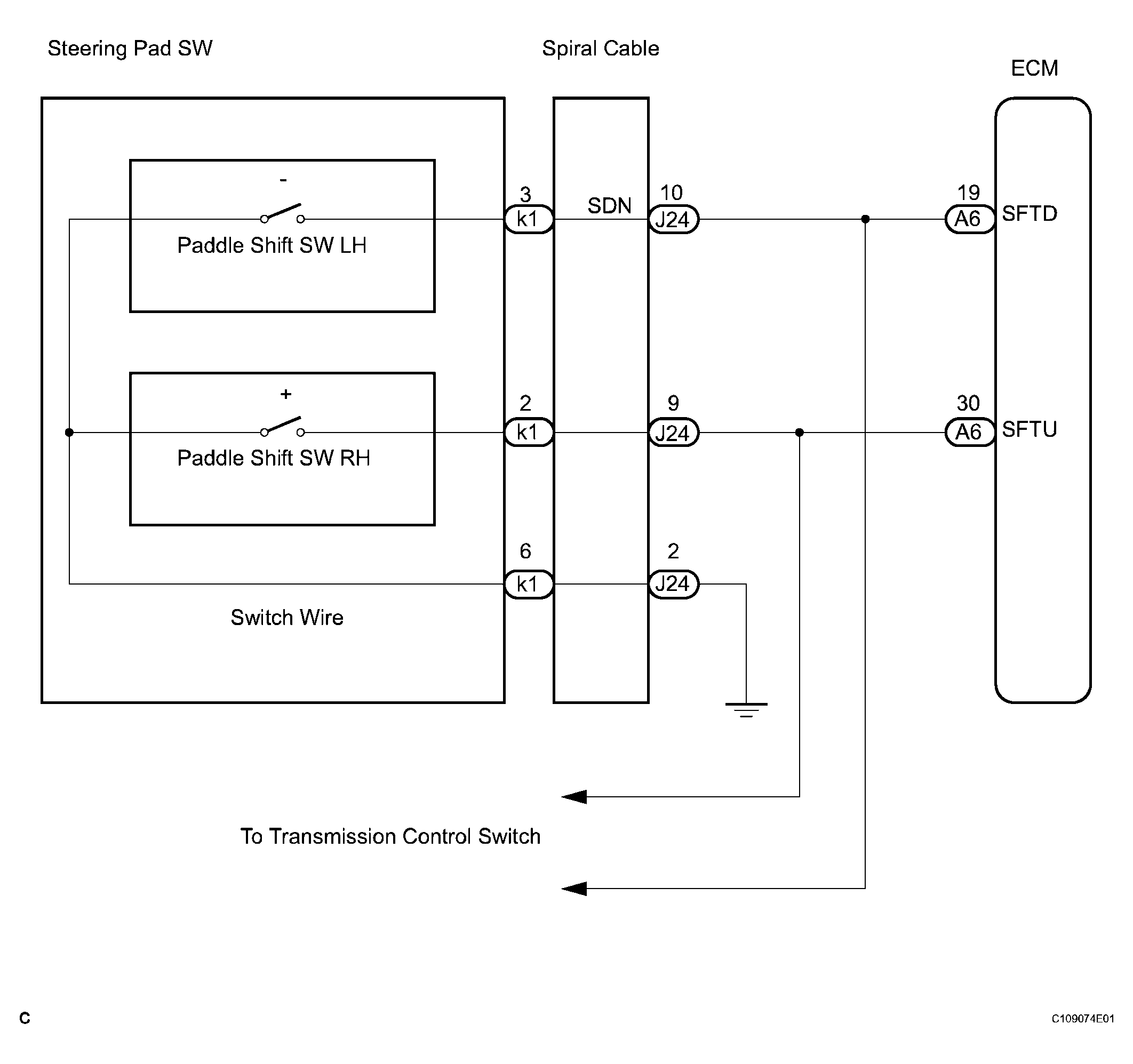

Fig 1: Wiring Diagram - Shift Paddle Switch Circuit
G04052952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE - BODY GROUND)
    1. Disconnect the steering pad switch connector and spiral cable connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      2 - Body ground Below 1 Ω
      Fig 2: Checking Spiral Cable - Body Ground
      G04052953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : GO TO NEXT STEP

  2. INSPECT SPIRAL CABLE SUB-ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      J24-2 - k1-6 Always Below 1 Ω
      J24-9 - k1-2 Always Below 1 Ω
      J24-10 - k1-3 Always Below 1 Ω

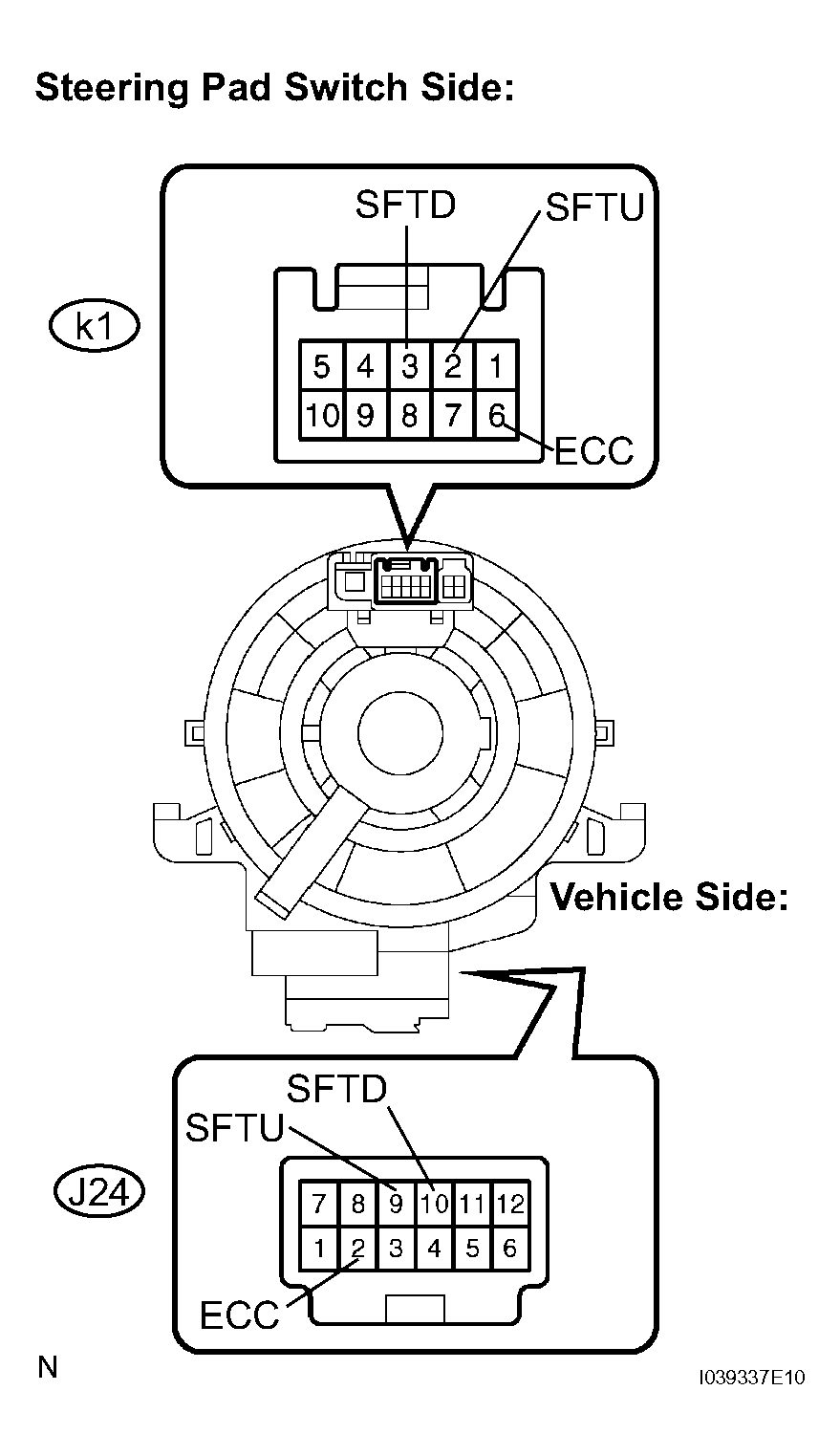

      Fig 3: Inspecting Spiral Cable Sub-Assembly
      G04052954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE SPIRAL CABLE SUB-ASSEMBLY

    OK : GO TO NEXT STEP

  3. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY
    1. Disconnect the switch wire connector from the transmission shift switch.
    2. Measure the resistance between each terminal when the paddle shift is moved to each position.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Paddle Shift Position Tester Connection Specified Condition
      Pull continuously "+" (Up shift) SFTU - ECC Below 1 Ω
      Release "+" (Up shift)   10 kΩ or higher
      Pull continuously "-" (Down shift) SFTD - ECC Below 1 Ω
      Release "-" (Down shift)   10 kΩ or higher

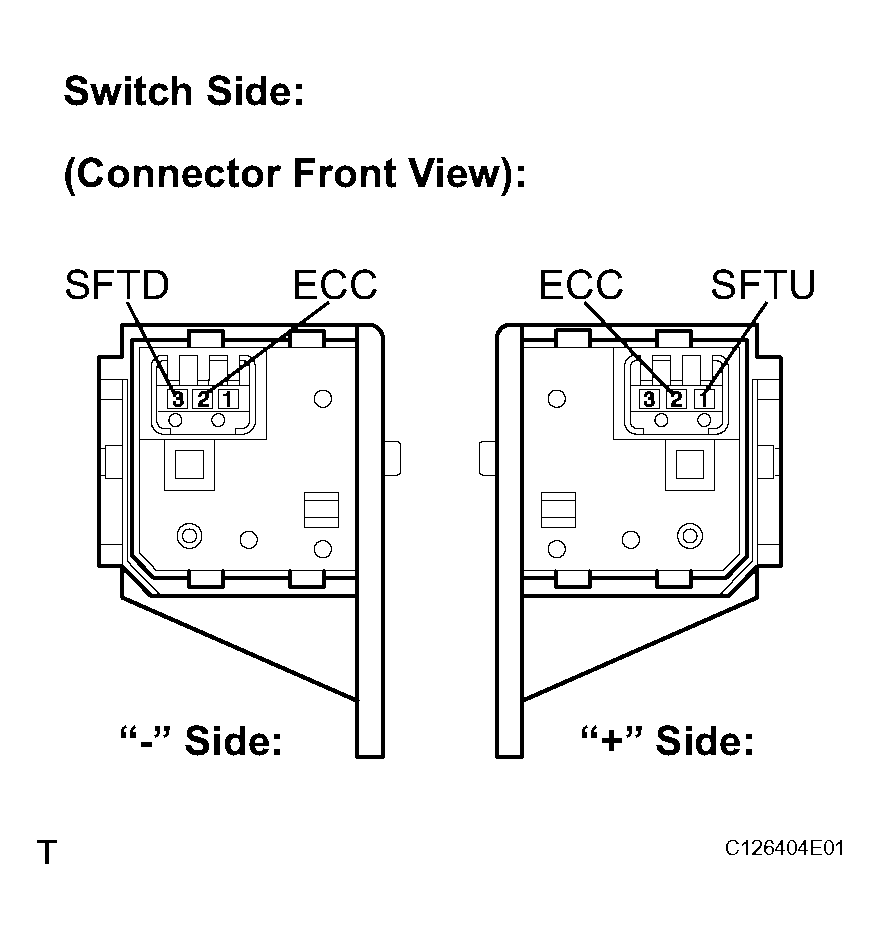

      Fig 4: Inspecting Transmission Shift Switch Assembly
      G04052955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE TRANSMISSION SHIFT SWITCH ASSEMBLY

    OK : GO TO NEXT STEP

  4. INSPECT SWITCH WIRE
    1. Connect the switch wire connector to the transmission shift switch.
    2. Measure the resistance between each terminal when the paddle shift is moved to each position.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Paddle Shift Position Tester Connection Specified Condition
      Pull continuously "+" (Up shift) 2 - 6 Below 1 Ω
      Release "+" (Up shift)   10 kΩ or higher
      Pull continuously "-" (Down shift) 3 - 6 Below 1 Ω
      Release "-" (Down shift)   10 kΩ or higher
      Fig 5: Inspecting Switch Wire
      G04052956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE SWITCH WIRE

    OK : GO TO NEXT STEP

  5. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE - ECM)
    1. Connect the spiral cable connector and steering pad switch connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below when the paddle shift is moved to each position.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Paddle Shift Position Tester Connection Specified Condition
      Pull continuously "+" (Up shift) A6-30 (SFTU) - Body ground Below 1 Ω
      Release "+" (Up shift)   10 kΩ or higher
      Pull continuously "-" (Down shift) A6-19 (SFTD) - Body ground Below 1 Ω
      Release "-" (Down shift)   10 kΩ or higher
      Fig 6: Identifying ECM A6 Connector
      G04052957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
