Automatic Transmission Unit: Components

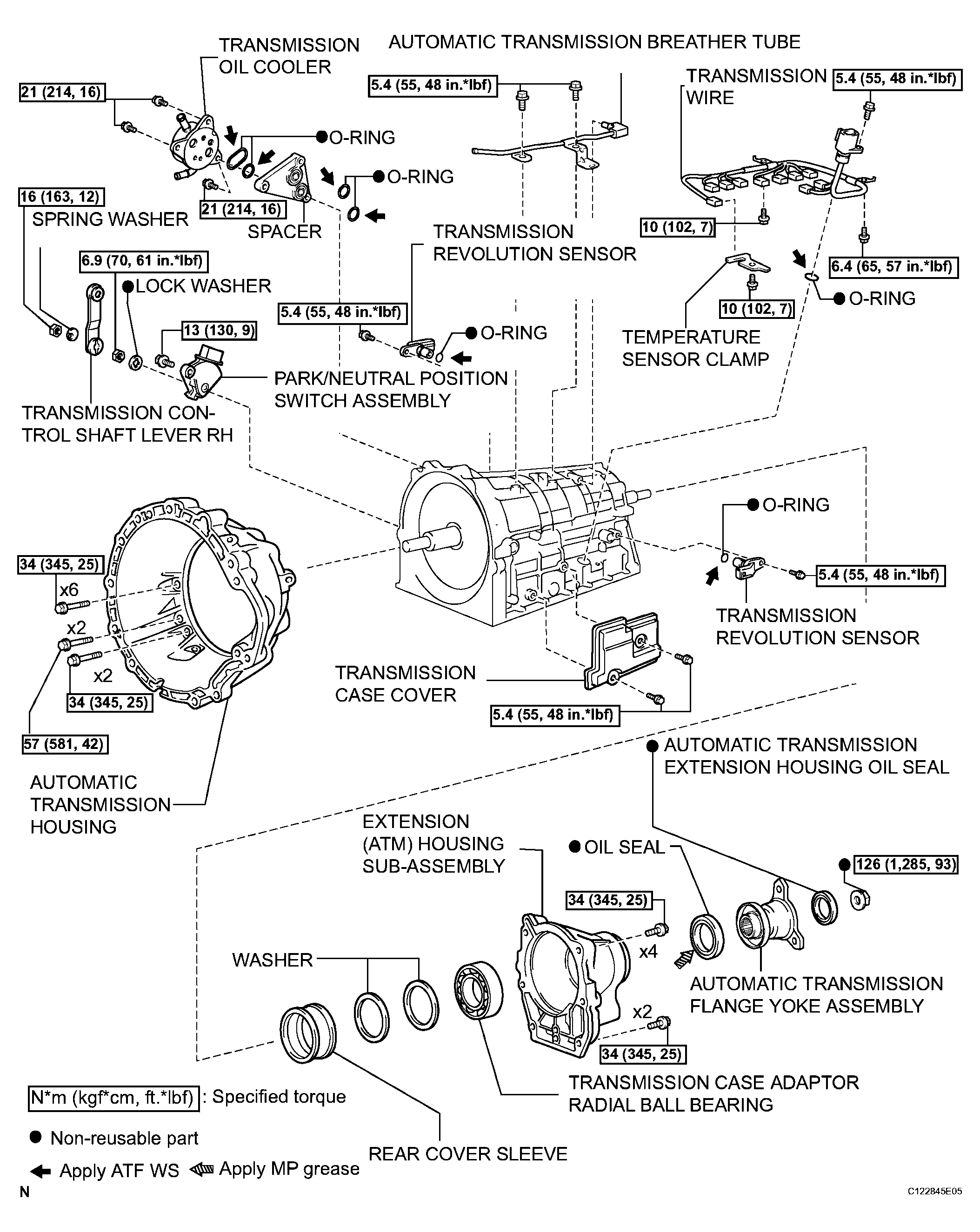

Fig 1: Automatic Transmission Unit Components With Torque Specifications (1 Of 5)
G04053140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

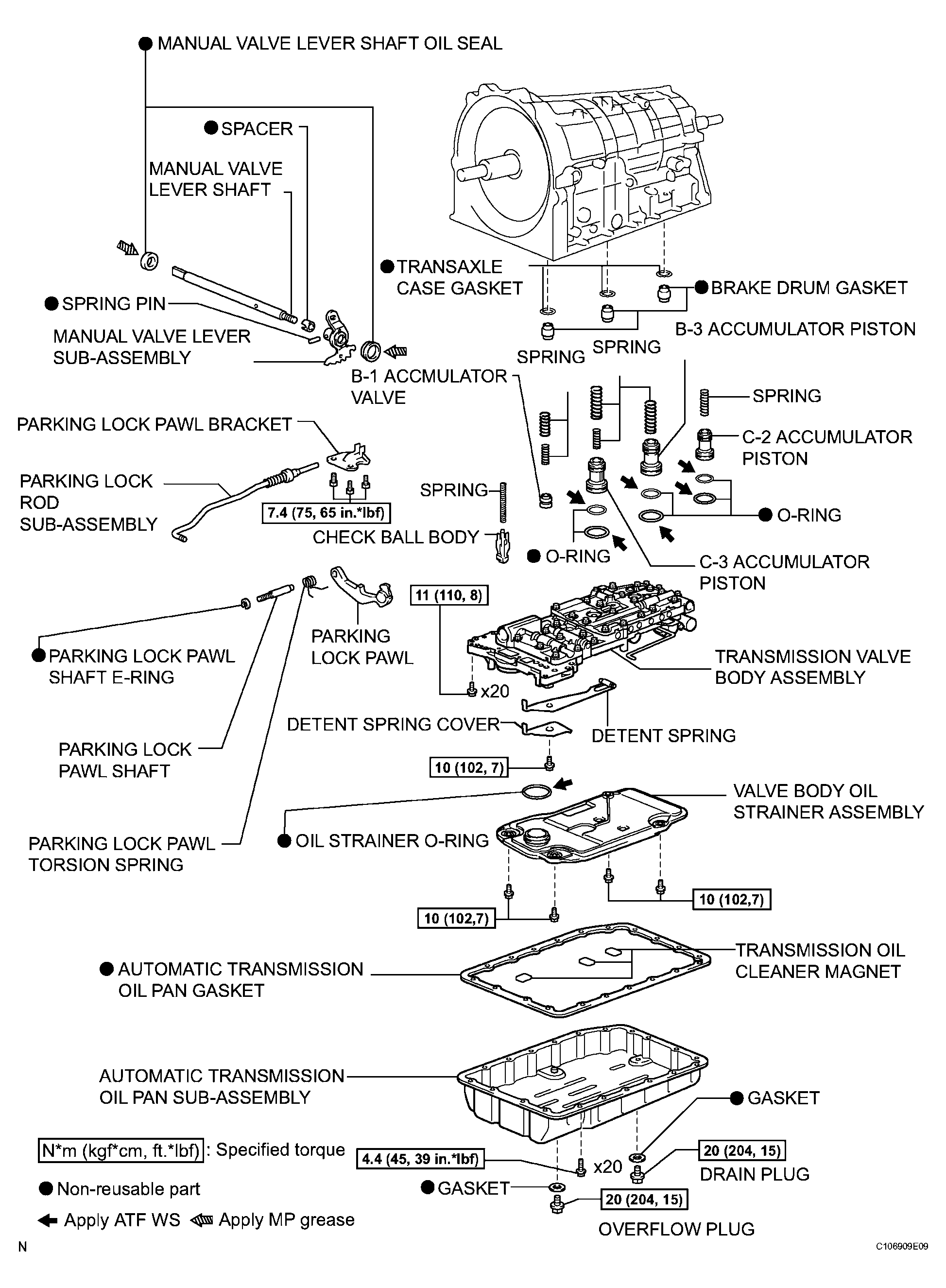

Fig 2: Automatic Transmission Unit Components With Torque Specifications (2 Of 5)
G04053141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

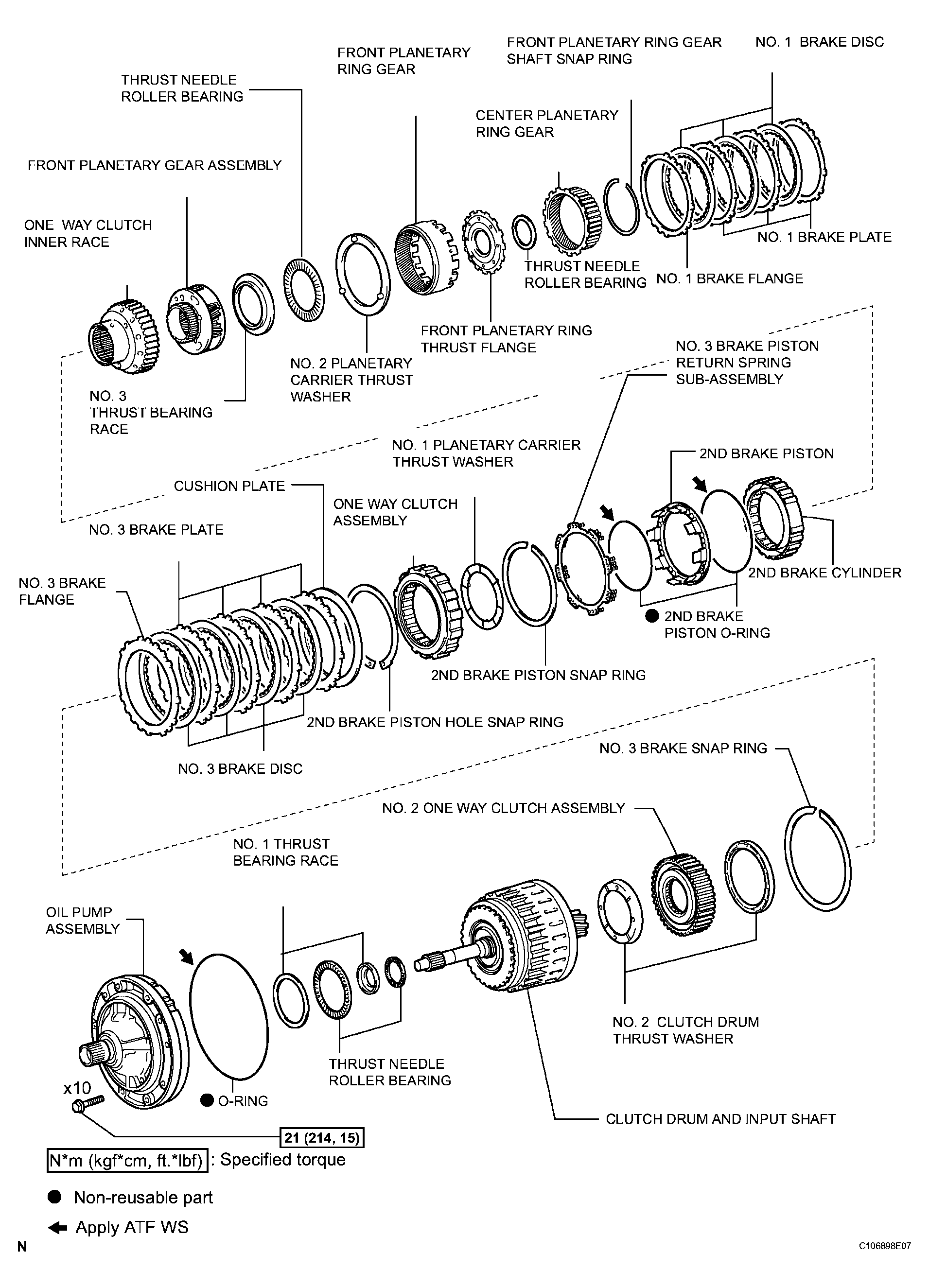

Fig 3: Automatic Transmission Unit Components With Torque Specifications (3 Of 5)
G04053142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

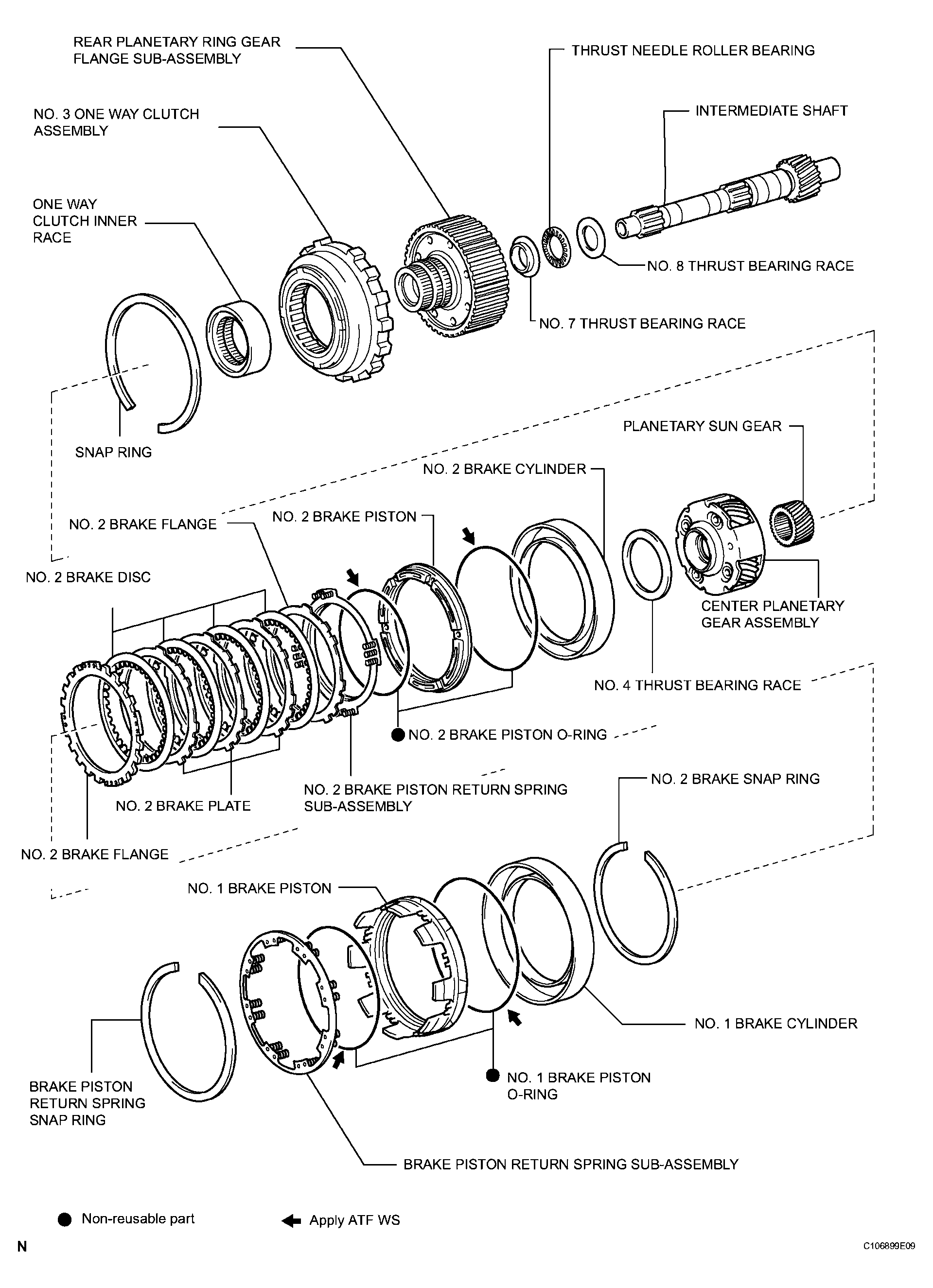

Fig 4: Automatic Transmission Unit Components With Torque Specifications (4 Of 5)
G04053143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

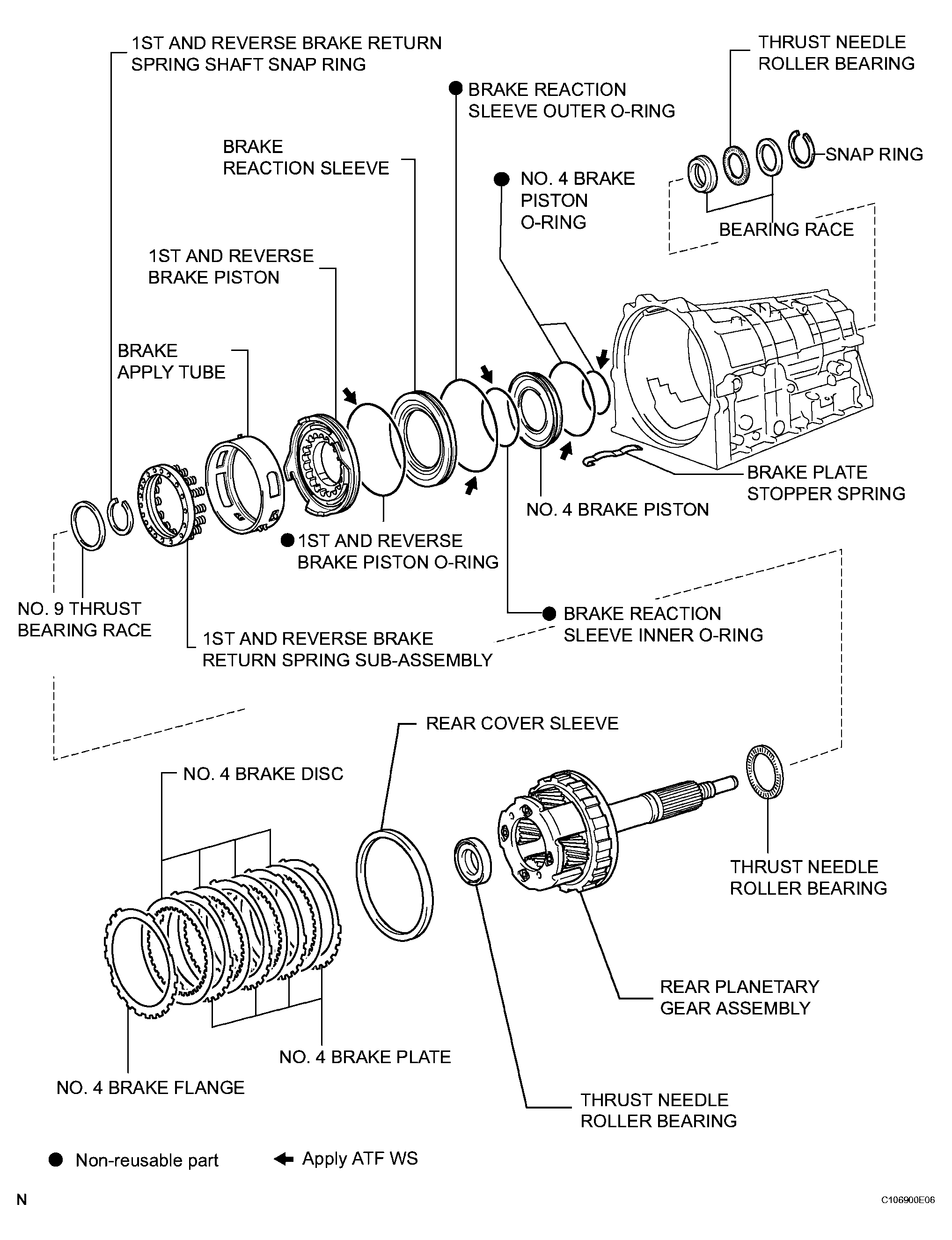

Fig 5: Automatic Transmission Unit Components With Torque Specifications (5 Of 5)
G04053144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
