Pattern Select Switch: Removal

REMOVE FRONT DOOR SCUFF PLATE LH (See REMOVAL )
REMOVE FRONT DOOR OPENING TRIM COVER LH (See REMOVAL )
REMOVE SIDE INSTRUMENT PANEL LH (See REMOVAL )
REMOVE SWITCH BASE
1. Disengage the 4 claws, and remove the switch base from the lower instrument panel finish panel.

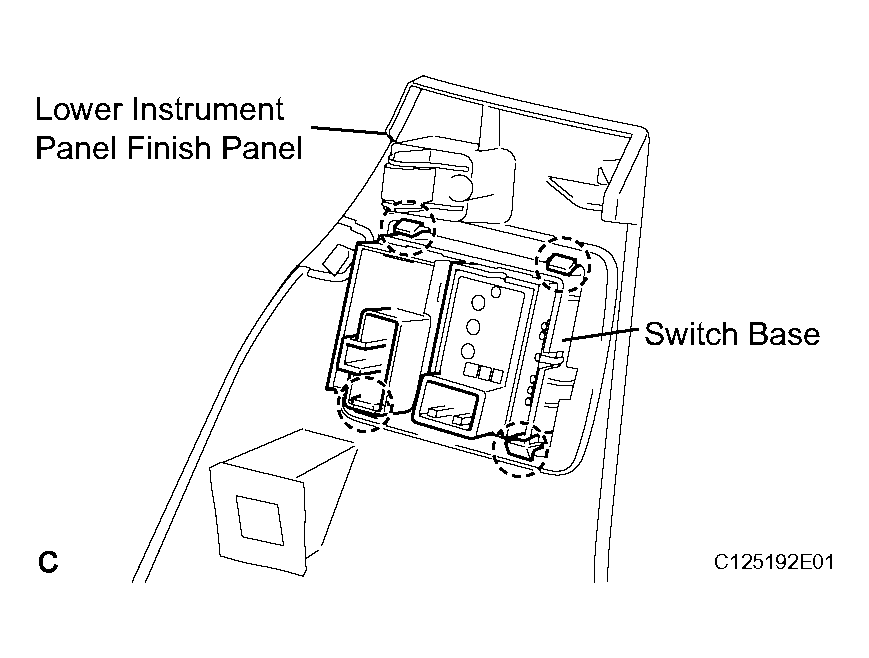

  Fig 1: Identifying Switch Base And Lower Instrument Panel Finish Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY
1. Disengage the 2 claws, and remove the pattern select switch from the switch base.

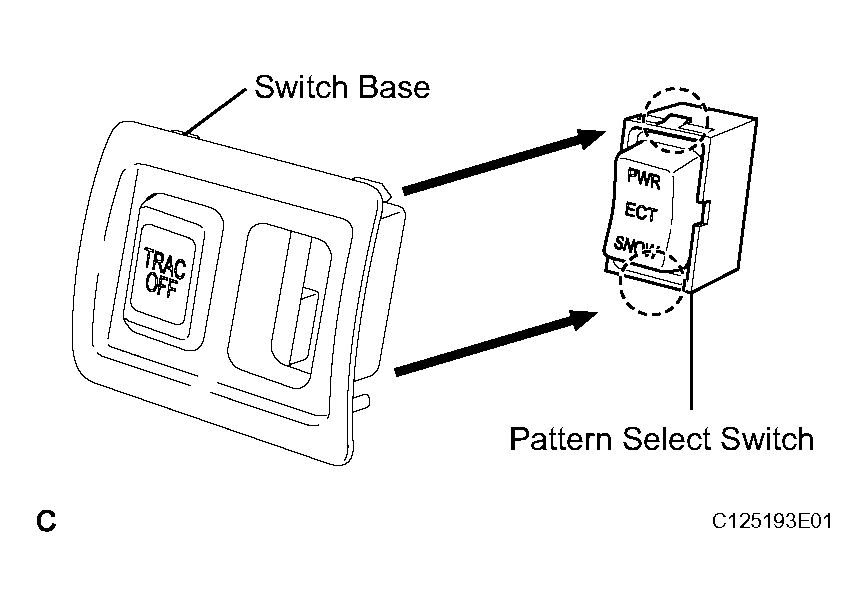

  Fig 2: Identifying Pattern Select Switch And Switch Base
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
