Shift Lever Assembly: Components

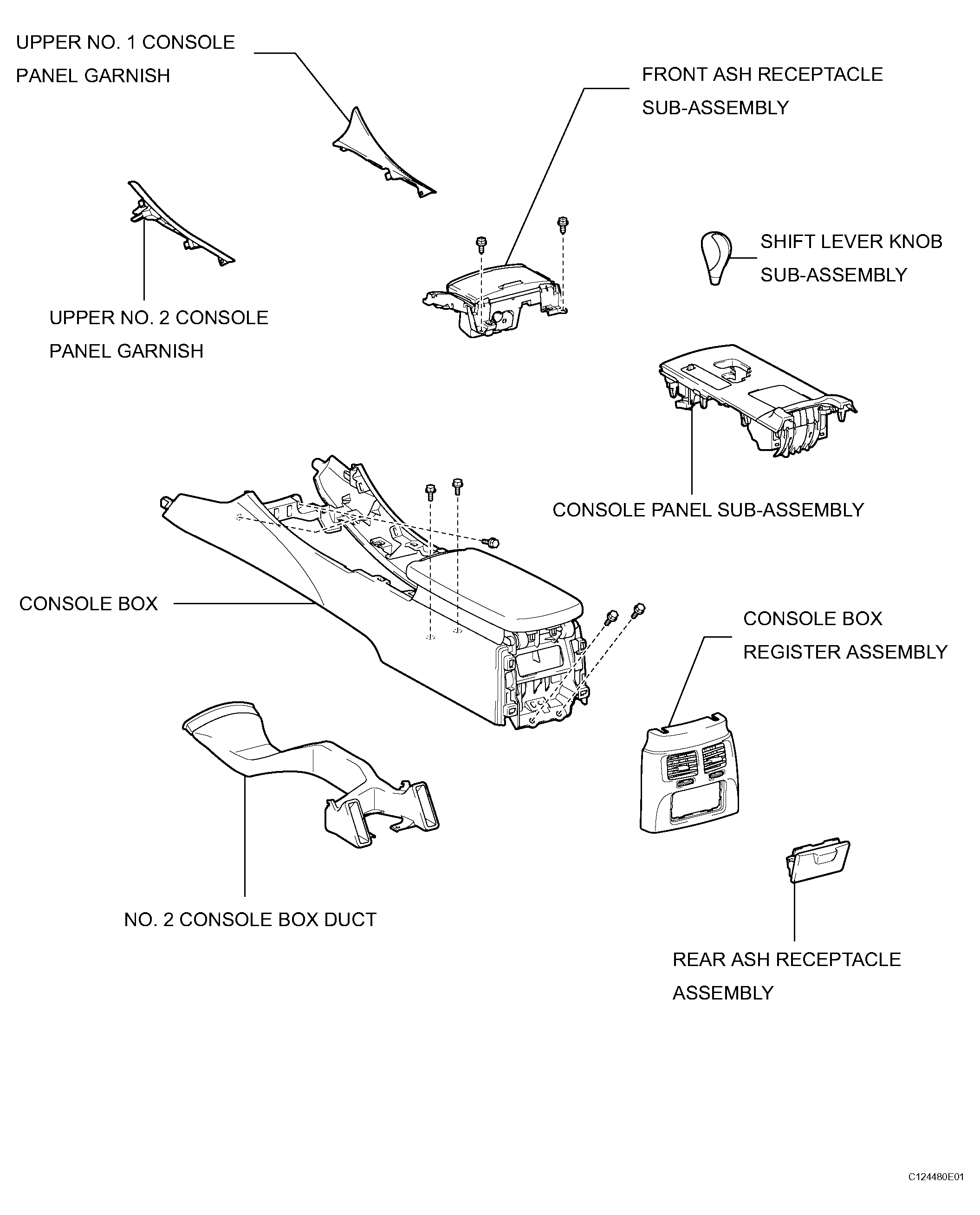

Fig 1: Shift Lever Assembly Replacement Components With Torque Specifications (1 Of 3)
G04053069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

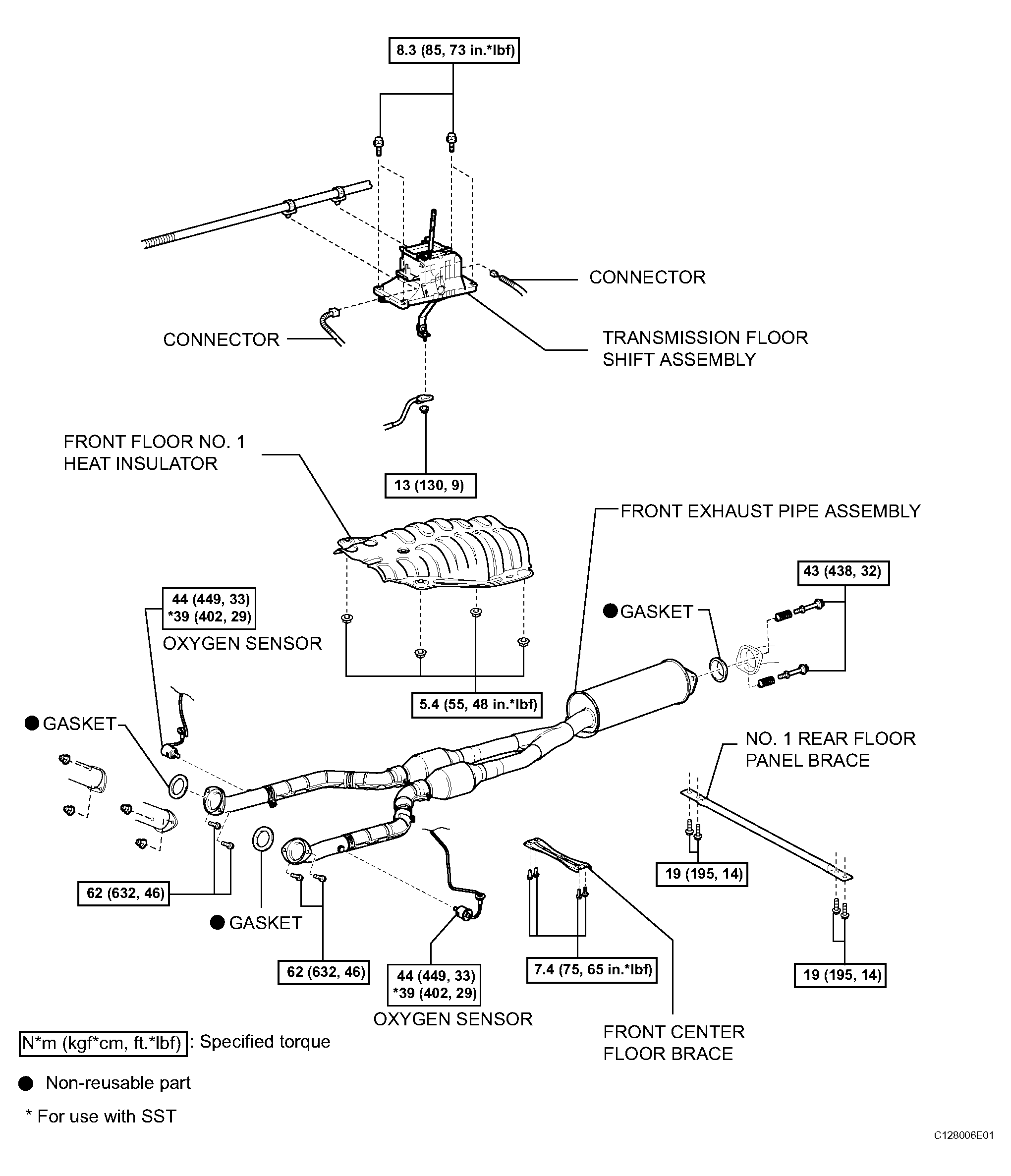

Fig 2: Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 3)
G04053070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

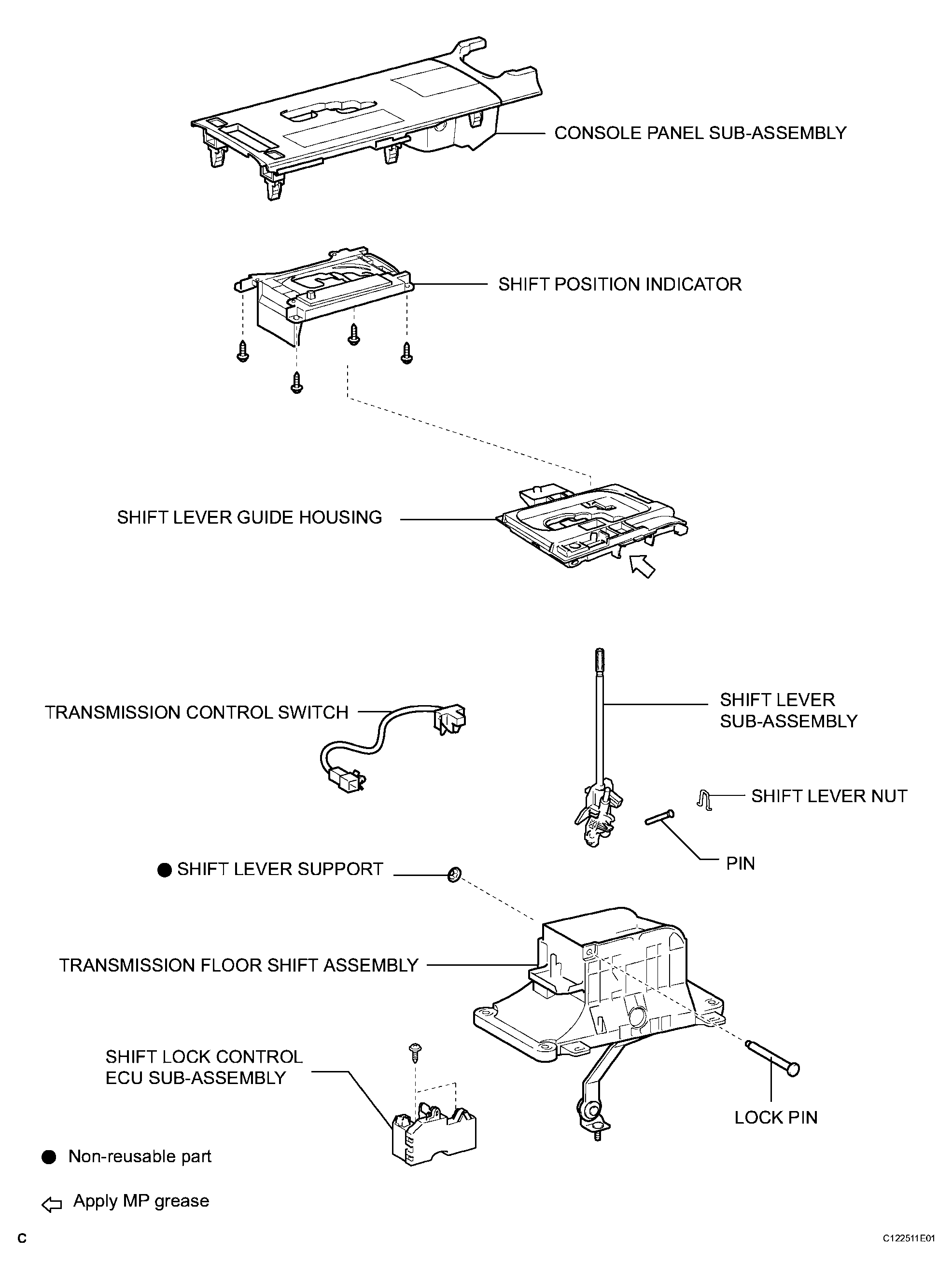

Fig 3: Shift Lever Assembly Replacement Components With Torque Specifications (3 Of 3)
G04053071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
